1Tenth - Aluminum BTA and 4 Link Adapter for COMPOSITE F10 Portal

DOES NOT FIT ALUMINUM HOUSING F10.  NO RETURNS FOR THAT REASON.  FITS COMPOSITE ONLY

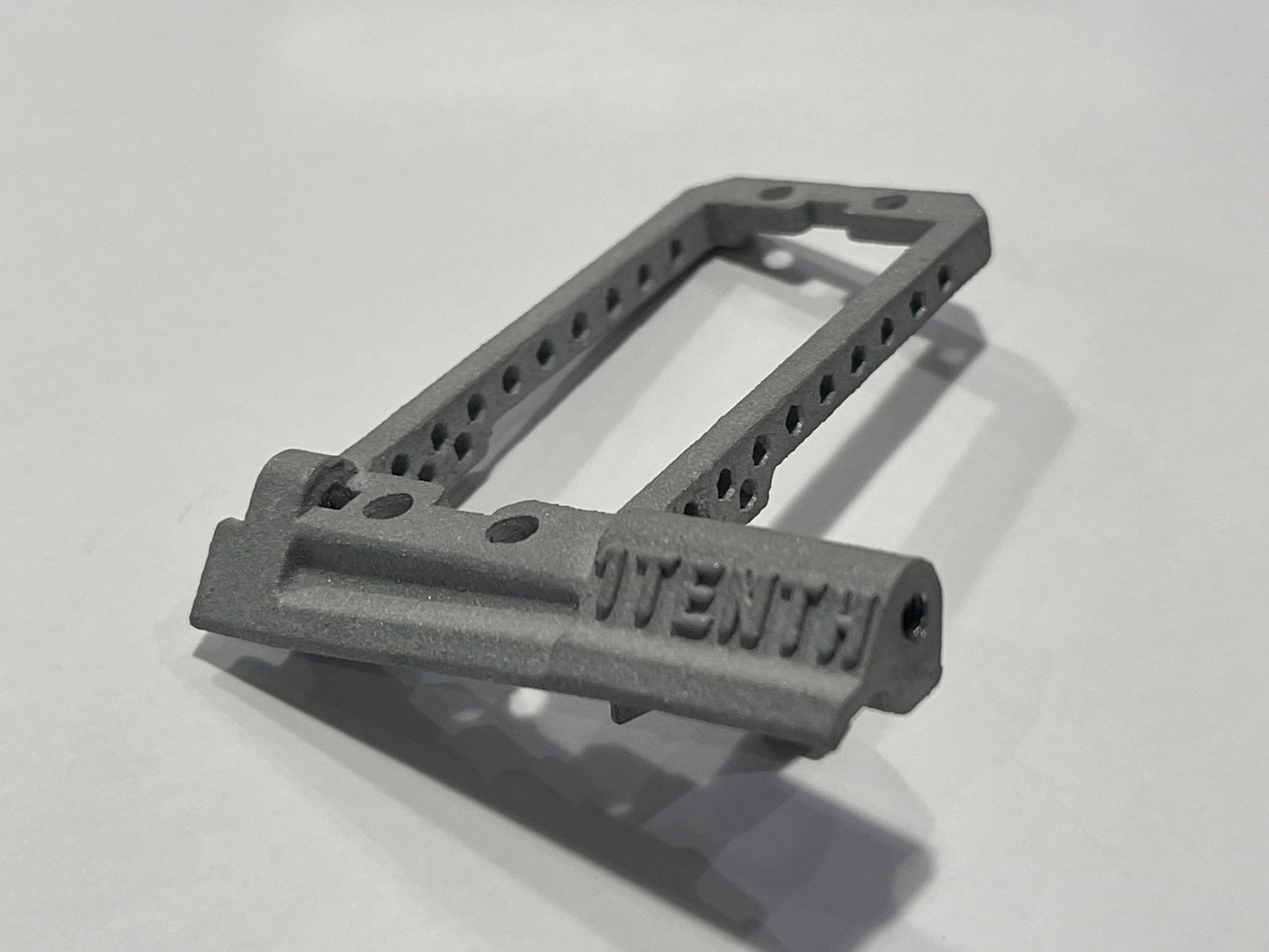

1Tenth Aluminum BTA Mount for Vanquish F10

The original aluminum BTA mount for the F10 that helped kick off the RTR BTA 4 Link revolution.  This was designed for those wanting lightweight rigidity. Gets the servo low and forward.

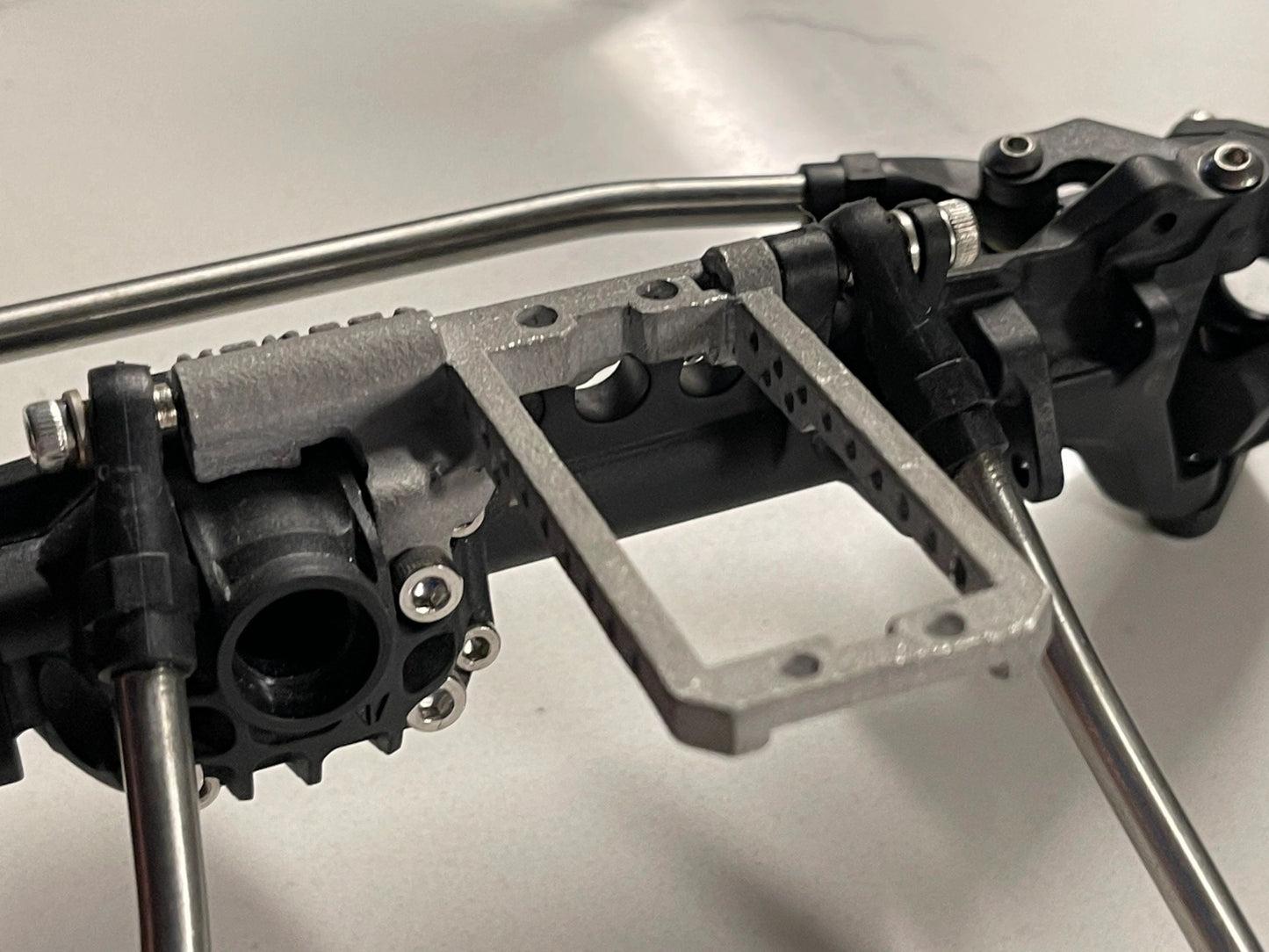

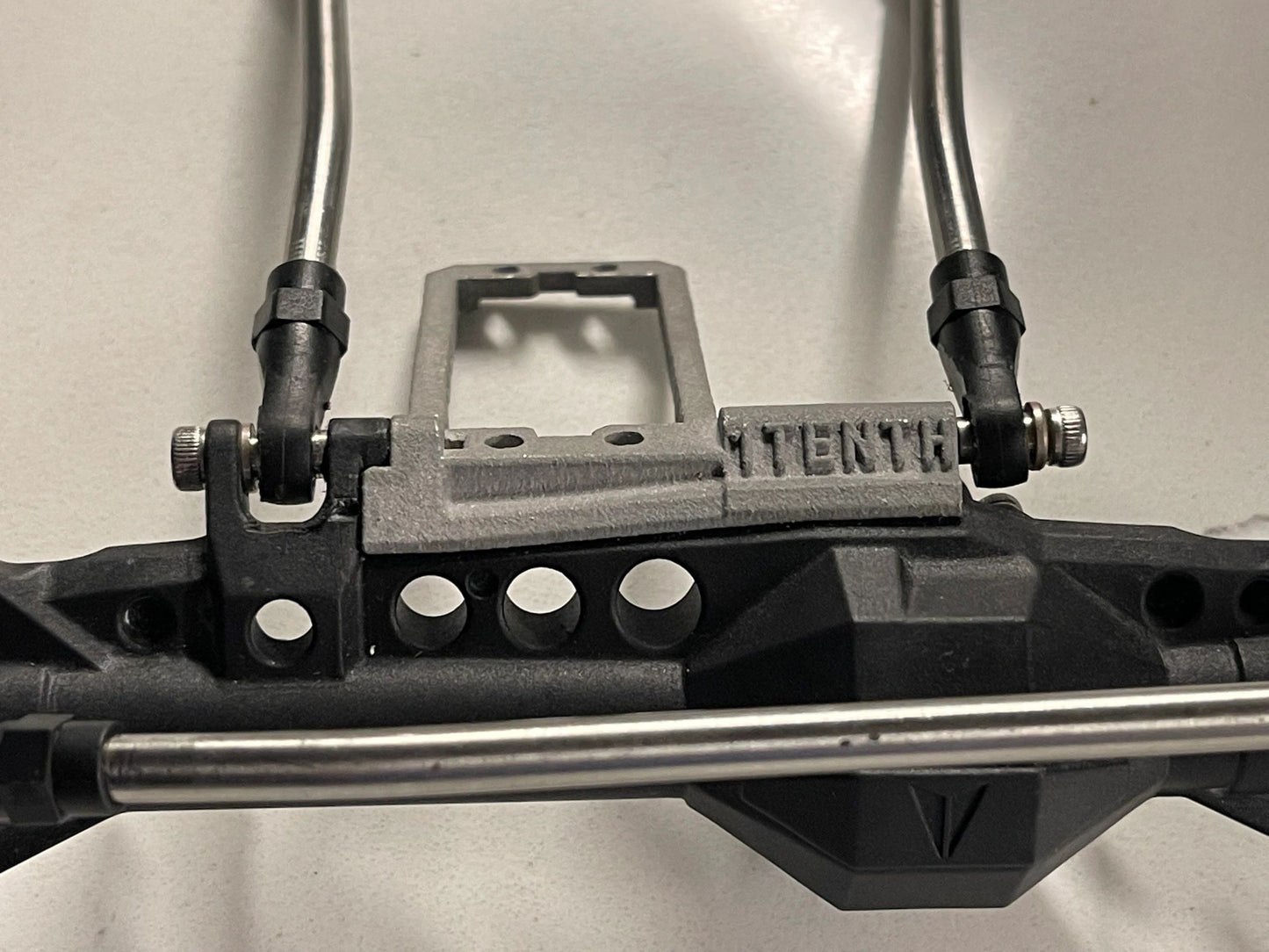

Compared to the OG of BTA mount from BOCO this one positions the servo 2MM higher and 1.9MM farther back.  It still utilizes the existing 3 link mount and a screw on the back of the pumpkin for mounting on the axle. Adding a 2nd upper link spot. for a 4 link setup.  This mount hugs the truss close, ensuring stability with only 2 screws.

As much respect as I have for Vanquish...people were buying these to replace broken VP BTA mounts.

All necessary hardware included to mount on the axle

MATERIAL & CONSTRUCTION

• Material: AlSi10Mg
• Manufacturing: DMLS or SLS additive
• Finish: Flat semi granular
• Weight: ~15g

Dimensions

• L-62mm
• W-86mm
• H-21mm

This mount CAN fit the composite straight axle if you sand down the nub on top of the housing.

If you want a raw aluminum look you can use a wirewheel or other light abrasive to take away the top granular layer.

NOT INTENDED FOR A STOCK VS410 setup. Experienced builders on custom rigs. Fits composite axle only. Can be made to fit others with dremel work but by default only the composite portal.

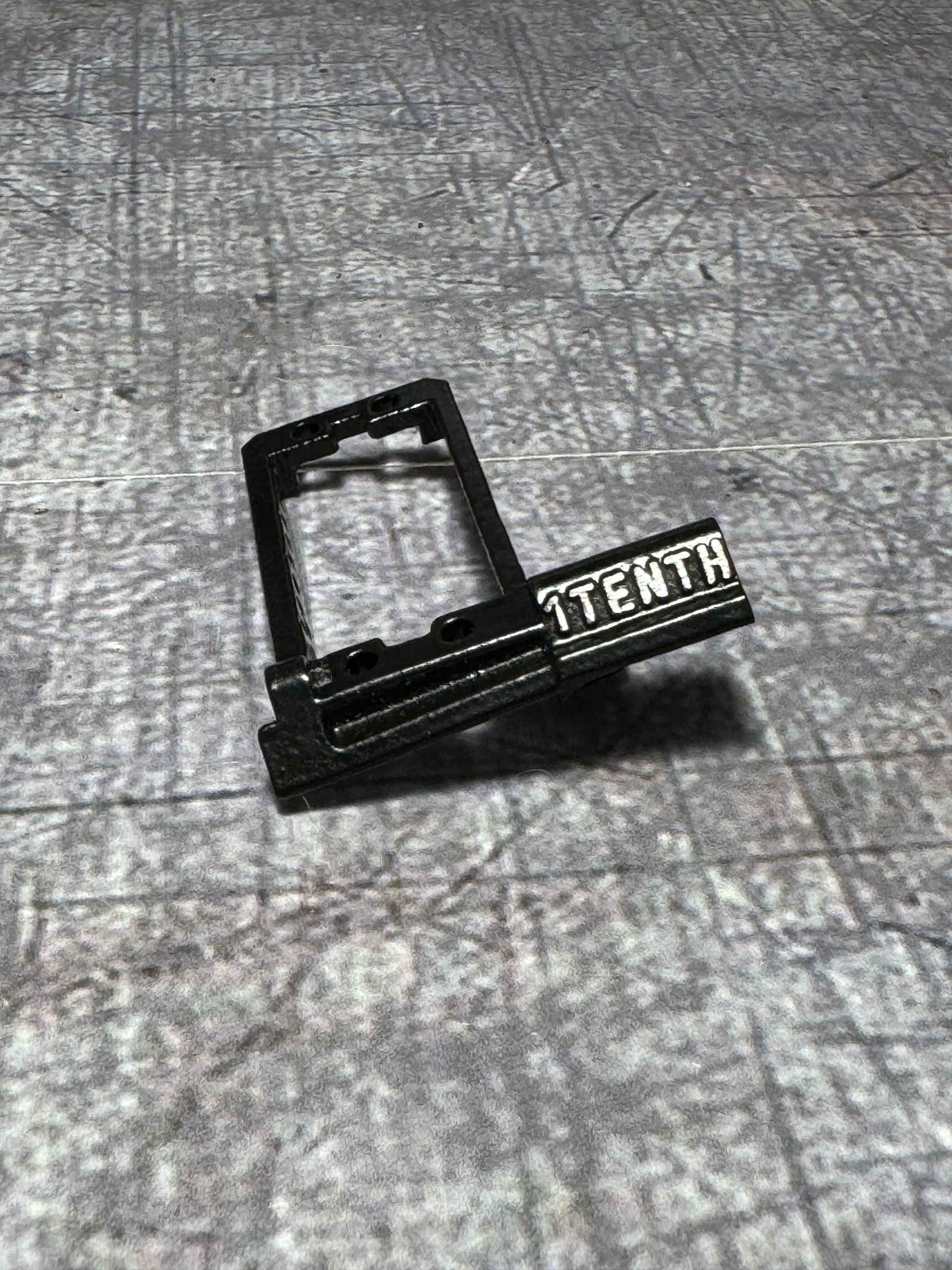

Black option is painted and durable enough for a servo mount.  If you want a more durable or custom coloring I'd suggest the raw version and powder or Cerakote.
