1Tenth - Aluminum BTA for Axial AR45P

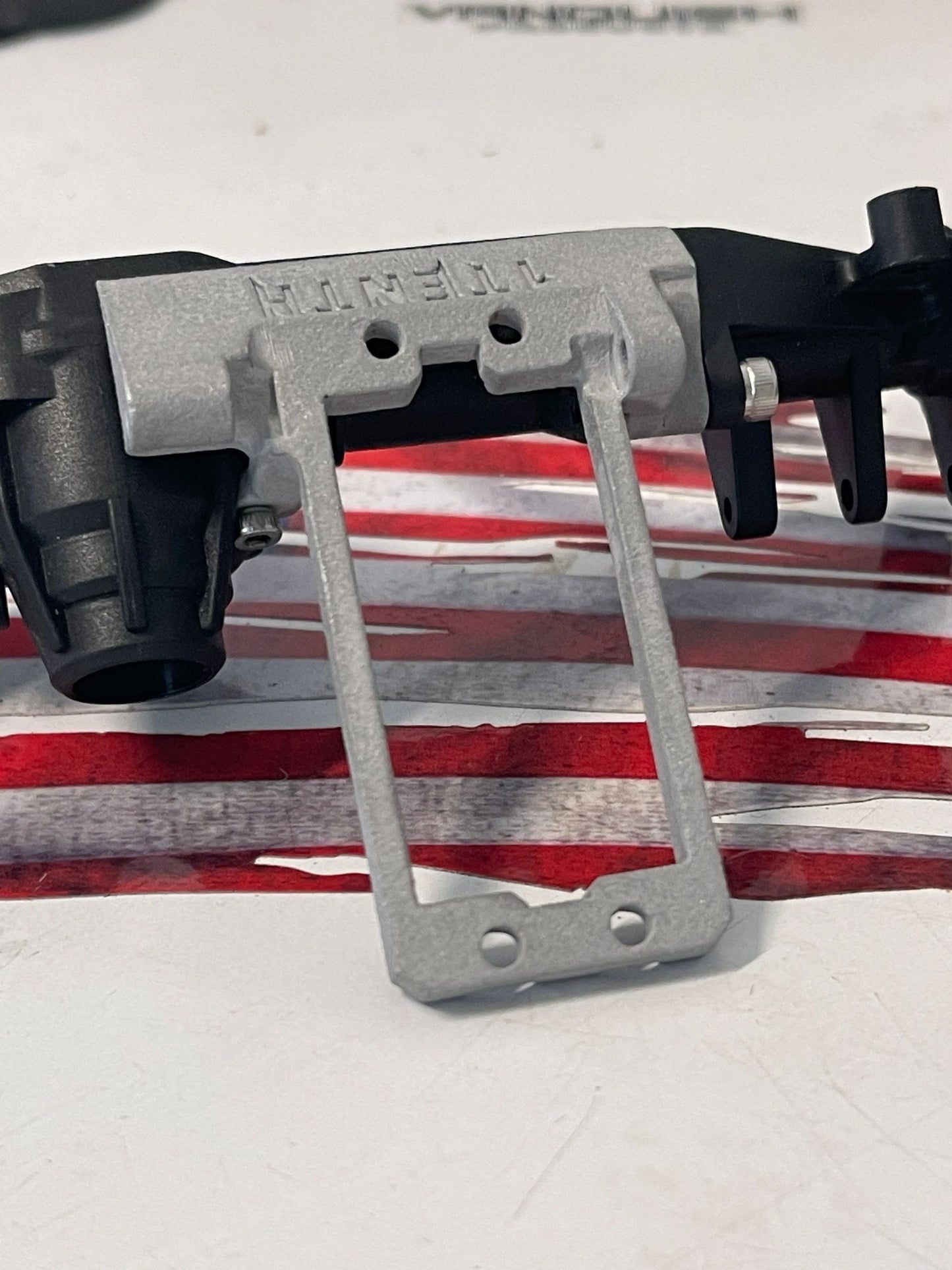

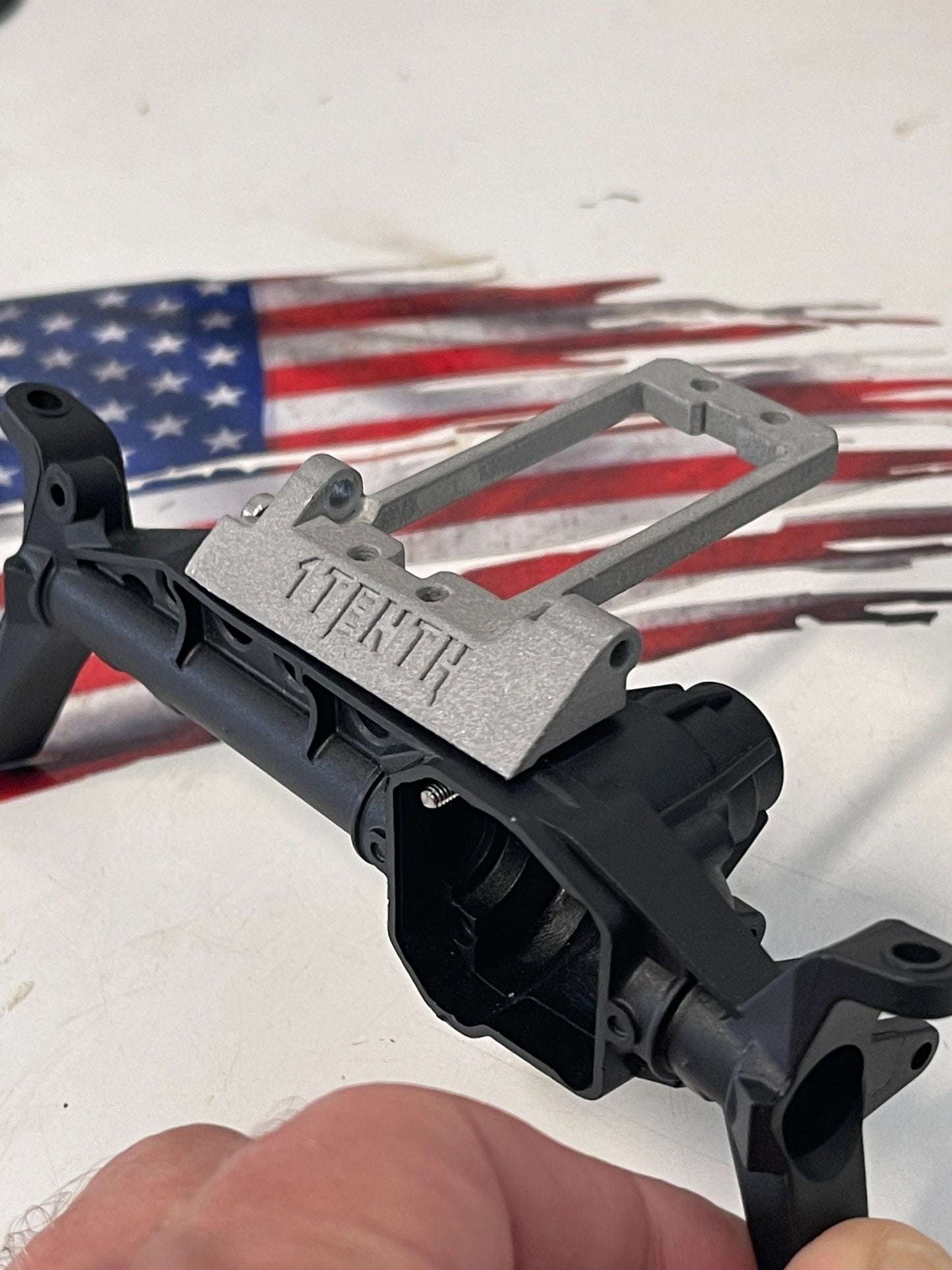

1Tenth Aluminum BTA servo mount and 4 link adapter for Axial AR45P

Does NOT fit the AR45S Straight Axle or the Treal 45P

When you want you servo about as low as possible - you need it behind the axle and provides a spot for the 2nd upper link.  Utilizes a screw on the back of the pumpkin and the original upper link mount.  Raises upper link mount about 10mm vs stock.

Similar to the BOCO RC version this one is about 1/2 the weight - designed for those wanting light weight rigs or already get your front weight bias from brass or other means.

MATERIAL & CONSTRUCTION

• Material: AlSi10Mg
• Manufacturing: DMLS or SLS additive
• Finish: Flat semi granular
• Weight: ~19g

Dimensions

• L-65mm
• W-49mm
• H-26mm

Comes with all hardware required to mount on axle.

Not intended for stock setups as a plug-n-play endeavor - it has been done though.

You'll need a custom drag link and upper links - these will all depend on your drivetrain and chassis. The stock link should work with a couple twist of the link ends to adjust length. Intended for experienced builders

Black option is painted
