1Tenth - BMF1095 Direct Power 16.8V 25T Steel Gear Servo

WP (IP67) · STL · BL · DP (Direct Power)

WHAT IT IS
A 25T spline, IP67-waterproof, standard-size direct-power servo with
brushless motor and stainless steel gears — built to deliver power
and speed for even the heaviest 1/10 rigs and plenty of grunt for
1/8 buggies and truggies too.

IDEAL FOR
- Heavy 1/10 scale rigs and crawlers
- 1/8 buggies and truggies
- Builds that need full-size torque at a value price

WHY YOU WANT IT
When you need all the power and speed at a value price, the BMF1095
delivers. Over a year of development and real-world testing —
including time on a rock bouncer running SCX6 axles — proved this
servo is up to the heaviest 1/10 rigs. Stainless steel gears, ball
bearings, and a full aluminum case built to last.

POWER REQUIREMENTS
- Operating Voltage: 8.4V - 16.8V (direct power)
- Power Source: Direct from battery balance plug — must NOT be
  powered through the BEC/signal feed
- BEC Required: N/A — direct power
- Overvolt Warning: 16.8V max — overvoltage may void warranty

SPECIFICATIONS
- Stall Torque: 55kg-cm @ 8.4V, 85kg-cm (1180oz-in) @ 16.8V
  [TBD — verify intermediate voltage points at 12.8V and 15V]
- Operating Speed: 0.150sec/60° @ 8.4V, 0.080sec/60° @ 16.8V
  [TBD — verify intermediate voltage points]
- Motor Type: Brushless
- Gear Material: Stainless steel
- Case Material: Full aluminum
- Bearings: Ball bearings
- Output Spline: 25T
- Waterproof Rating: IP67
- Size: 40x20x40.5mm
- Weight: 94g

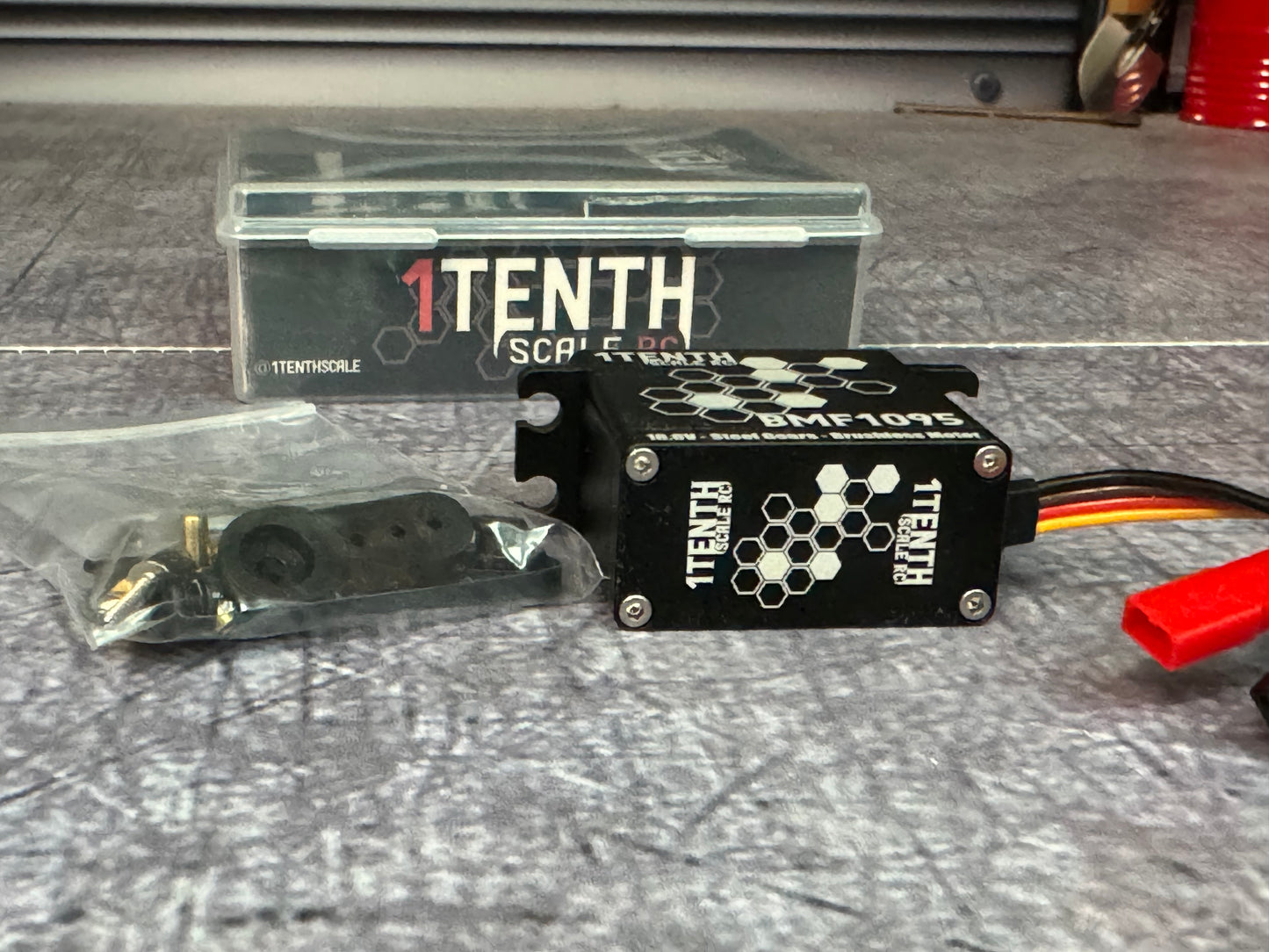

WHAT'S IN THE BOX
- BMF1095 servo

INSTALLATION NOTES
Direct-power servo — must be powered from a battery balance plug,
NOT the BEC/signal feed. 16.8V maximum input — overvolting may
void warranty. If you submarine your rig for extended periods,
remove the bottom cap and let the servo air dry just in case.

COMPATIBILITY
- Standard size
- Suggested Servo Mounts: Browse our 1Tenth and BOCO RC standard-size
  servo mount collections for your specific axle
- Required Servo Horn: 25T spline

NOT QUITE WHAT YOU NEED?
- Low-profile build (behind-axle mounts) → 1Tenth BMF1095L (same
  power, low profile)
- Budget-friendly entry option → 1Tenth BMF695 (4S, lower torque)
- Premium "lifetime gears" upgrade → BOCO Berserker (75kg)

WARRANTY
1 year bumper-to-bumper warranty (electronics and gears included).
