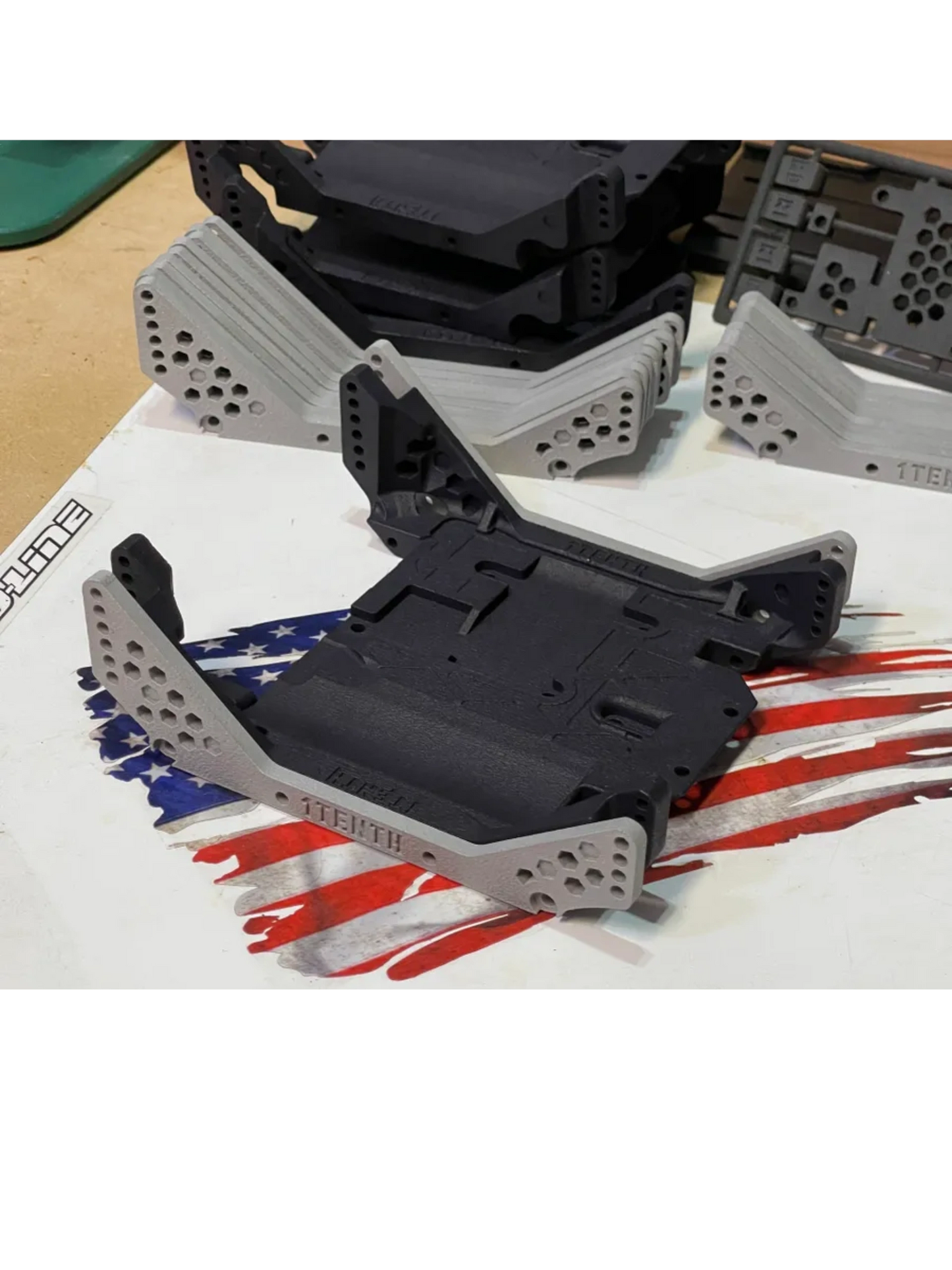

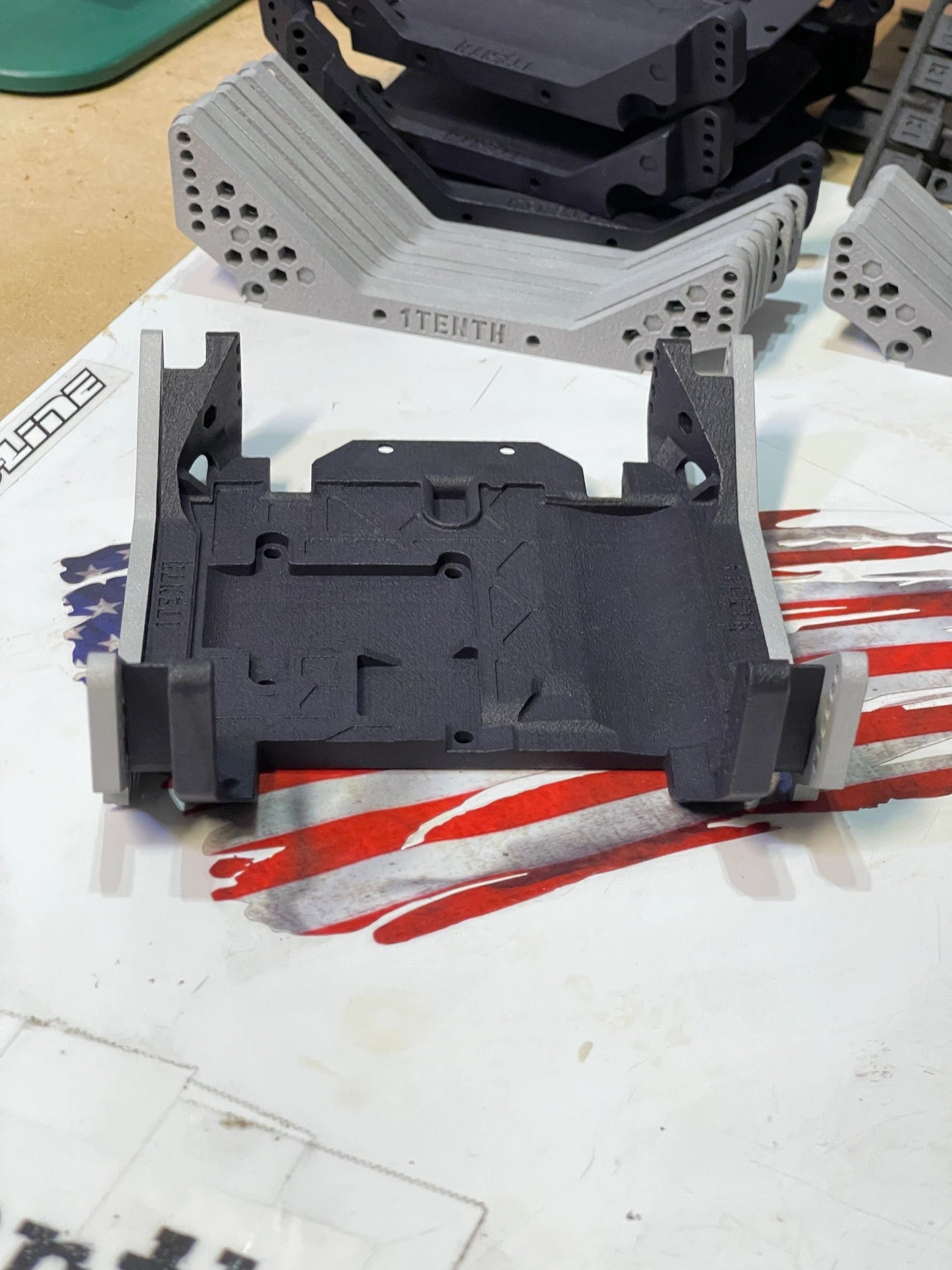

After multiple revisions and months of testing by team drivers.... 1Tenth High Clearance skid for the Axial Ryft platform is designed to give you better performance and more options.
With semi centered and wide lower link mount options for both front and rear you can get your rig dialed in just the way you like it including using a leading arm setup. Or for the crawlers you can triangulate a little more and utilize some high clearance links with axle mounted shocks. Lots of options...

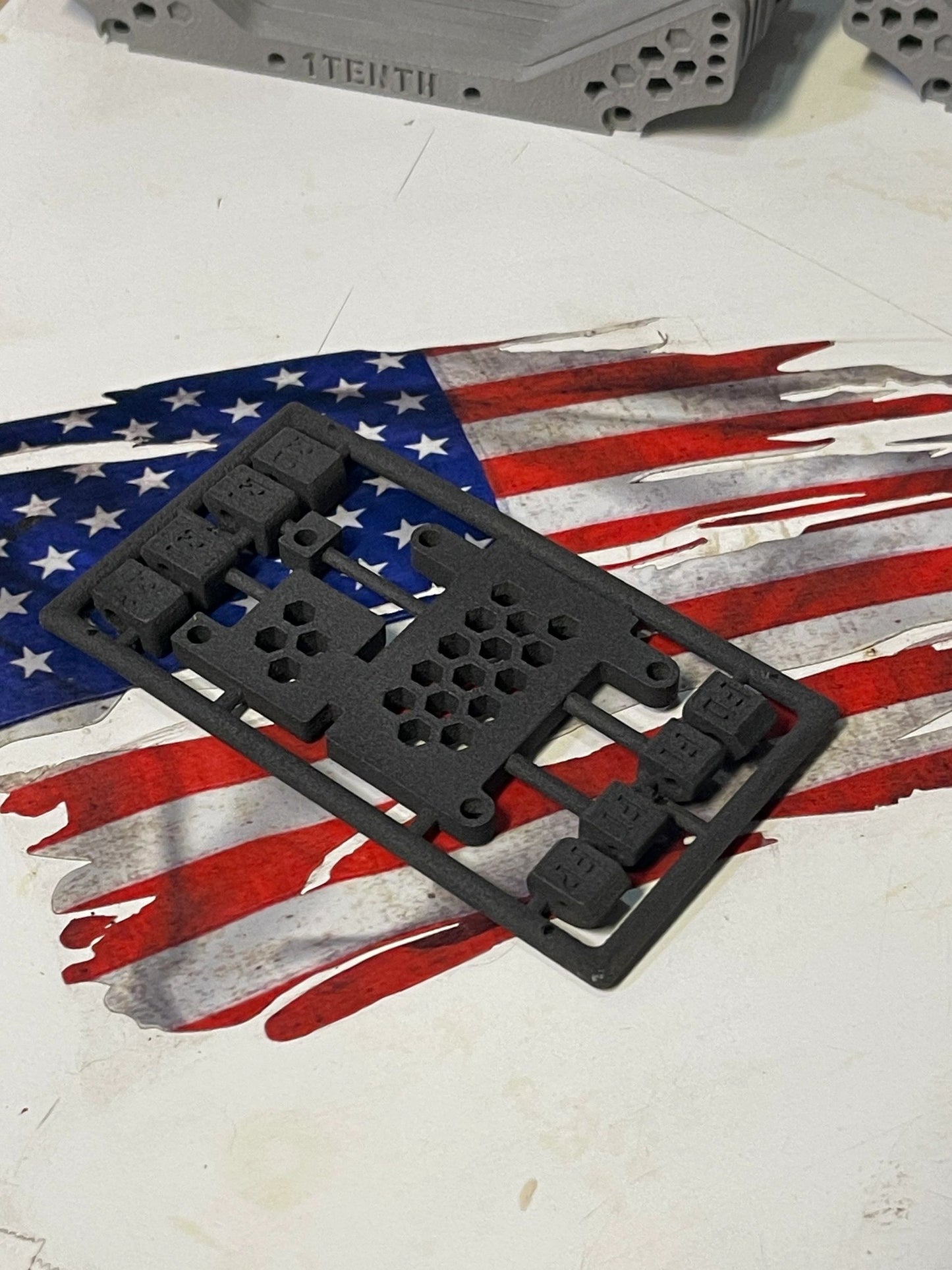

The transmission mounts ~2MM higher than stock position and keeps about the same amount of room for the motor. To accommodate larger motors you can add the optional parts tree that will come with risers for the transmission and some fillers for any unused lower links mounts.

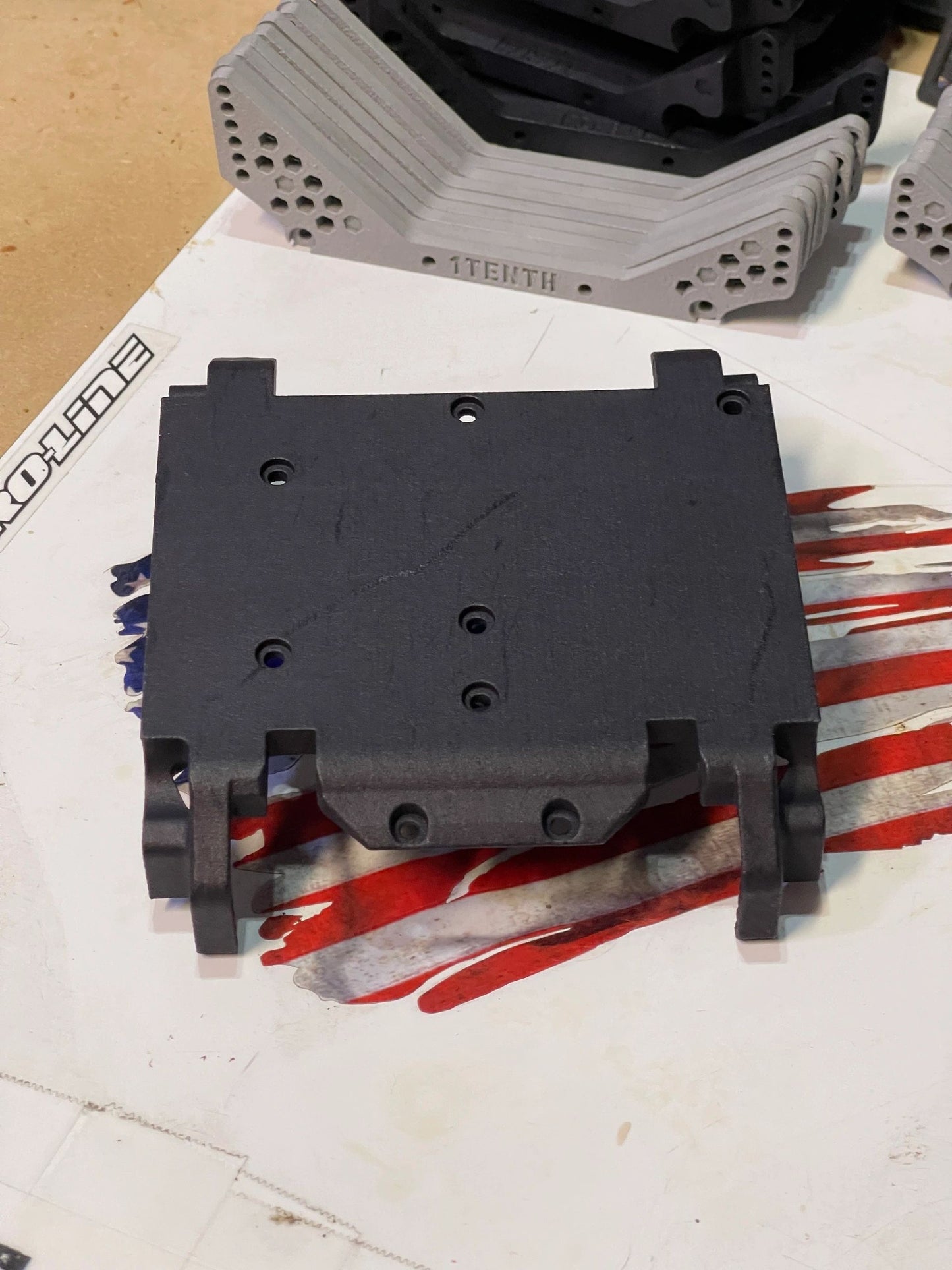

The bottom of the skid sits flush with the bottom of the chassis. The skid has provisions for the factory receiver box but its NOT in the same position as stock. If you intend to use the received box you'll need to do some DIY'ing to get everything to fit.

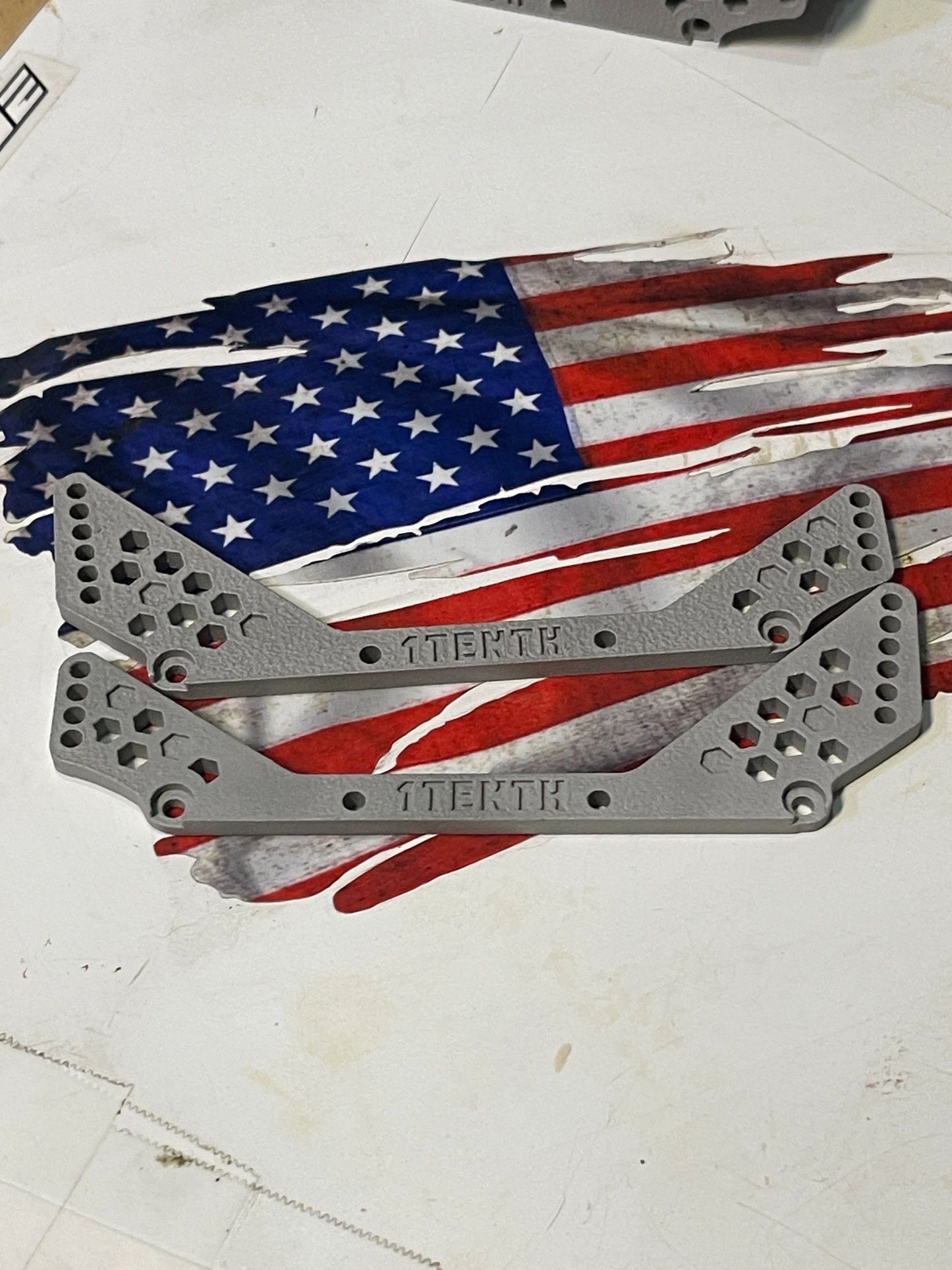

Order comes with Nylon Center Skid and 2 x Aluminum Outer Plates and 90 day warranty.
Working on hardware kits but nothing too special needed. Some minor clearance or tweaking may be necessary depending on your chassis or suspension/link setup.
