1Tenth- Aluminum SOA Traxxas TRX4 Portal

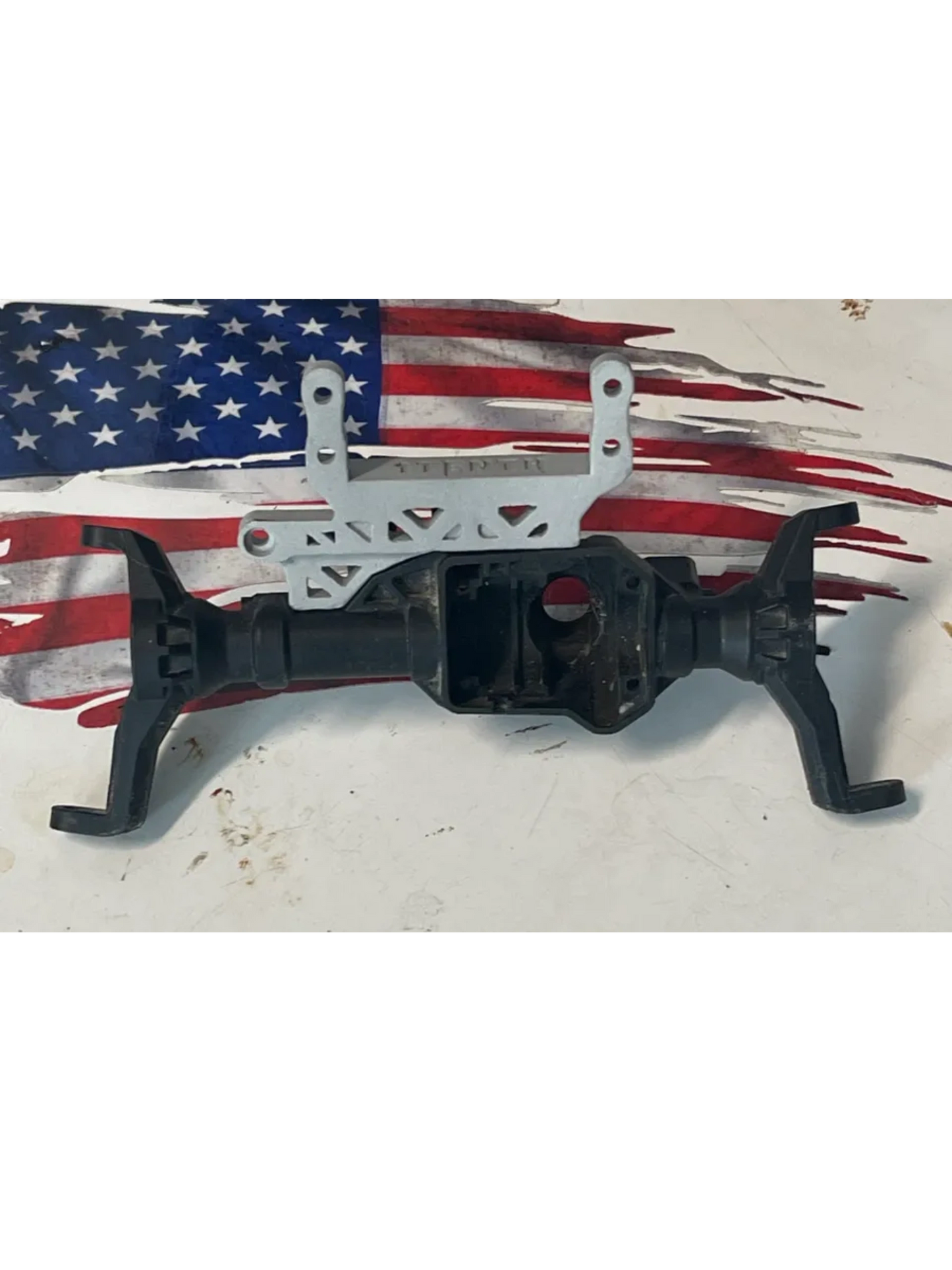

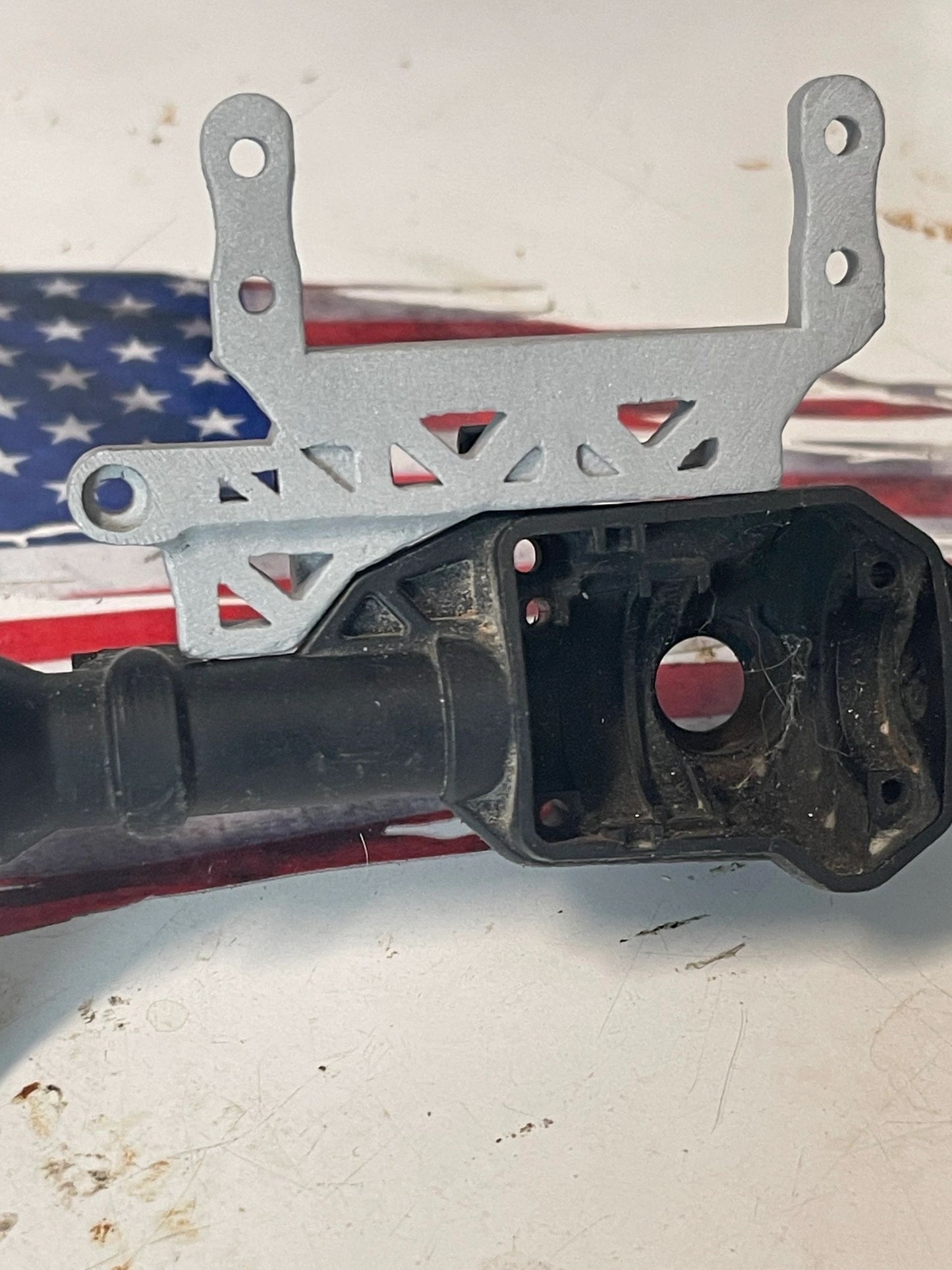

1Tenth- Aluminum SOA & 4 Link adapter for Traxxas TRX-4 Portal

Does NOT fit Treal housing for TRX4 or other brand TRX4 axles unless they're exact duplicates of OEM Traxxas.

The final iteration of the original TRX4 Portal SOA and 4 Link adapter has gone Aluminum. Similar to the older composite model that helped spark the resurgence of 4 linked RTR, but slight tweaks for the new material and process. SOA uses the panhard mount to brace.

This mount allows you to move your servo down onto the axle for improved center of gravity and the ability to ditch your panhard setup and go 4 link. Traxxas did a really good job with the suspension geometry but any 3 link with panhard with have bump steer and/or axle sway as the suspension articulates. This can cause the rig to get unbalanced in extreme situations. Comes with all necessary hardware to mount on the axle.

MATERIAL & CONSTRUCTION

• Material: AlSi10Mg
• Manufactring: DMLS or SLS additive
• Finish: Flat semi granular
• Weight: ~20g

Dimensions

• L-69mm
• W-15mm
• H-49mm

NOT Intended for Stock Chassis setups. It has been done (see Exocaged on Youtube) but is NOT a plug-n-play affair. Really easy install with flat rail chassis and skid combo that supports 4 link.
