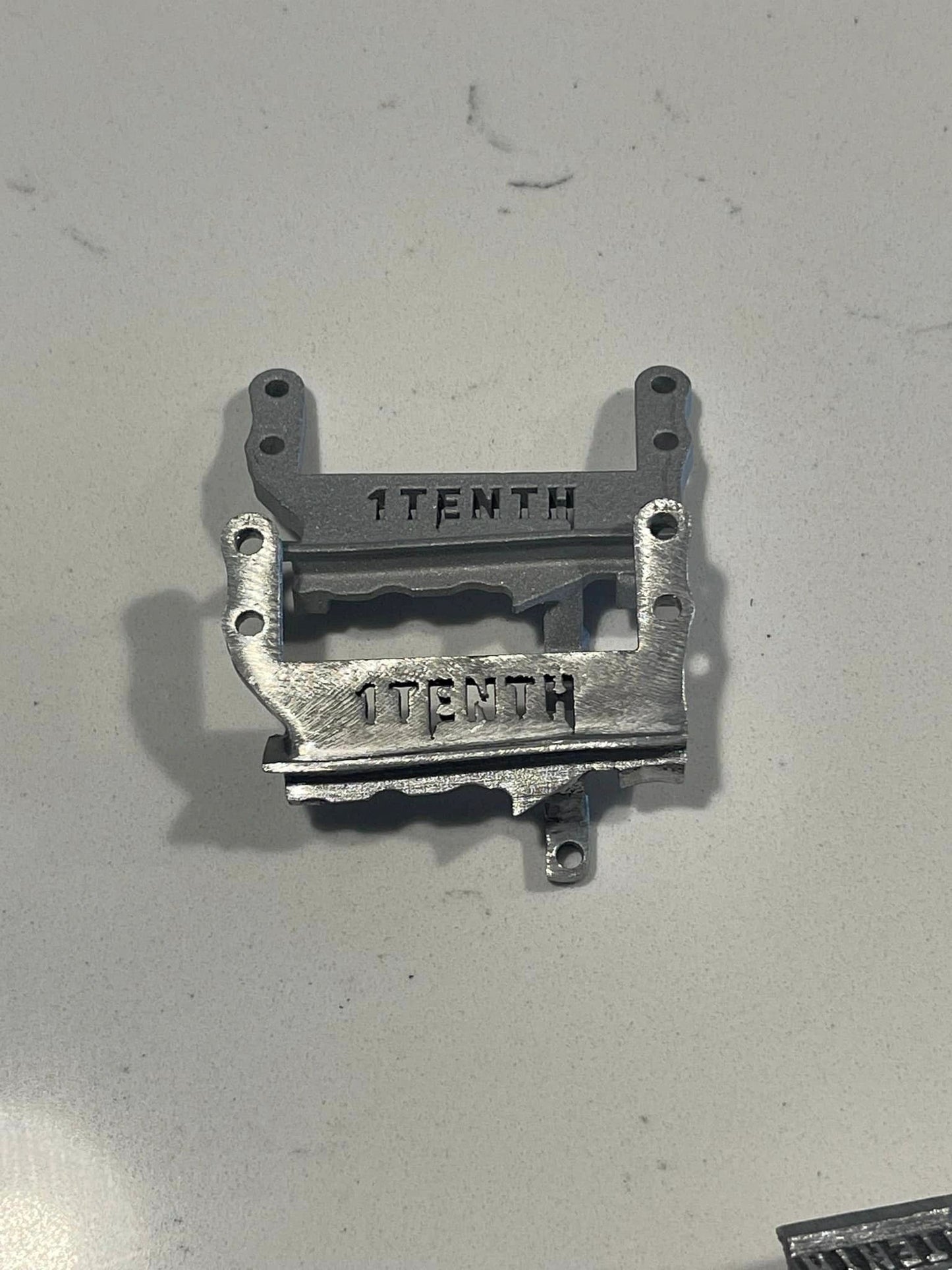

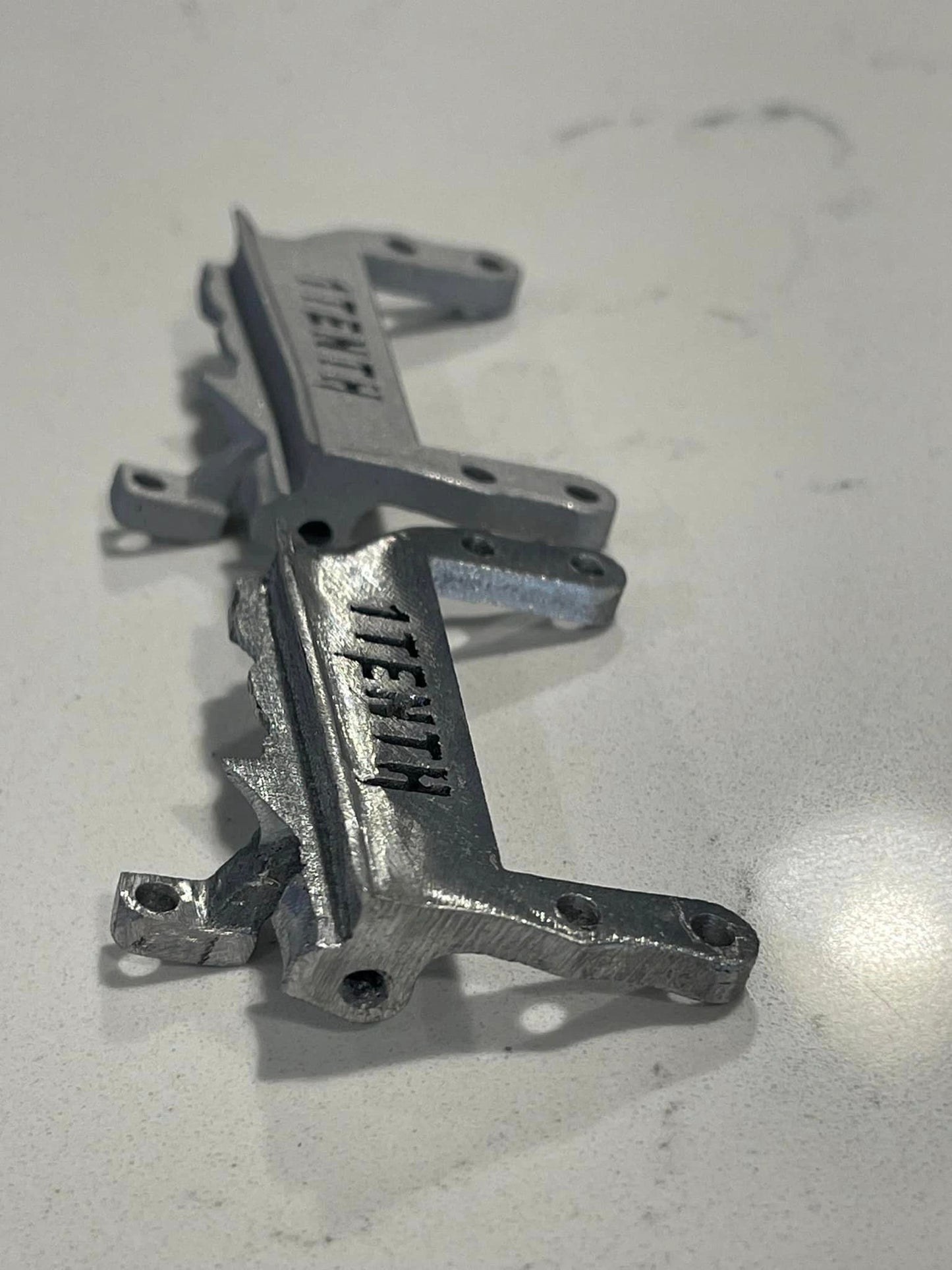

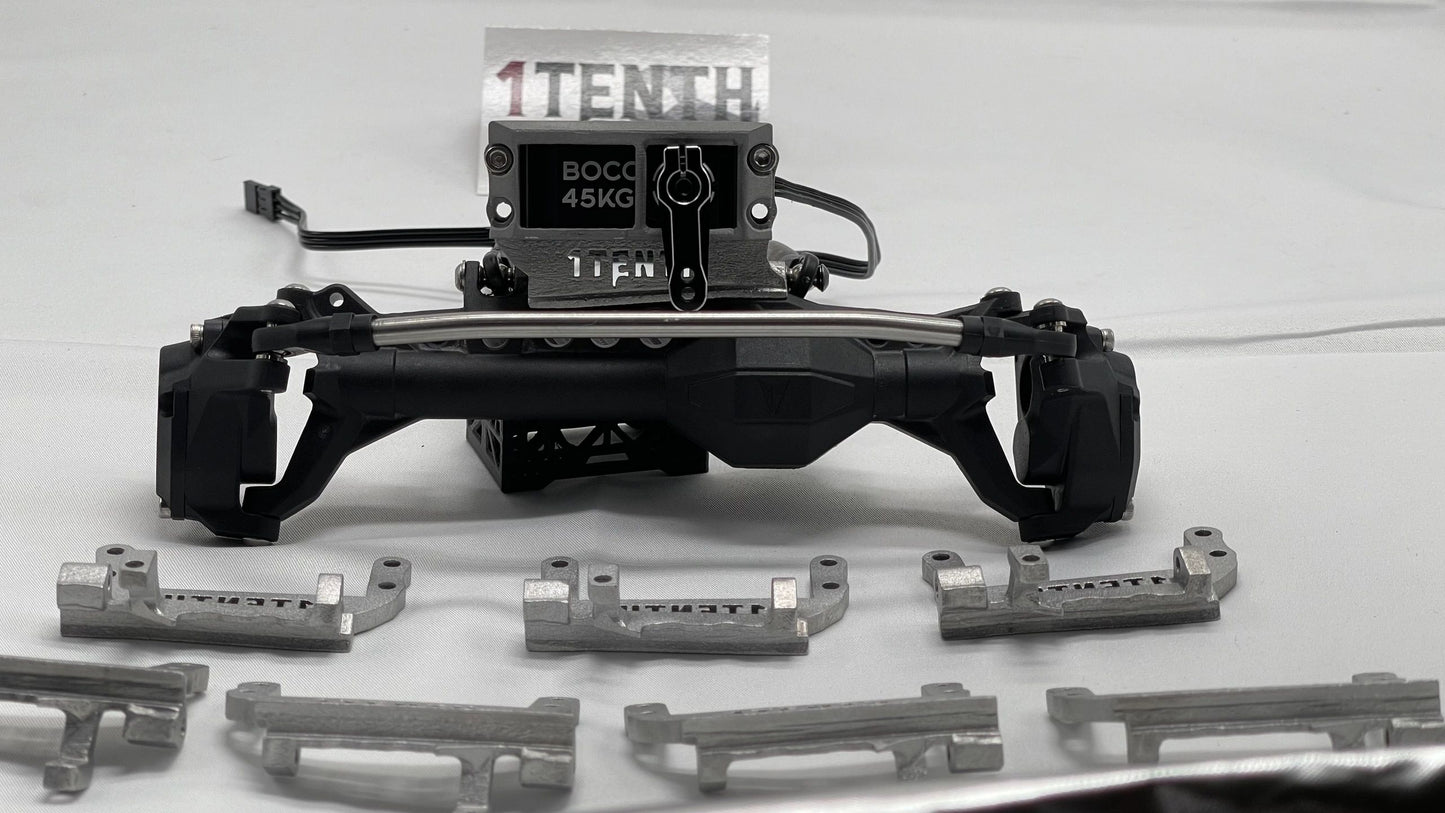

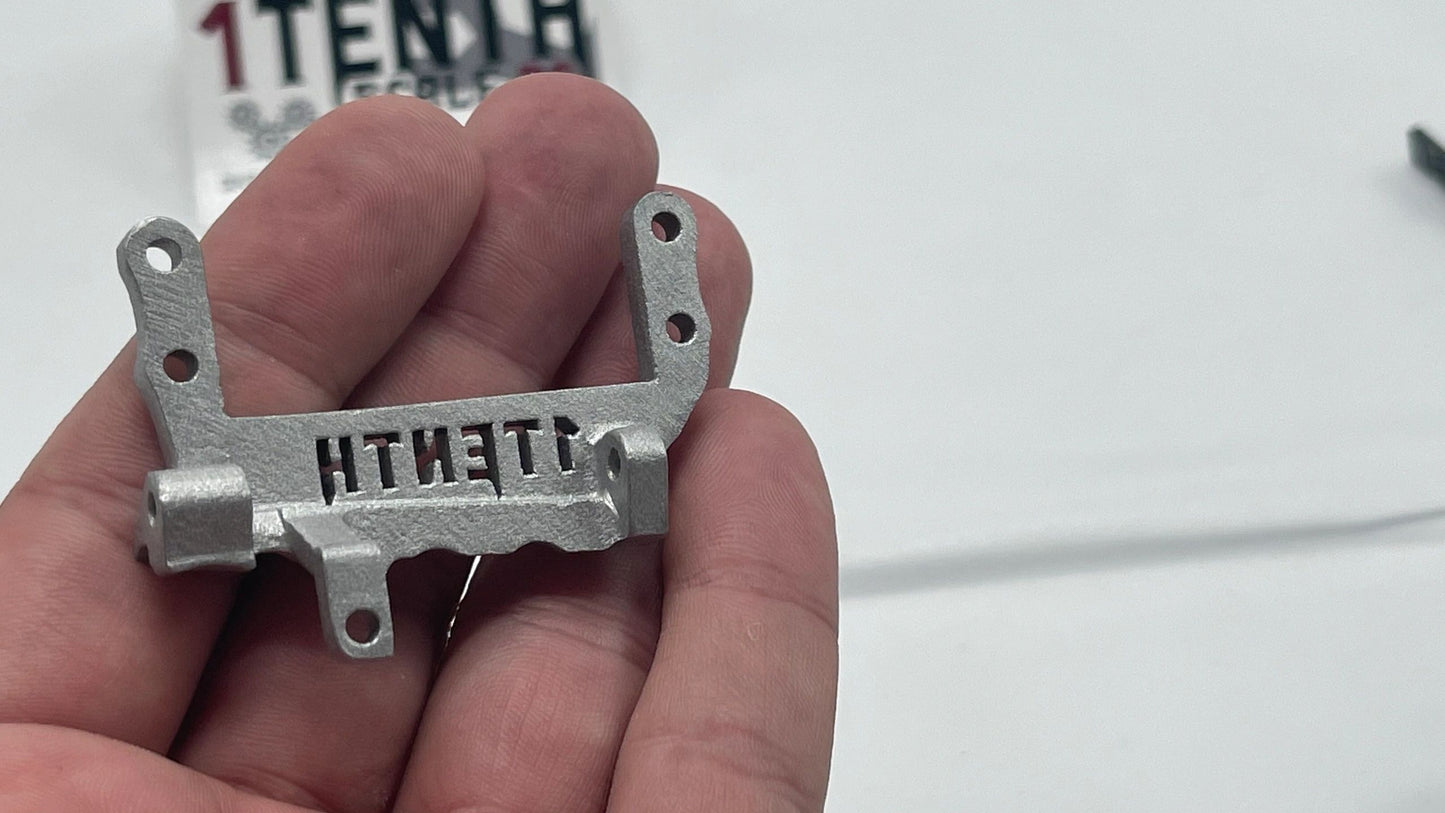

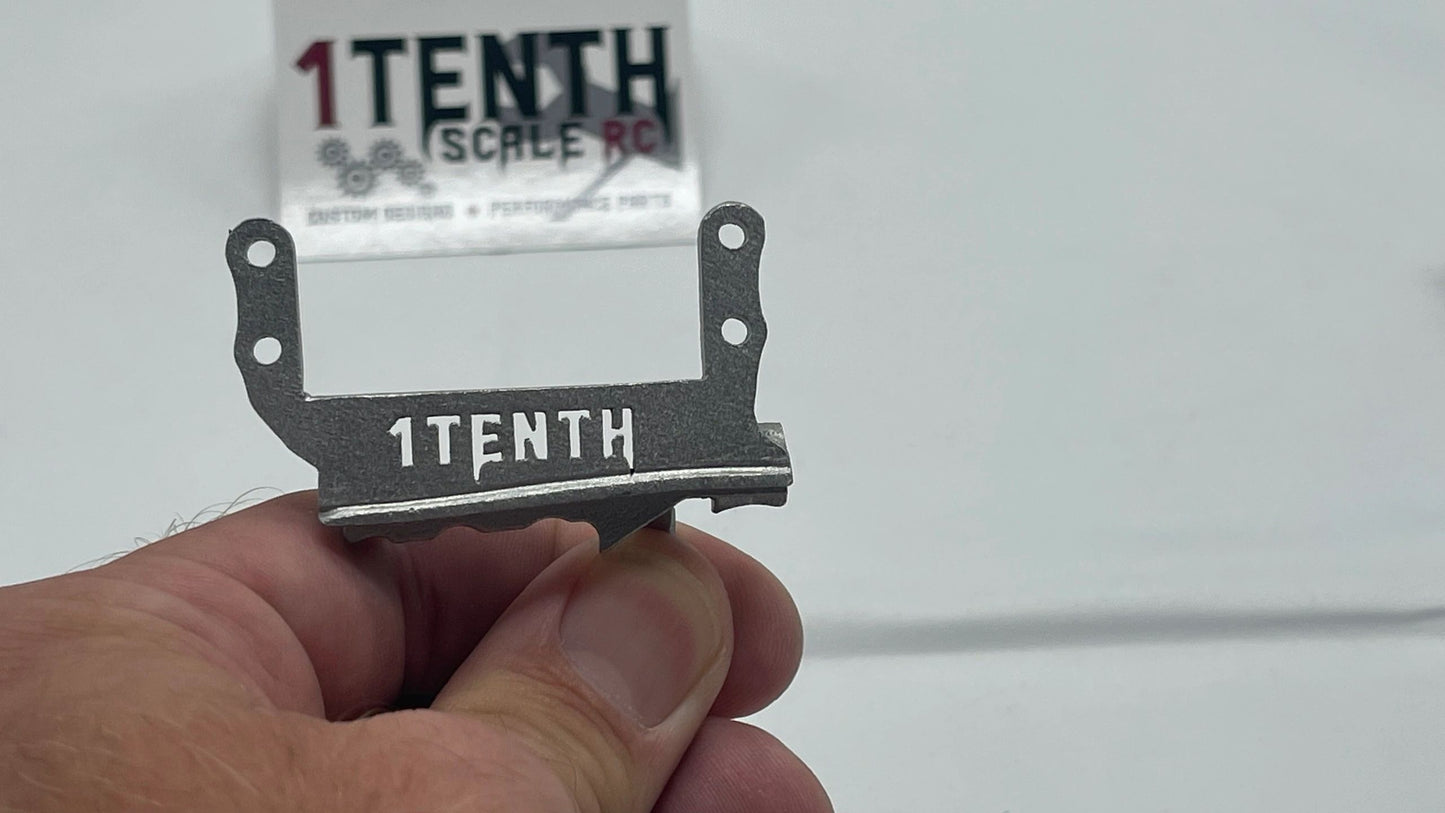

1Tenth - Aluminum SOA and 4 Link Converter for Vanquish F10 Composite Portal found on the Phoenix and VS-410 builds.
Does NOT fit the aluminum housing F10
The original and still the best aluminum servo on axle adapter for the F10. Skinny enough for just about any setup to clear the rails.

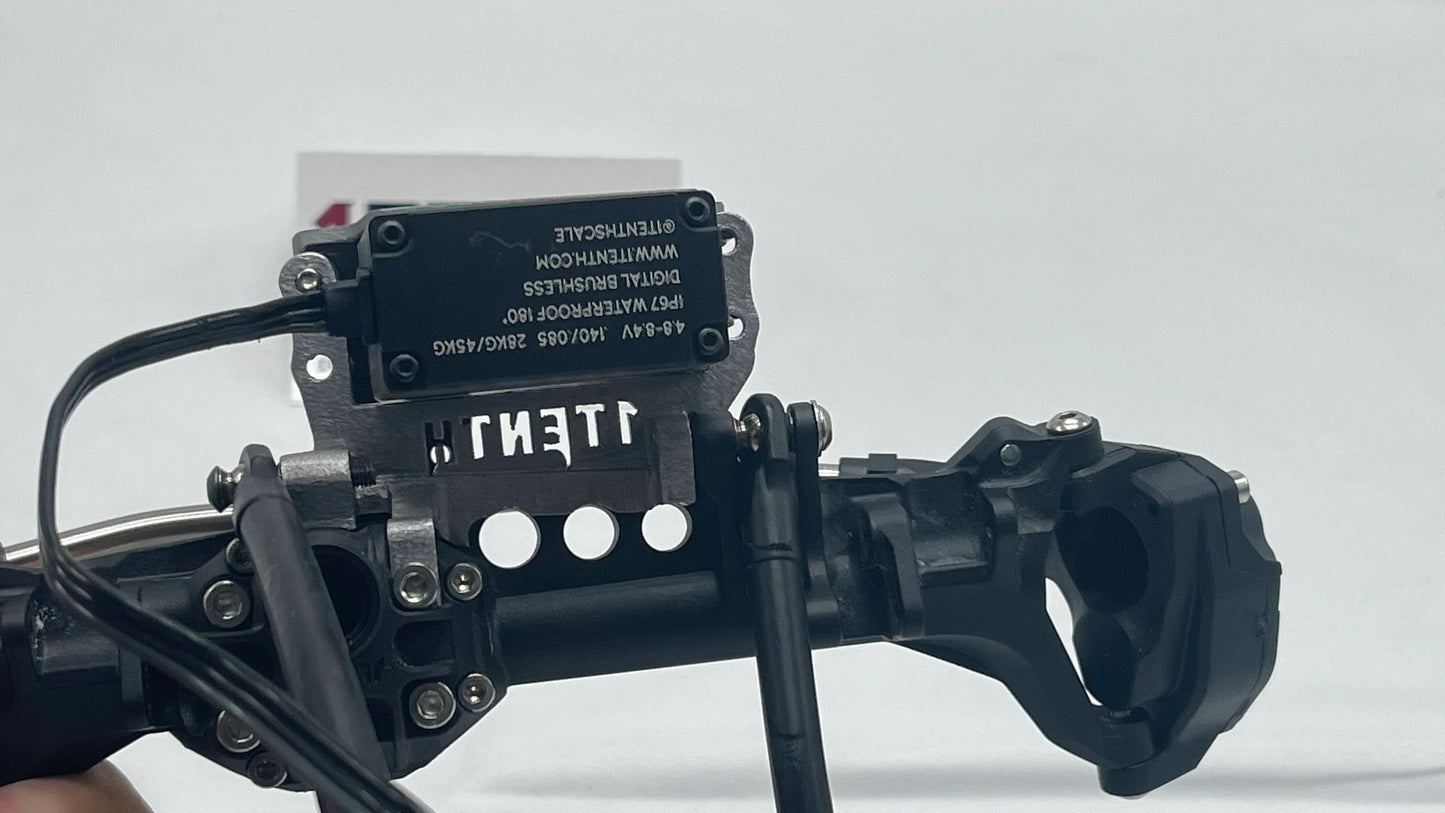

The mount form fits the truss, braces off the existing 3 link mount, and uses one of the screws on the back of the diff to secure to the axle. Mount can fit the composite straight axle f10 if you sand the nub on top of the truss down.
MATERIAL & CONSTRUCTION
Material: AlSi10Mg
Manufacturing: DMLS or SLS additive
Finish: Flat semi granular
Weight: ~12g
Dimensions
L-19mm
W-58mm
H-45mm
All necessary hardware included to mount on the axle.
NOT INTENDED FOR A STOCK VS410. Intended for experienced builders on custom rigs.
Can fit the straight axle fine if you sand down the nub on top of the truss.
Black is an epoxy based paint and durable enough for a servo mount. If you want a really durable finish look into cerakote or powder coating on the granular aluminum.
