1Tenth - BMF1095L Low Profile Direct Power 16.8V 25T Servo

Low-profile power. over 1100oz-in on 4S. Behind-axle ready.

WP (IP67) · STL · BL · LP (Low Profile) · DP (Direct Power)

WHAT IT IS
A 25T spline, IP67-waterproof, low-profile direct-power servo with
brushless motor and stainless gears — purpose-built for behind-the-axle
servo mounts that demand clearance without sacrificing torque.

IDEAL FOR
- Behind-the-axle (BTA) servo mount builds
- Low CG (LCG) chassis where clearance matters
- 4S direct-power builds wanting class-leading torque

WHY YOU WANT IT
With the current trend toward behind-the-axle servo mounts (that you helped 1Tenth kick off), you need  as much clearance as you can get — and the BMF1095L is built for the job. It's a little taller than some low-pros, but packing all that power in meant keeping the top half the same height as a full-size servo. You get full-size power in an LCG-friendly package. 85kg and fast speed means over 1100oz-in on 4S, and the tires will wiggle
good. Designed from the ground up for the 1Tenth scale to deliver class-leading power and speed.

POWER REQUIREMENTS
- Operating Voltage: 8.4V - 16.8V (direct power)
- Power Source: Direct from battery balance plug
- BEC Required: N/A — direct power
- Overvolt Warning: 16.8V max — overvoltage may void warranty

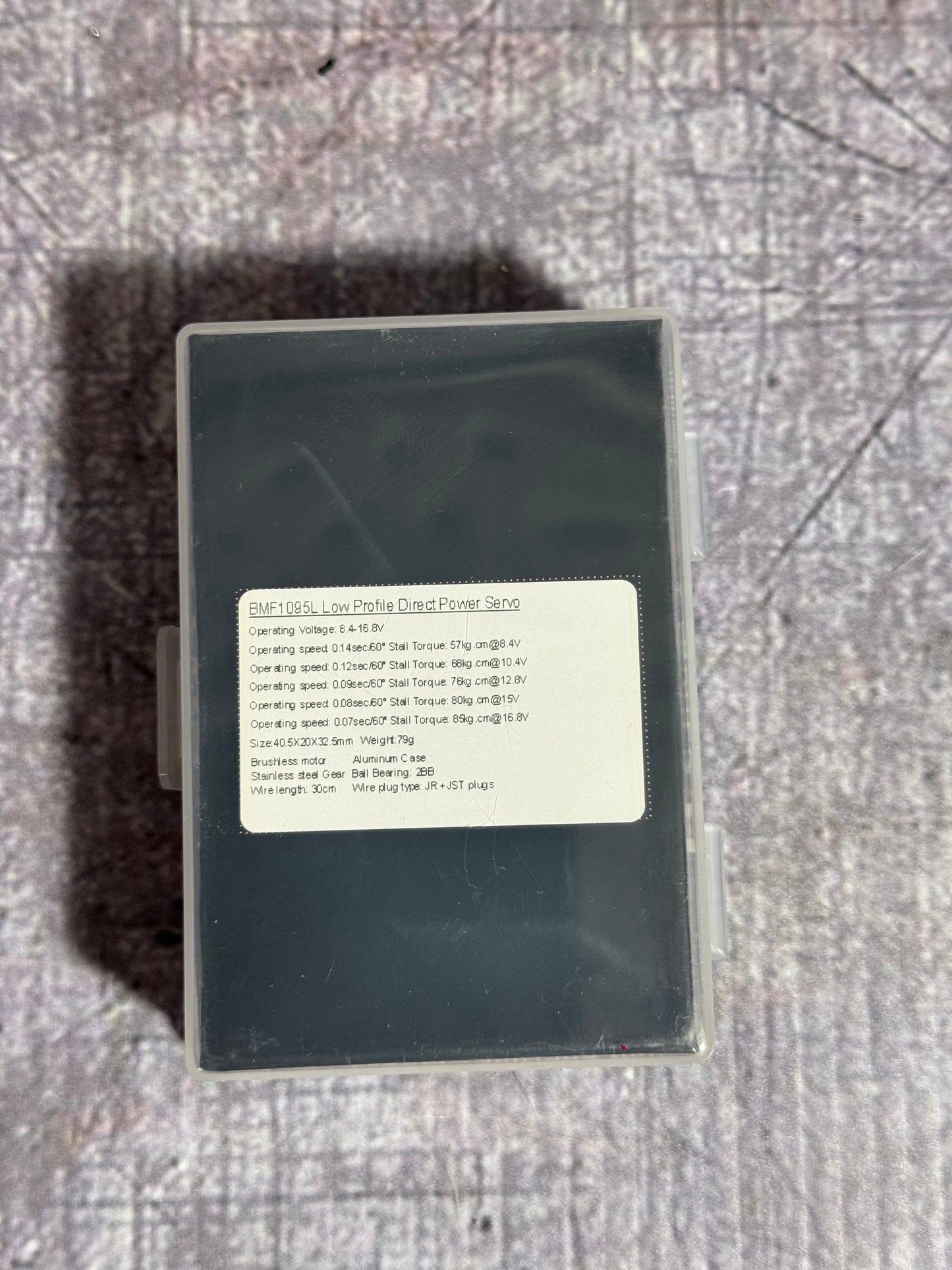

SPECIFICATIONS
- Stall Torque: 57kg-cm @ 8.4V, 68kg-cm @ 11.1V, 75kg-cm @ 12.6V,
  85kg-cm (1180oz-in) @ 16.8V
- Operating Speed: 0.130sec/60° @ 8.4V, 0.12sec/60° @ 11.1V,
  0.08sec/60° @ 12.6V, 0.07sec/60° @ 16.8V
- Motor Type: Brushless

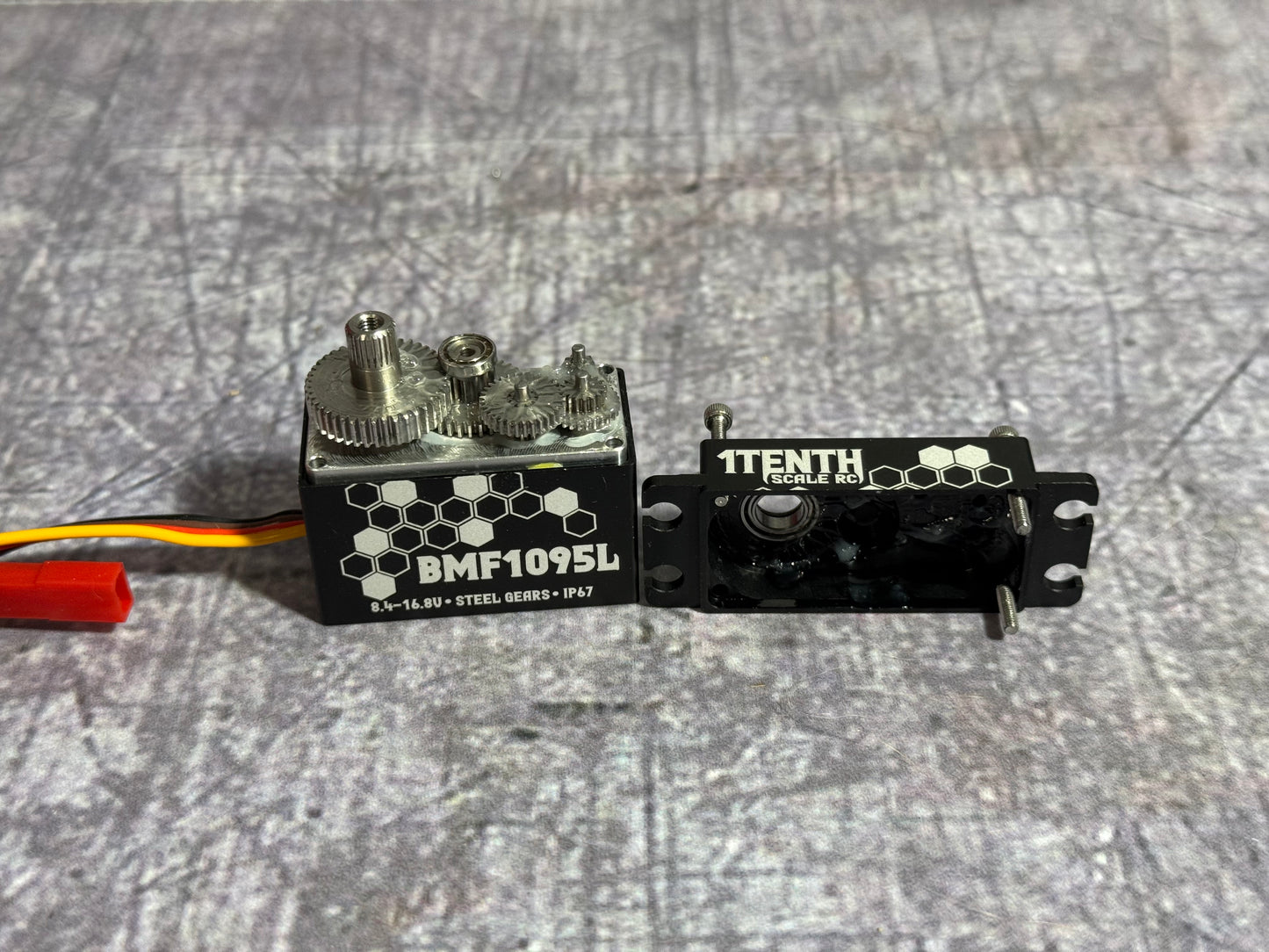

- Gear Material: Stainless steel
- Case Material: Full aluminum
- Output Spline: 25T
- Waterproof Rating: IP67
- Size: 40x30x32.5mm
- Weight: 77g

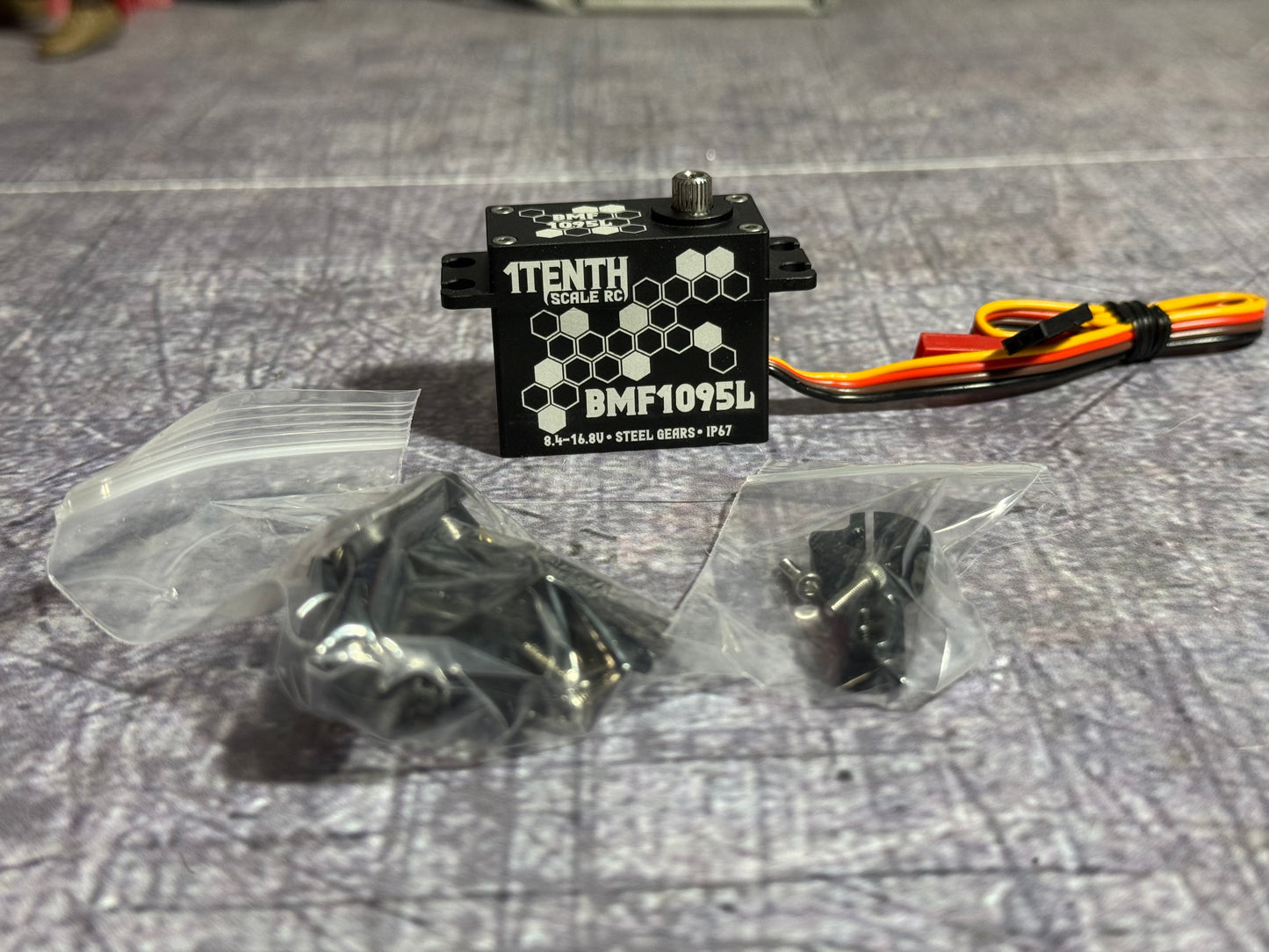

WHAT'S IN THE BOX
- BMF1095L servo

INSTALLATION NOTES
Direct-power servo — must be powered from a battery balance plug,
not the receiver. 16.8V maximum input — overvolting may void warranty.
If you submarine your rig for extended periods, remove the bottom
cap and let the servo air dry just in case.

COMPATIBILITY
- Low profile size — perfect fit for BTA (Behind The Axle) servo mounts
- Suggested Servo Mounts: Browse our 1Tenth and BOCO RC low-profile
  BTA servo mount collections for your specific axle
- Required Servo Horn: 25T spline

NOT QUITE WHAT YOU NEED?
- Standard-size direct-power power → 1Tenth BMF1095 (full size,
  same family)
- Budget-friendly entry option → 1Tenth BMF695 (4S, lower torque)
- Premium "lifetime gears" upgrade → BOCO Berserker (75kg) or
  BOCO Persuader (45kg) for receiver-power builds

WARRANTY
1 year bumper-to-bumper warranty (electronics and gears included).
