1Tenth - BMF695 Direct Power 16.8v 25T Servo

PRICE DROP DUE TO DEFAULT WARRANTY CHANGE

90 Day Warranty Now Standard

Fast. Cheap. Reliable. You can finally pick all three.

WP (IP67) · STL · BL · DP (Direct Power)

WHAT IT IS

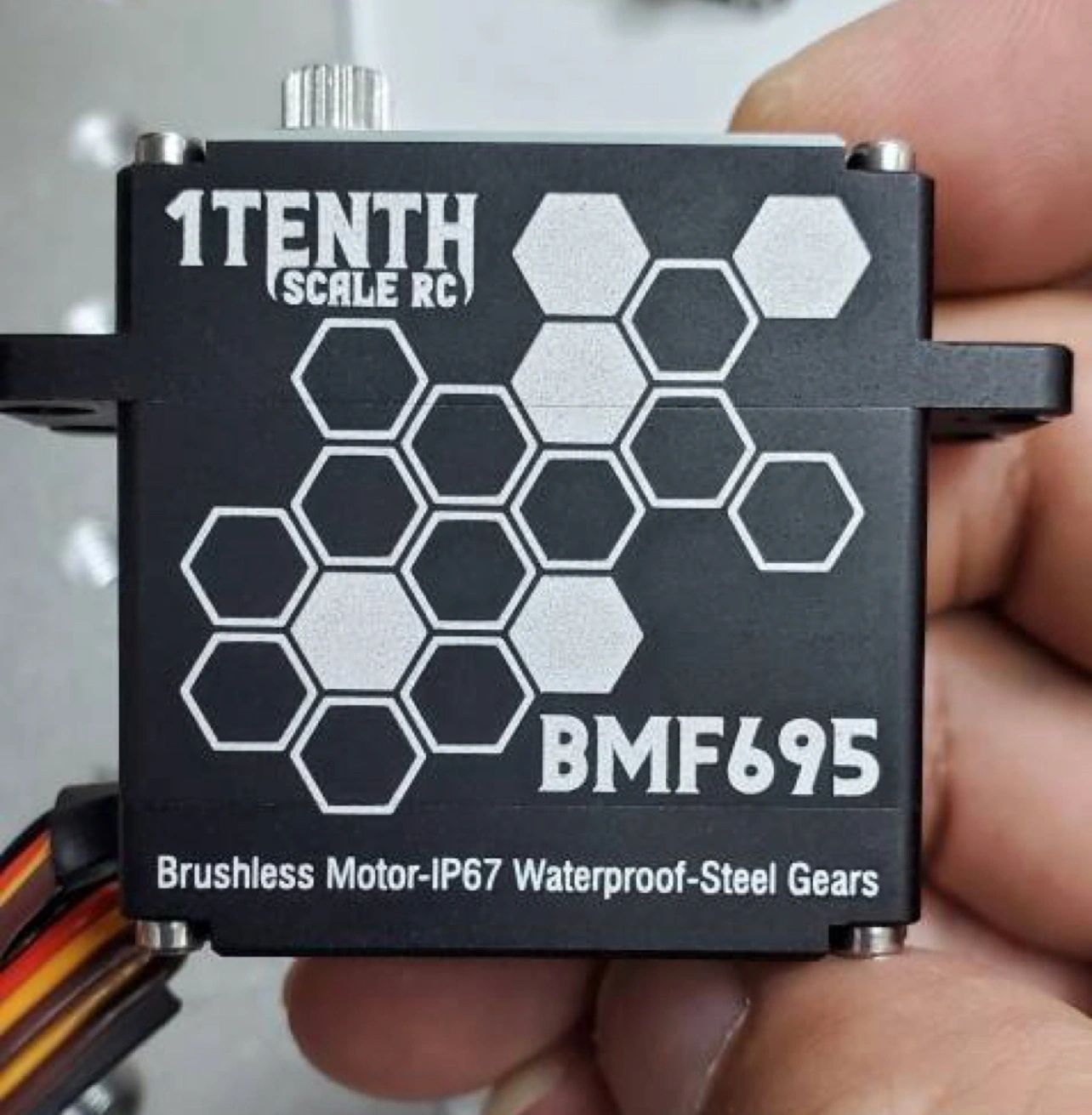

A 25T spline, IP67-waterproof, direct-power servo with brushless
motor and steel gears — built to hit affordable, durable, and fast
all at once, without depending on a strong BEC.

IDEAL FOR
- Comp crawlers and trail rigs
- Hill Climb and U4 race builds with servo savers
- Budget-conscious upgrades from stock servos

WHY YOU WANT IT
When I set out the requirements for the BMF695 I wanted something
affordable, durable, fast, and less reliant on a strong BEC. Steel
gears, full aluminum case, IP67 waterproof, and a direct-power lead
got the job done. Easily the bang-for-the-buck leader in the crawler

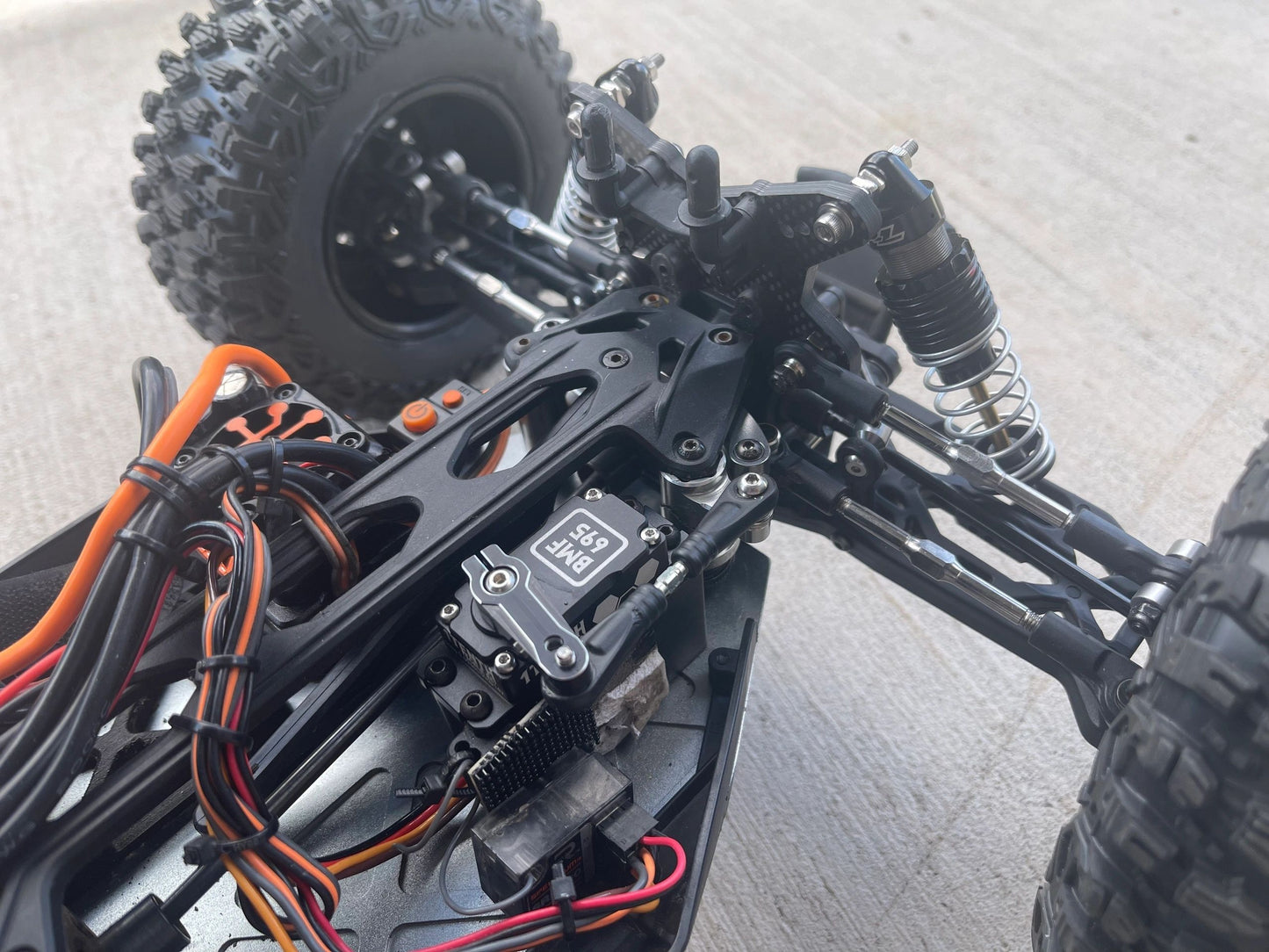

scene — I run it on my race Bomber and Lasernut for Hill Climb and
U4 so I know it's durable.

POWER REQUIREMENTS
- Operating Voltage: 10V - 16.8V (direct power)
- Power Source: Direct from external battery source — must NOT be
  powered from the receiver
- BEC Required: N/A — direct power (this servo was designed to be
  less BEC-dependent than full-size direct-power servos)
- Overvolt Warning: 16.8V max — overvoltage voids warranty

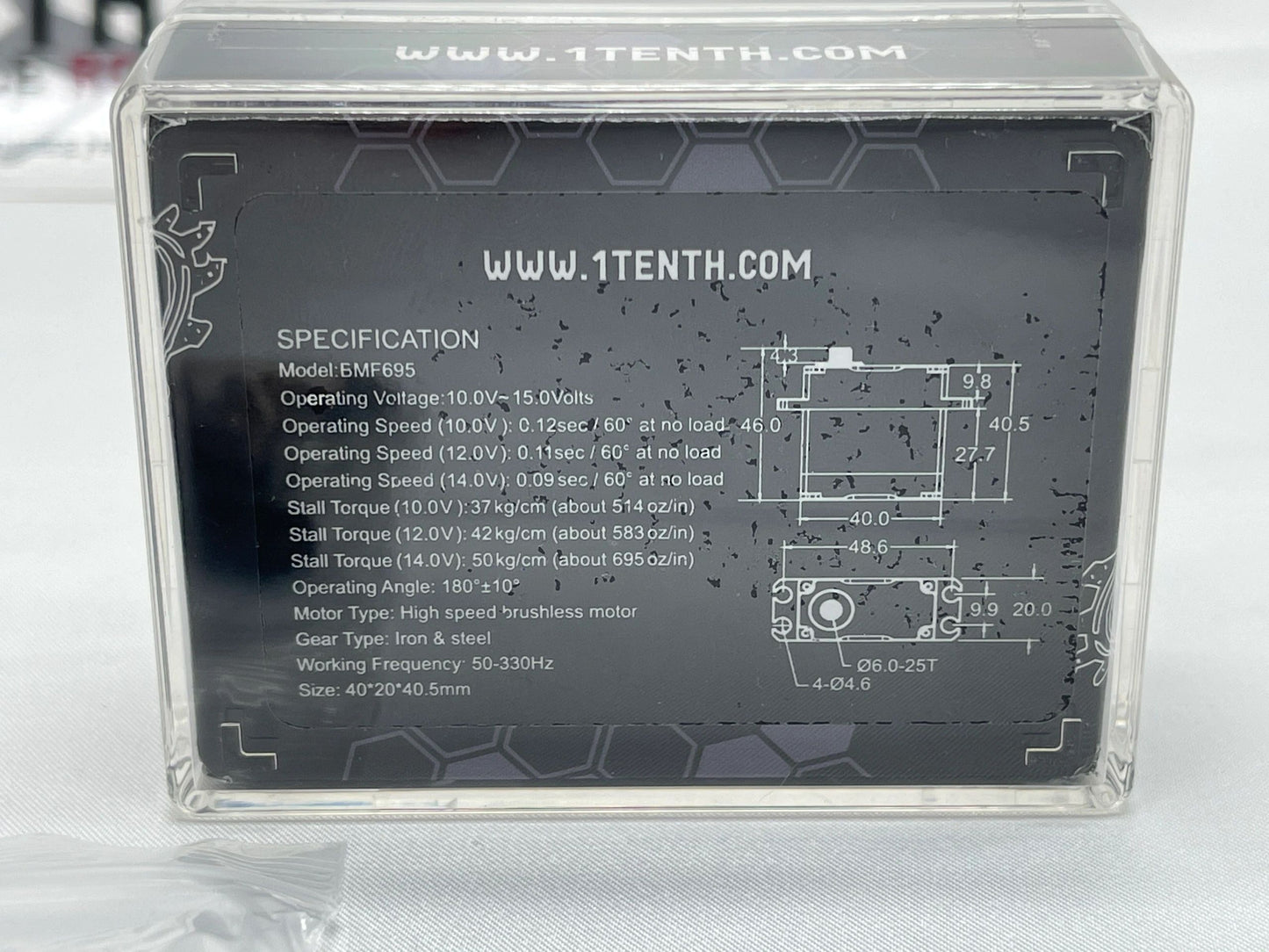

SPECIFICATIONS
- Stall Torque: 37kg-cm (~514 oz-in) @ 10V, 55kg-cm (~764 oz-in)
  @ 16.8V peak (~695 oz-in at 4S nominal 14.8V)
- Operating Speed: 0.12sec/60° @ 10V, 0.085sec/60° @ 16.8V
- Idle Current: 300mA @ 10V, 400mA @ 14V
- Running Current: 4000mA @ 10V, 5500mA @ 14V
- Motor Type: Brushless
- Gear Material: Steel
- Case Material: Full aluminum
- Output Spline: 25T
- Waterproof Rating: IP67
- Battery Compatibility: 3S and 4S

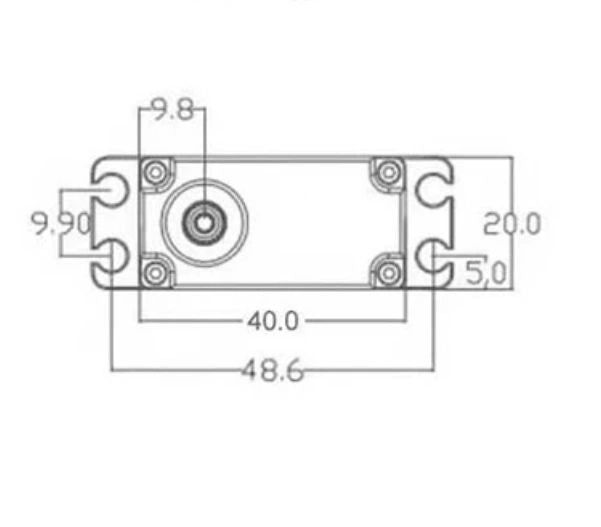

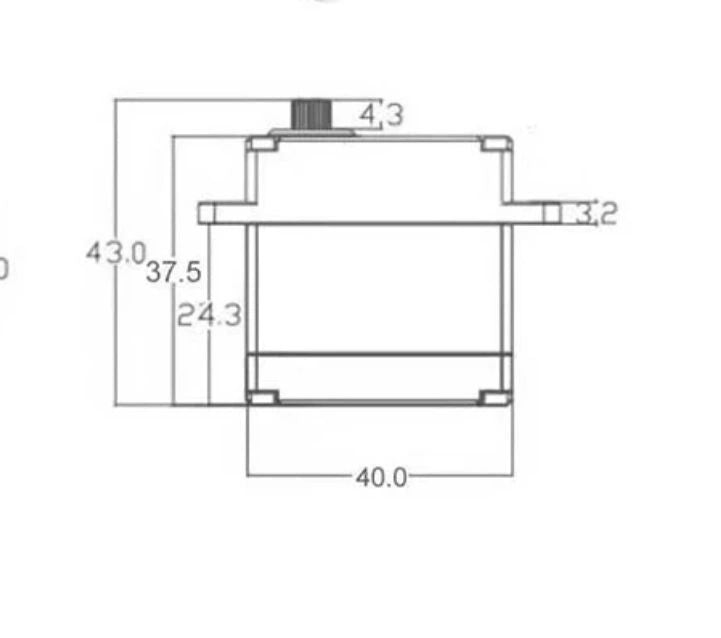

- Size: L-40MMxH54.5MMxW-20MM
- Weight: 89g

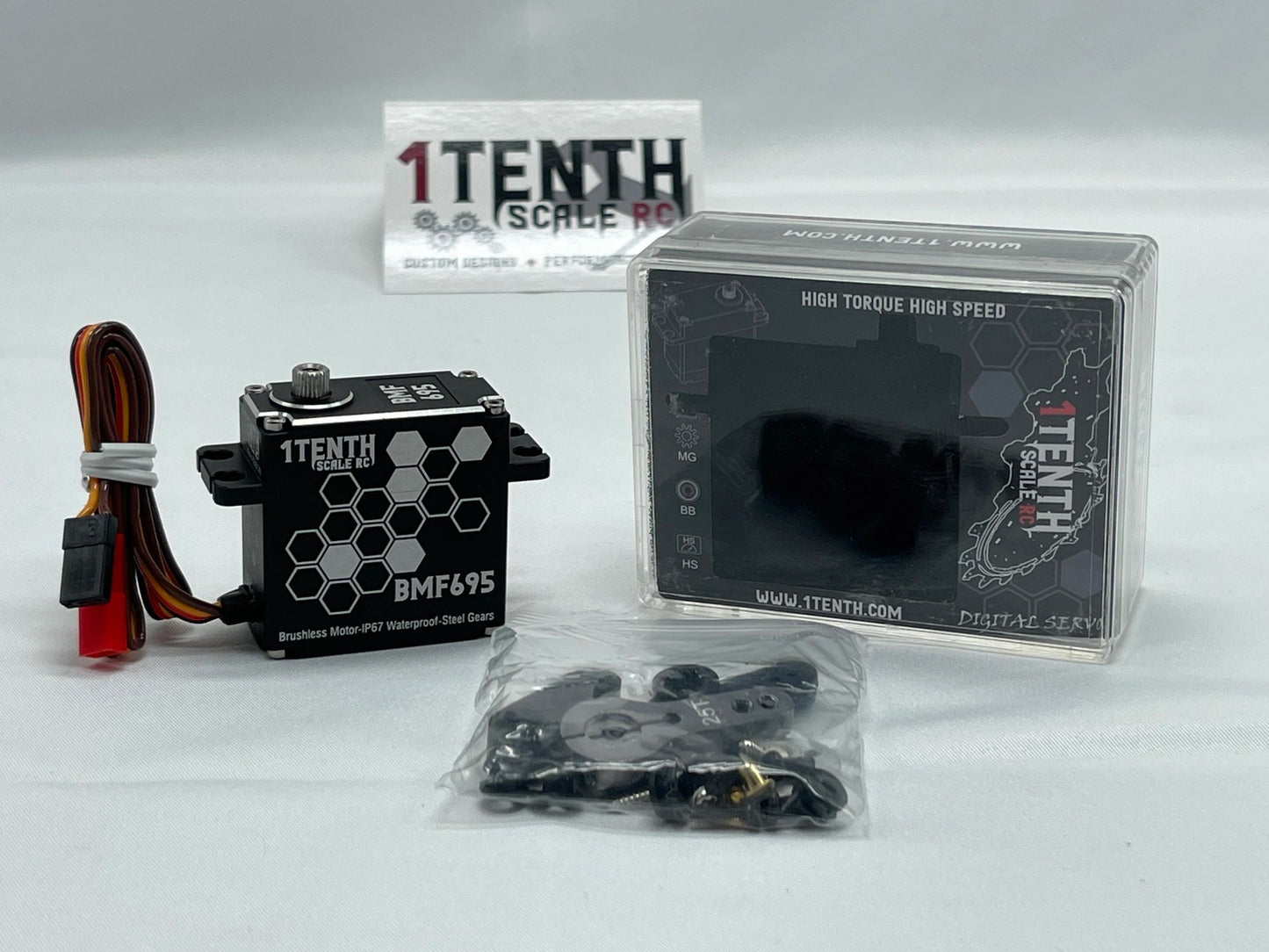

WHAT'S IN THE BOX

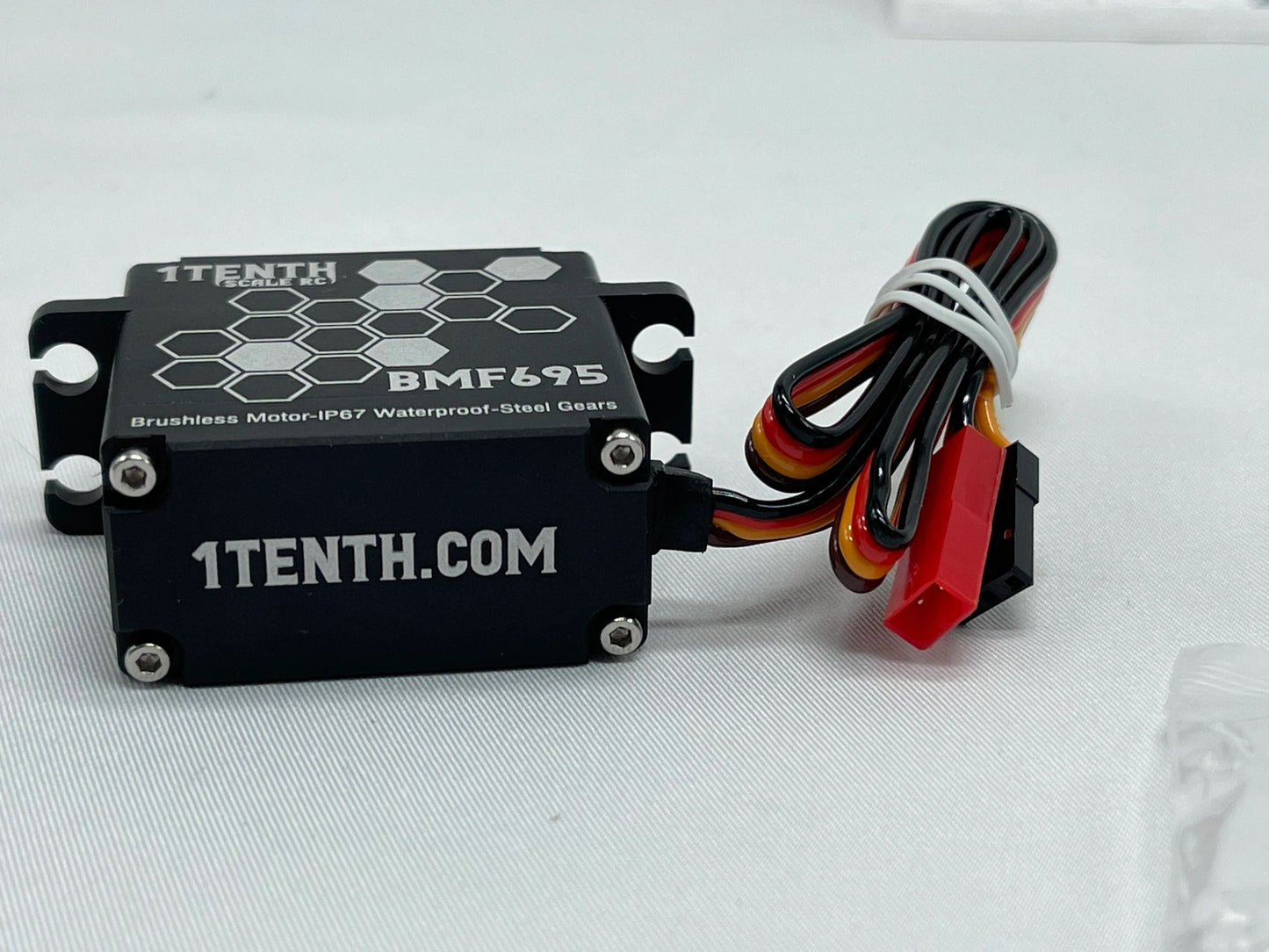

- BMF695 servo

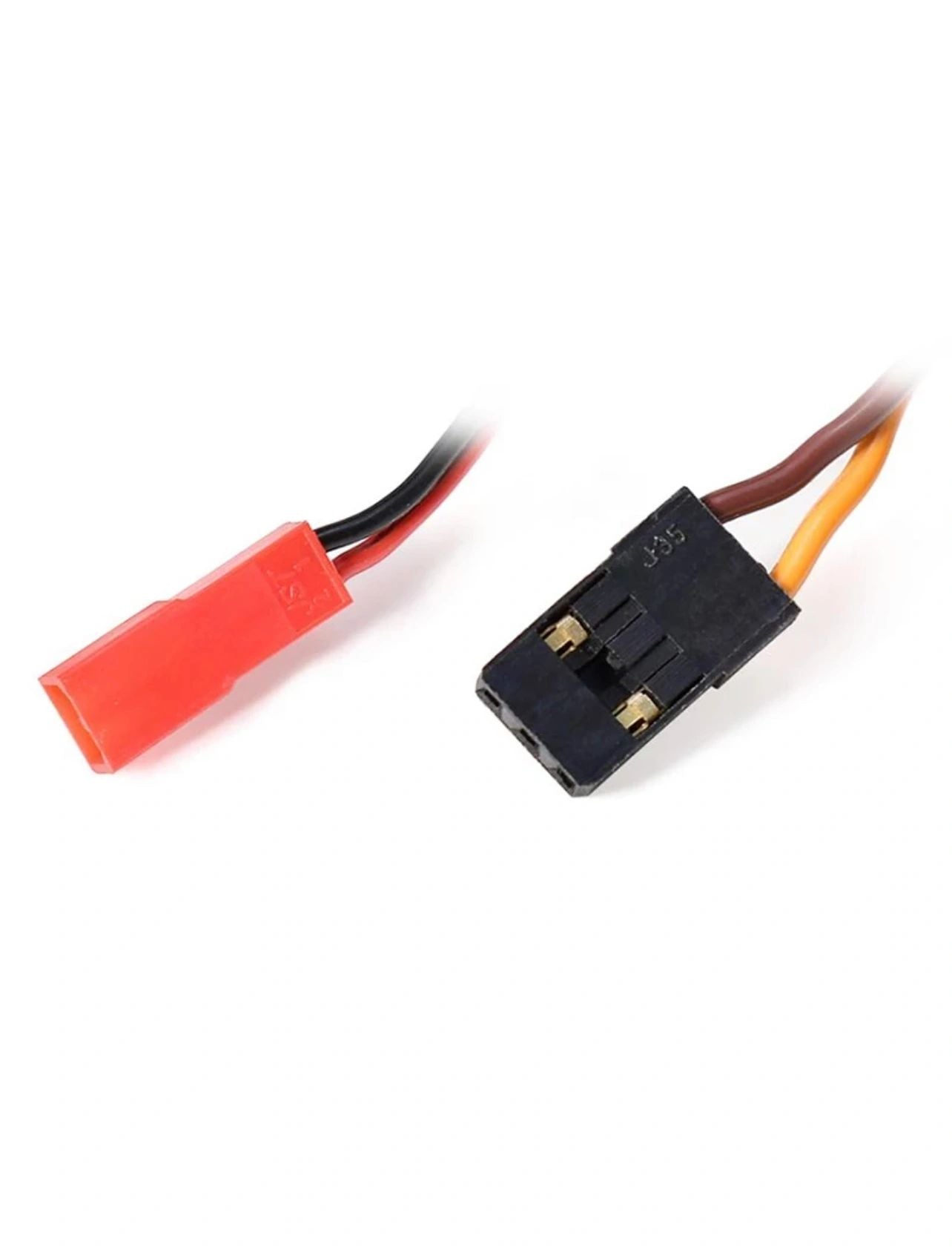

- Solder-on JST plug
- Aluminum alloy 25T servo horn

INSTALLATION NOTES
Direct-power servo — must be powered from an external battery source,
not the receiver. 16.8V maximum input — overvolting voids warranty.
A servo saver is recommended for heavier rigs or high-speed crashes.
If you submarine your rig for extended periods, remove the bottom
plate and let the servo air dry just in case.

COMPATIBILITY
- Standard size
- Suggested Servo Mounts: Browse our 1Tenth and BOCO RC standard-size
  servo mount collections for your specific axle
- Required Servo Horn: 25T spline (aluminum horn included)

NOT QUITE WHAT YOU NEED?
- Heavier rigs or big air → 1Tenth BMF1095 (85kg, full-size workhorse)
- Behind-axle/low-profile builds → 1Tenth BMF1095L (85kg, low profile)
- Premium "lifetime gears" upgrade → BOCO Persuader (45kg) or
  BOCO Berserker (75kg) for receiver-power builds

WARRANTY
90 Days.  "Bumper to Bumper" including electronics and gears.
