1Tenth - Servo Mount and 4 Link Adapter for Redcat Ascent and Gen9 Axles
Redcat did make some improvements to bump steer on the Gen9 and Ascent but it's still there, as it always will be with a 3 link and panhard. That's why 4 link is so much better.

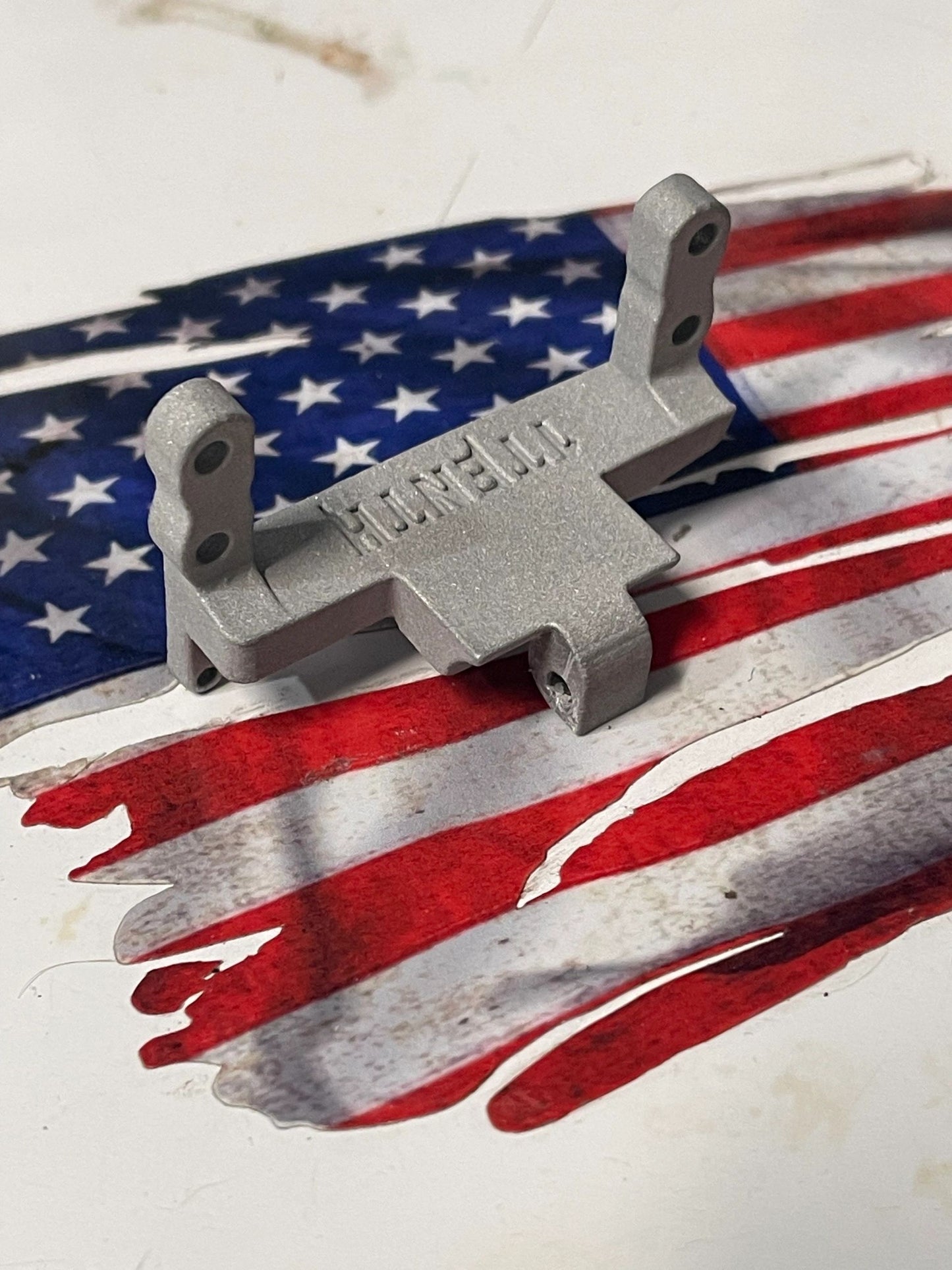

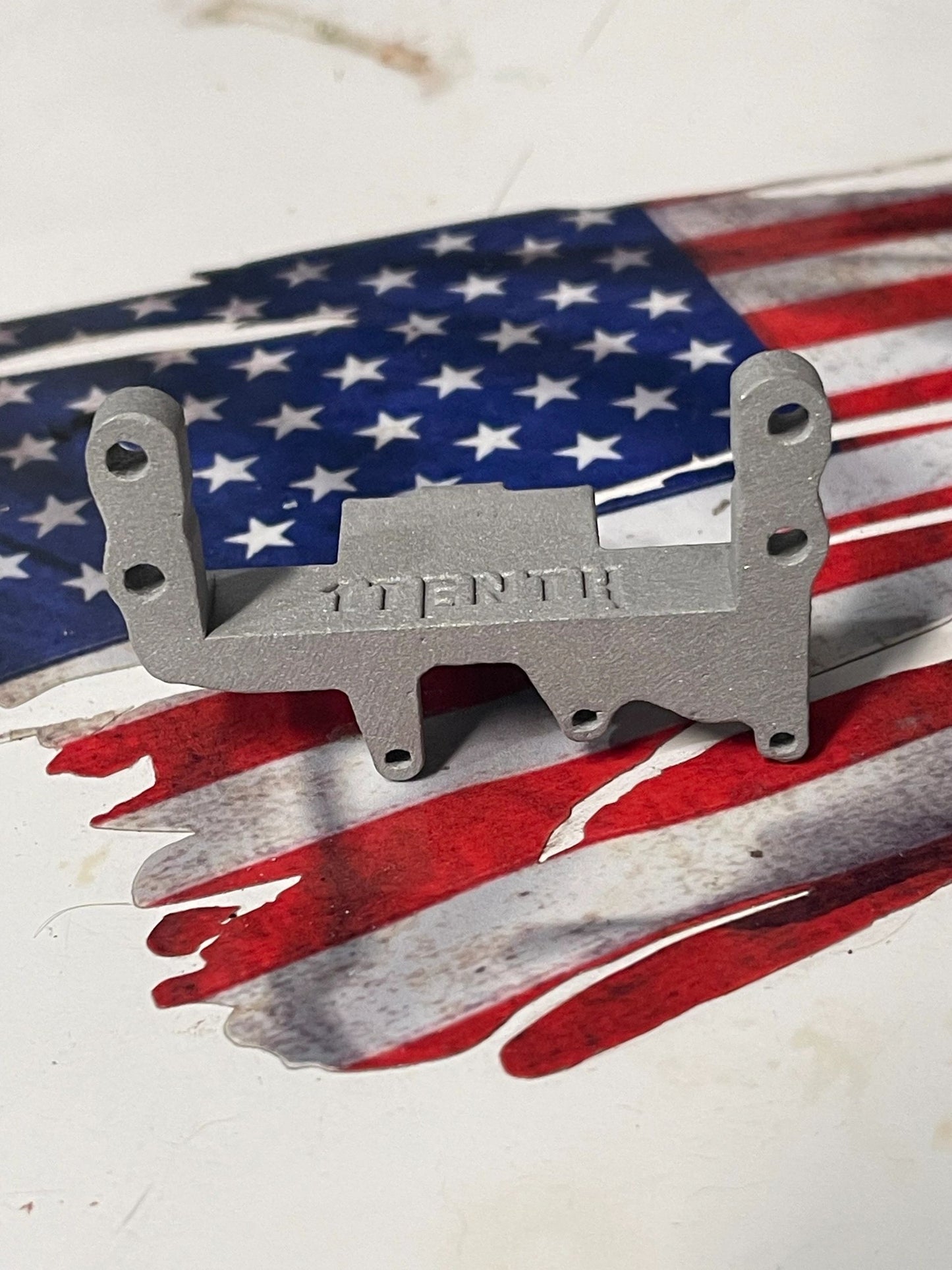

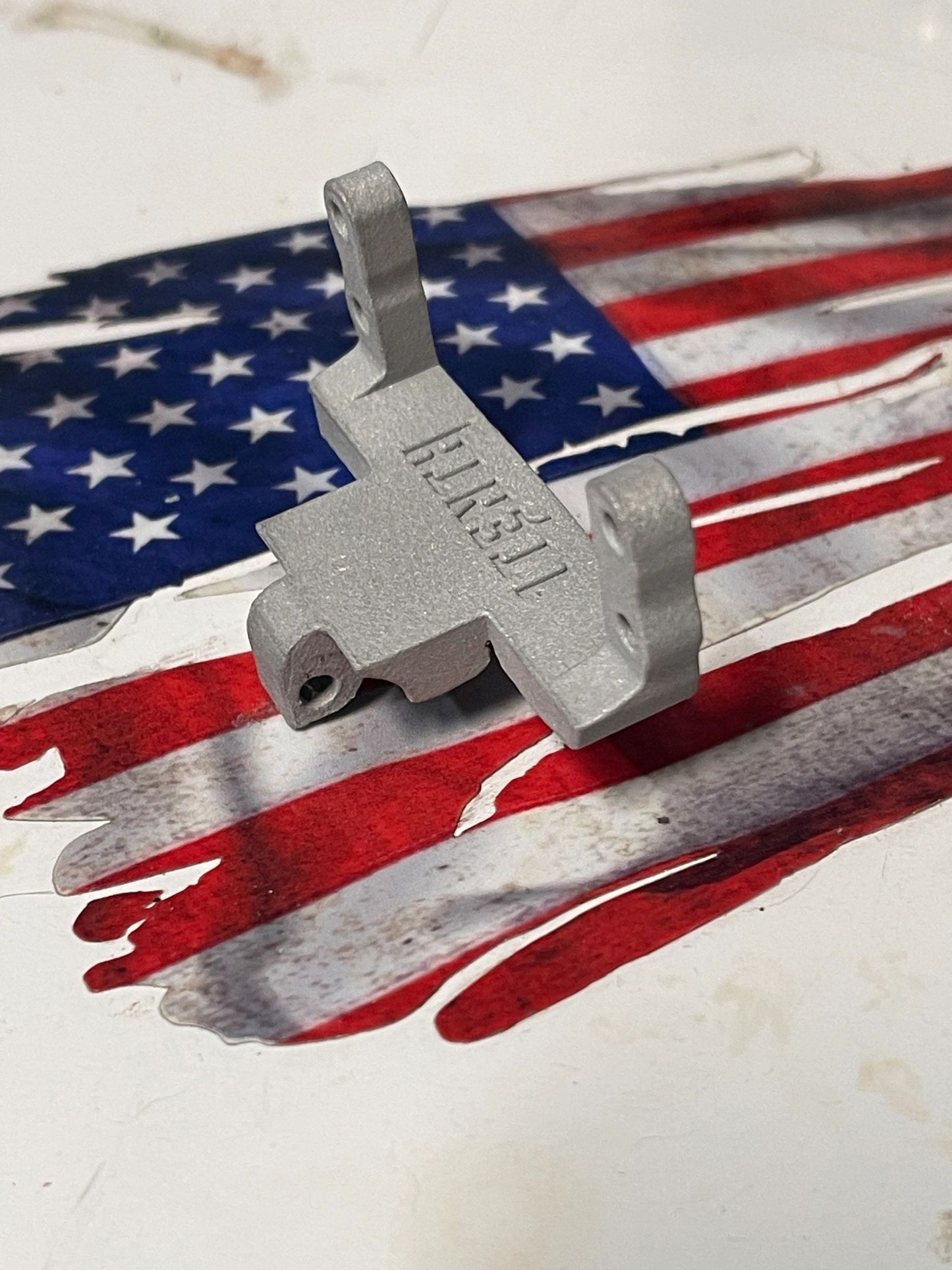

So here is the servo mount to get you up the hills quicker than the CMS rigs. Manufactured from aluminum so it's light and strong.

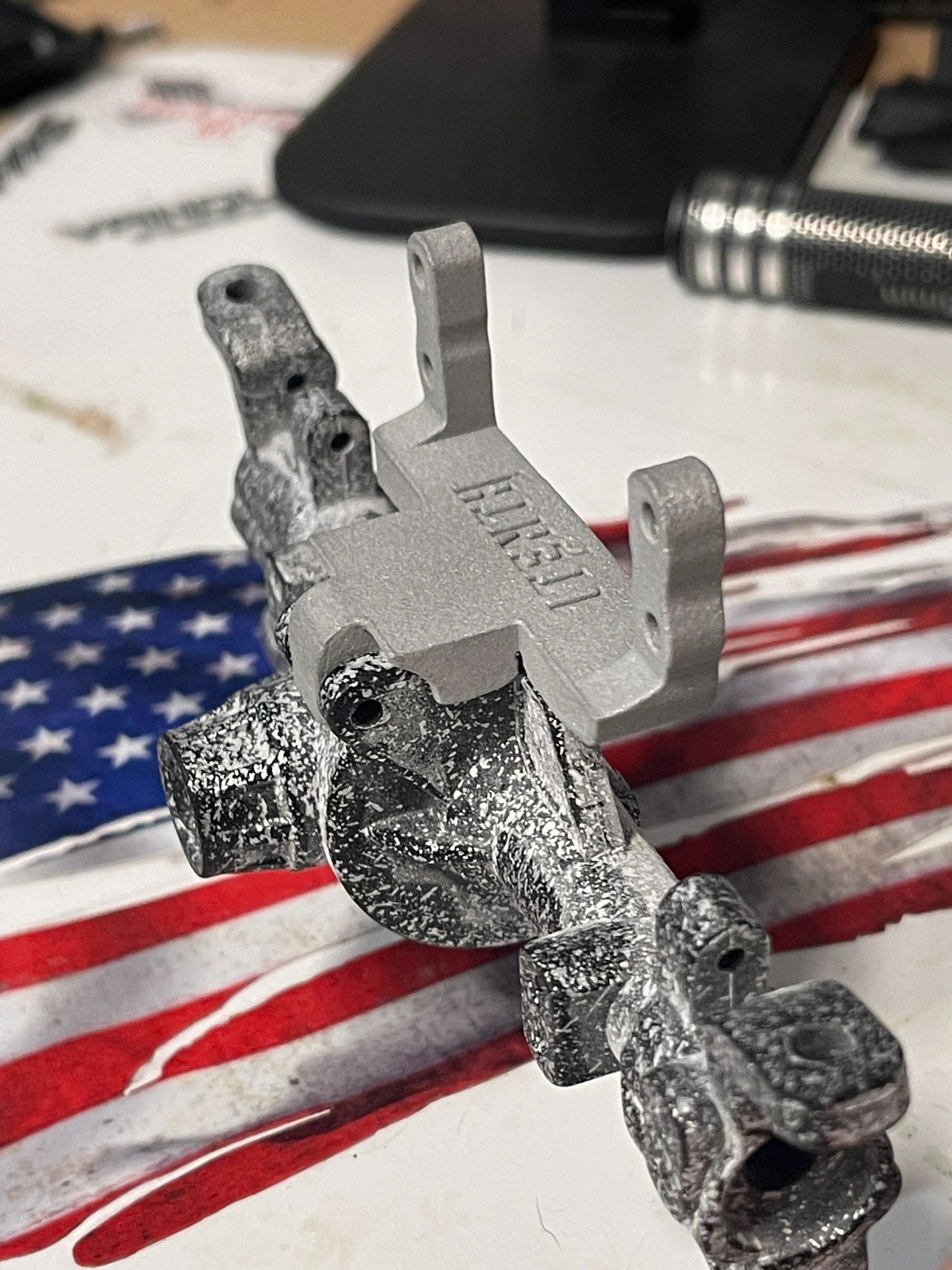

Comes with hardware needed to mount on the axle.
MATERIAL & CONSTRUCTION
Material: AlSi10Mg
Manufacturing: DMLS or SLS additive
Finish: Flat semi granular
Weight: ~14g
Dimensions
L-28mm
W-56mm
H-34mm
To 4 link my Ascent I used a 2nd driver side upper link, bent 15*, and moved both links to the lowest mount on the chassis side. Combined with a short outrunner the link and motor jusssssst clear.
The Fusion moves the motor down and makes using this all but impossible. You can try but it won't be easy. Maybe upper links outside the chassis rails...
