Buy Once Cry Once power. Lifetime gear warranty.
WP (IP67) · STL · BL
WHAT IT IS
A 25T spline, IP67-waterproof, steel-gear, brushless servo built as
the "jack of all trades" crawler servo — plenty of power and speed
for the vast majority of rigs out there.
IDEAL FOR
- Comp crawlers and trail rigs
- Rock bouncers
- General-purpose crawler builds where reliability matters most
WHY YOU WANT IT
The Persuader was BOCO RC's first servo to hit the market and it's
still the "jack of all trades" pick for crawlers and bouncers. I've

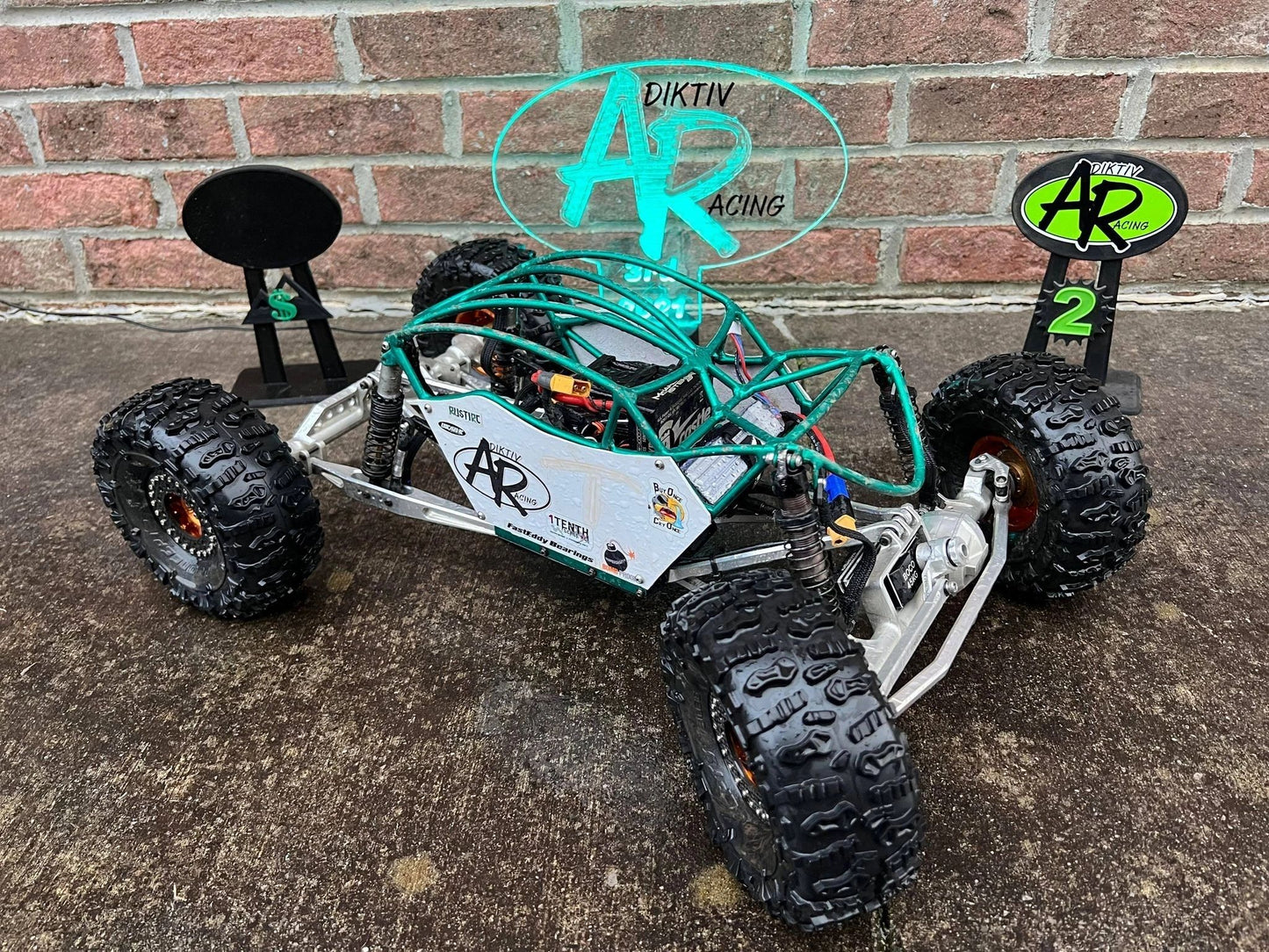

gotten podiums on these multiple times — I run my own products to

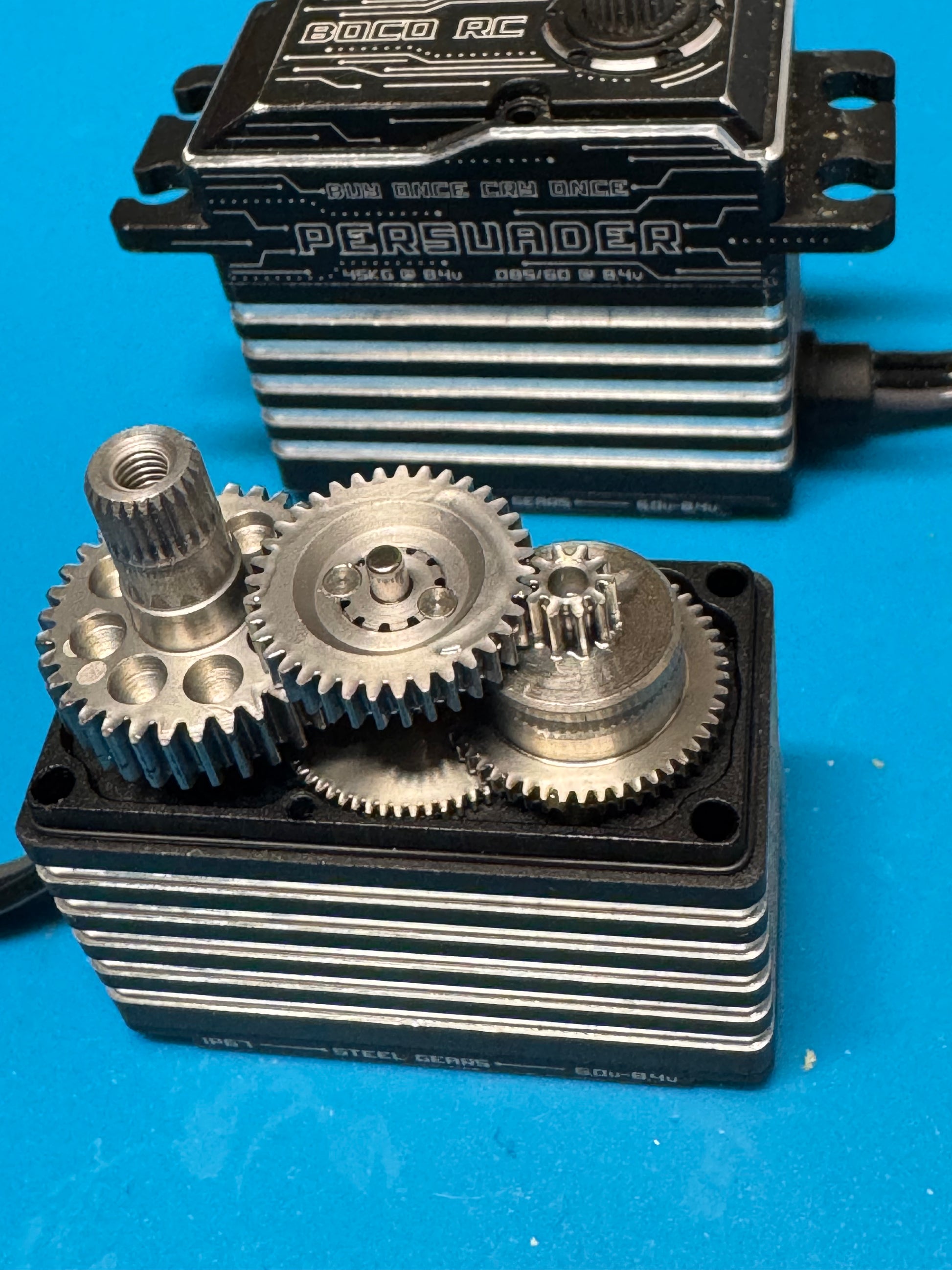

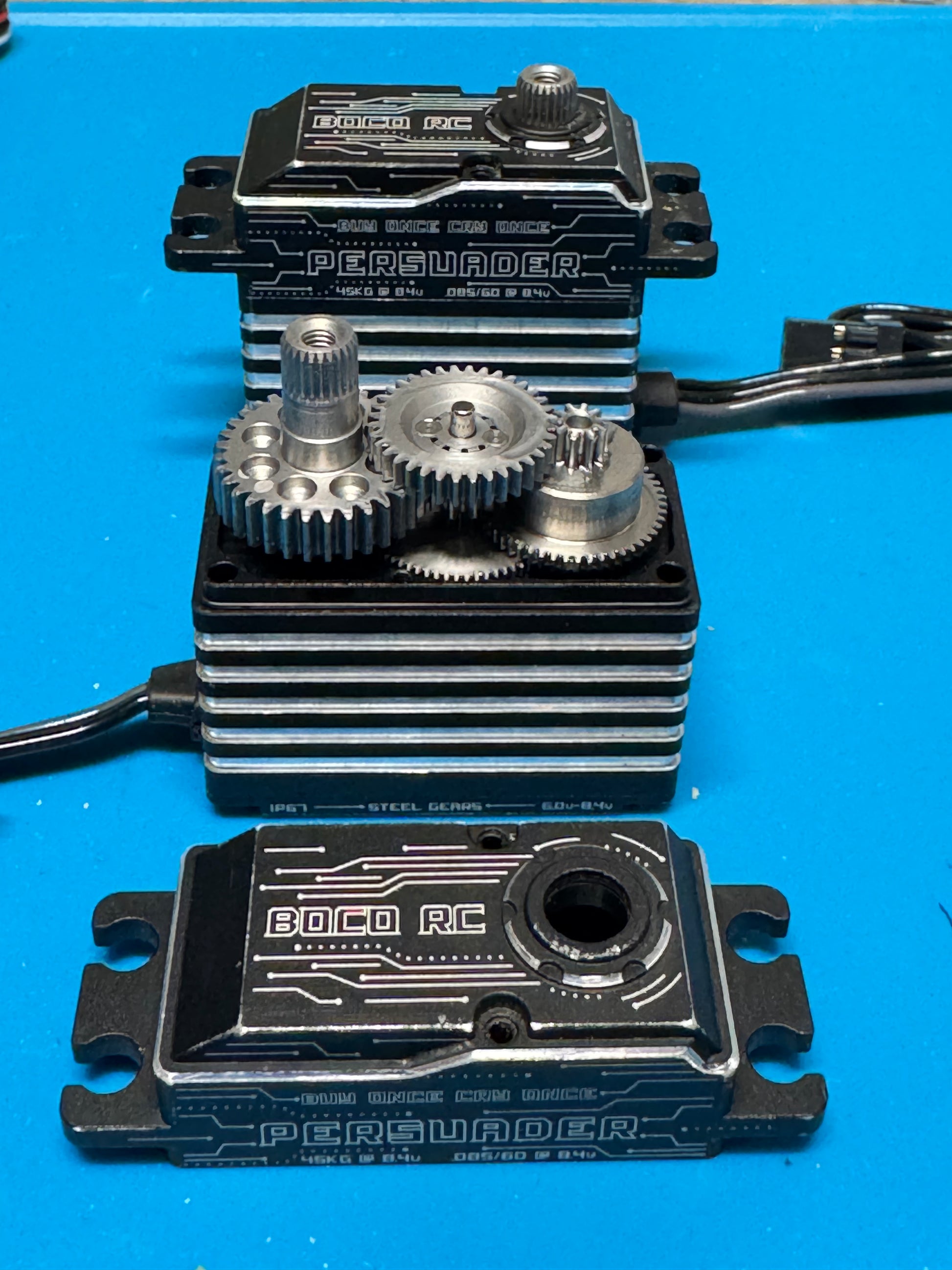

race so I know they perform. Designed to take abuse with thick 416
stainless gears, high-chrome shafts, full aluminum CNC case, and a
triple ball bearing setup. Less than 3% gear failure rate. And if
you ever do break a gear, just let us know and we'll get you a set
under the lifetime warranty.
POWER REQUIREMENTS
- Operating Voltage: 4.8V - 8.4V
- Power Source: Standard receiver power
- BEC Required: External BEC suggested for max performance (~5A draw)
- ESC Notes: Mamba X, Monster X, and most Hobbywings run it fine.
1080 and weak RTR ESCs work OK but may brownout or underperform —
check your ESC's BEC spec. RTR or weak-BEC ESCs benefit from an
external BEC or "glitch buster" capacitor for smoothest operation.
SPECIFICATIONS
- Stall Torque: 28kg-cm (389oz-in) @ 4.8V, 34kg-cm (472oz-in) @ 6.0V,
39kg-cm (542oz-in) @ 7.4V, 45kg-cm (625oz-in) @ 8.4V
- Operating Speed: 0.140sec/60° @ 4.8V, 0.115sec/60° @ 6.0V,
0.100sec/60° @ 7.4V, 0.085sec/60° @ 8.4V
- Loading Current: 3600mA @ 4.8V, 4000mA @ 6.0V, 4300mA @ 7.4V,
4600mA @ 8.4V
- Motor Type: 25T Digital Brushless
- Gear Material: 416 stainless steel
- Shaft Material: High chrome
- Case Material: Full aluminum CNC
- Bearings: Triple ball bearing
- Output Spline: 25T
- Waterproof Rating: IP67
- Weight: 78g
WHAT'S IN THE BOX

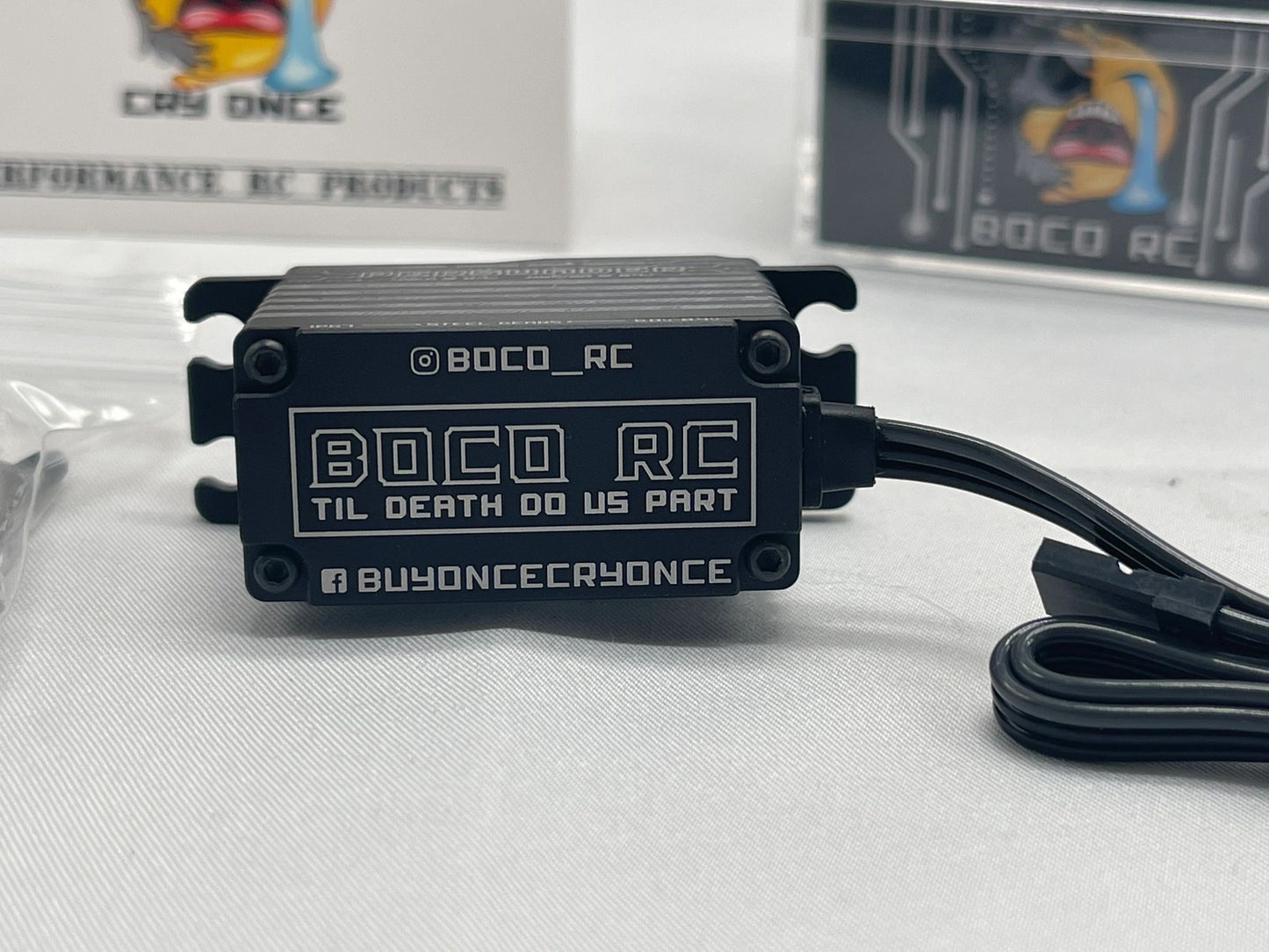

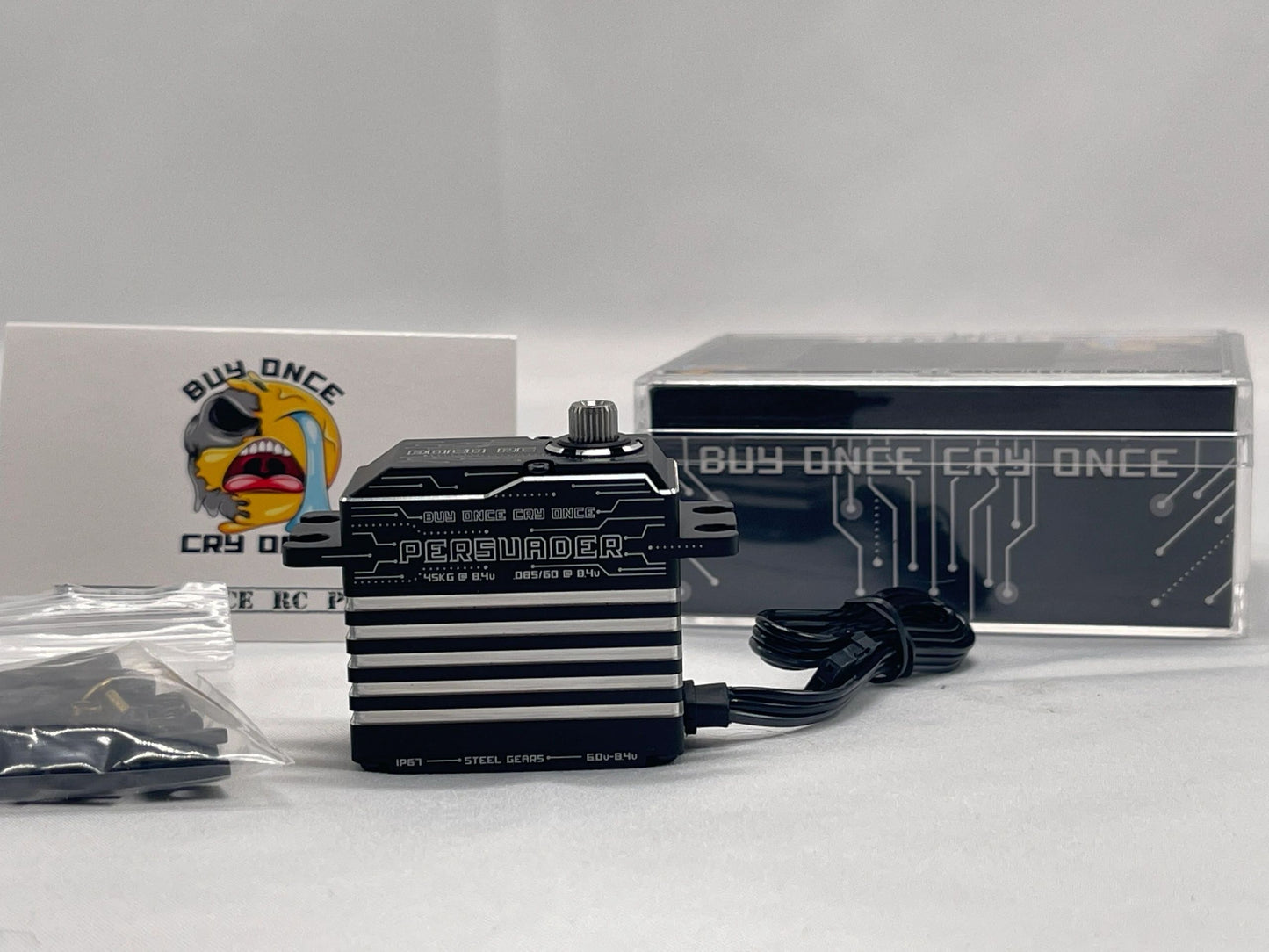

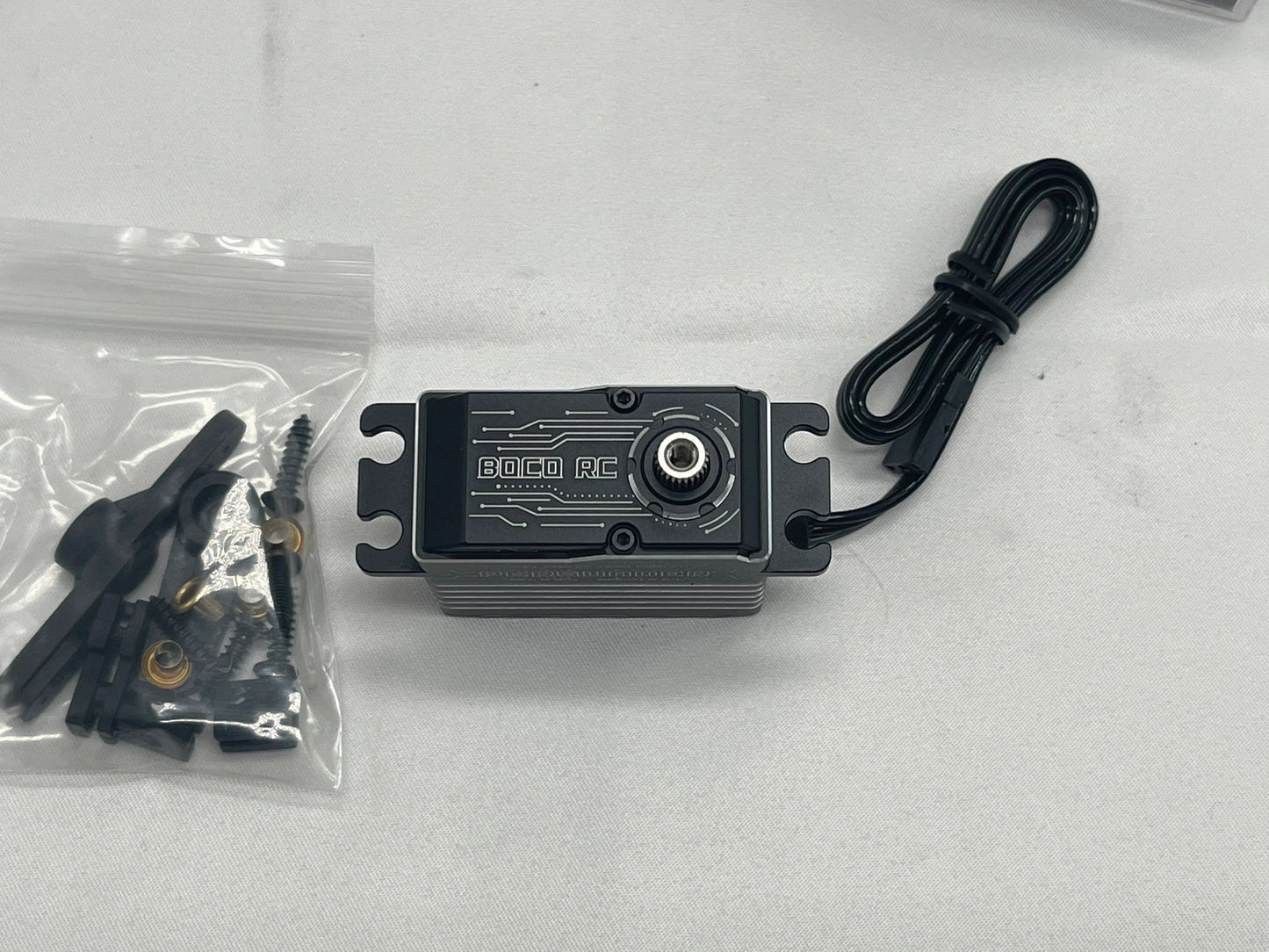

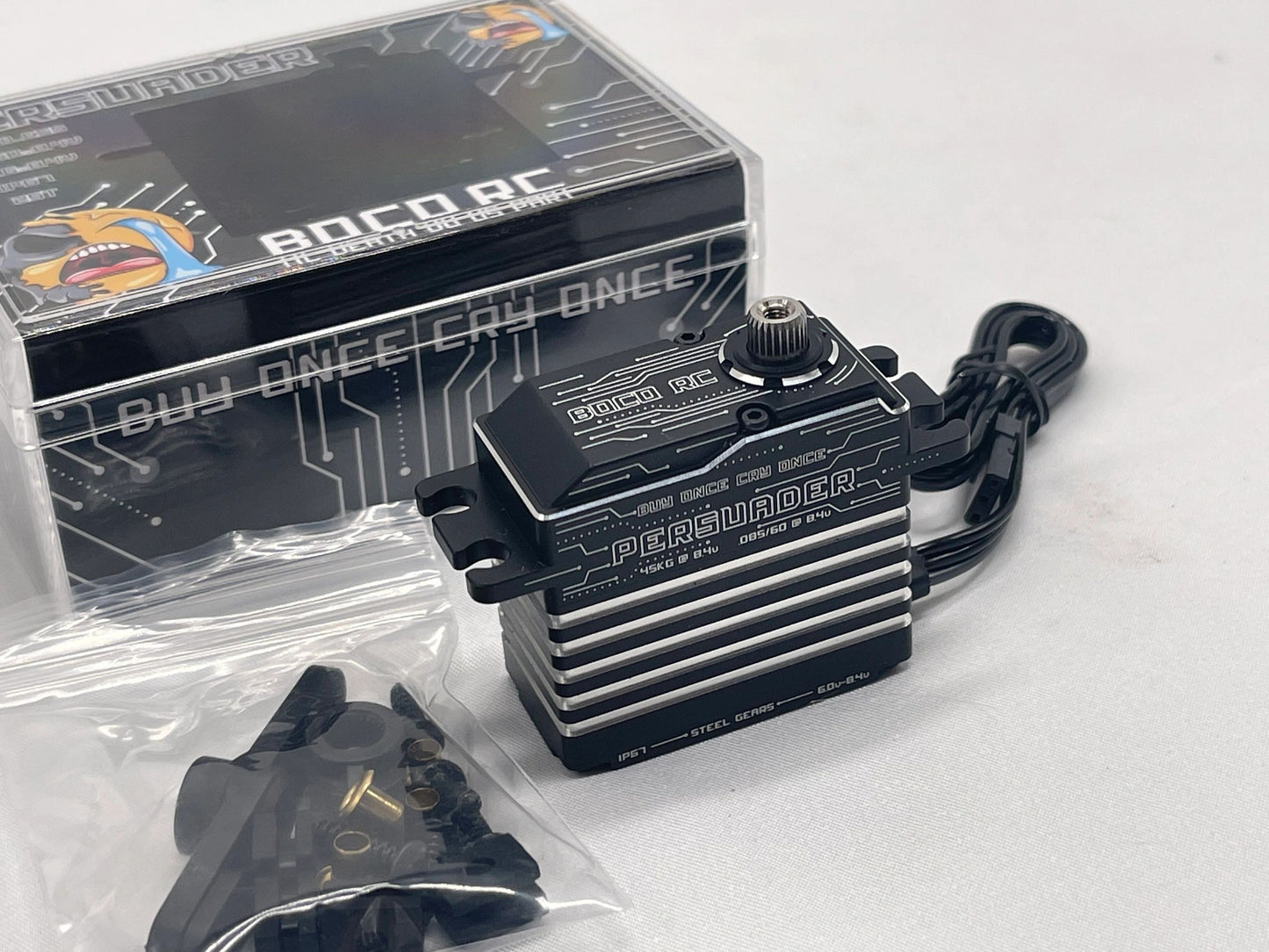

- BOCO Persuader 45KG servo
INSTALLATION NOTES
If you submarine your rig for extended periods, remove the bottom
plate and let the servo air dry just in case.
COMPATIBILITY
- Standard size
- Suggested Servo Mounts: Browse our BOCO RC Servo Mount collection
for your specific axle (AR45P, Capra, H10 Optic, Ascent, and more)
- Required Servo Horn: 25T spline
NOT QUITE WHAT YOU NEED?
- Heavy bashers or big-air rigs → BOCO Berserker (75kg, max abuse)
- Race-oriented or lightweight crawlers → BOCO Lil Spinner (34kg,
low profile, 4S direct power)
- Budget-conscious comp/trail builds → 1Tenth BMF695
WARRANTY
Lifetime gear set warranty for original owner. Electronics warranty:
1 year.
