BOCO RC - Low Life SOA for AR45 Straight Axle from the SCX10III
Does NOT fit Axial AR45P. Only fits the AR45S

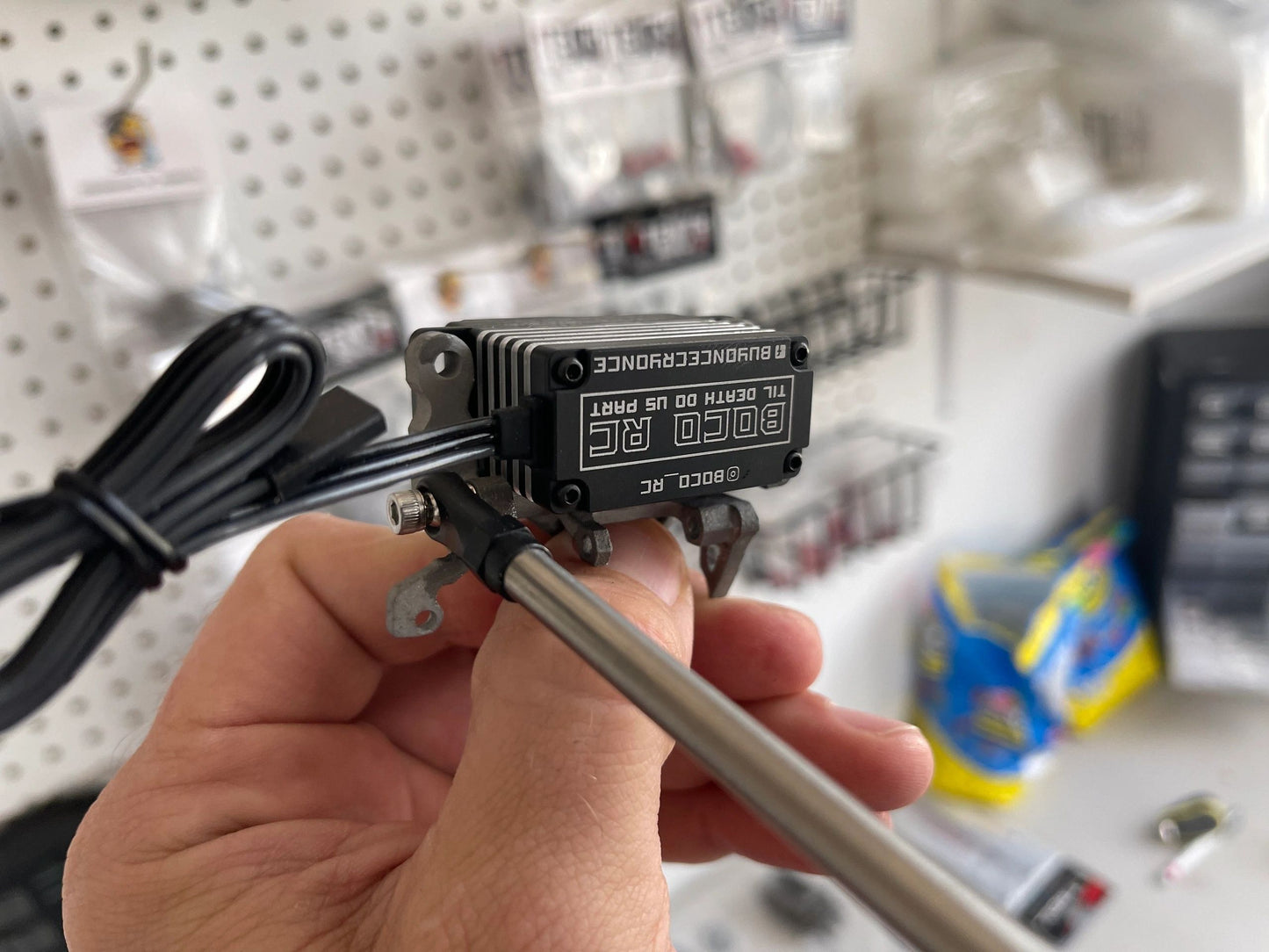

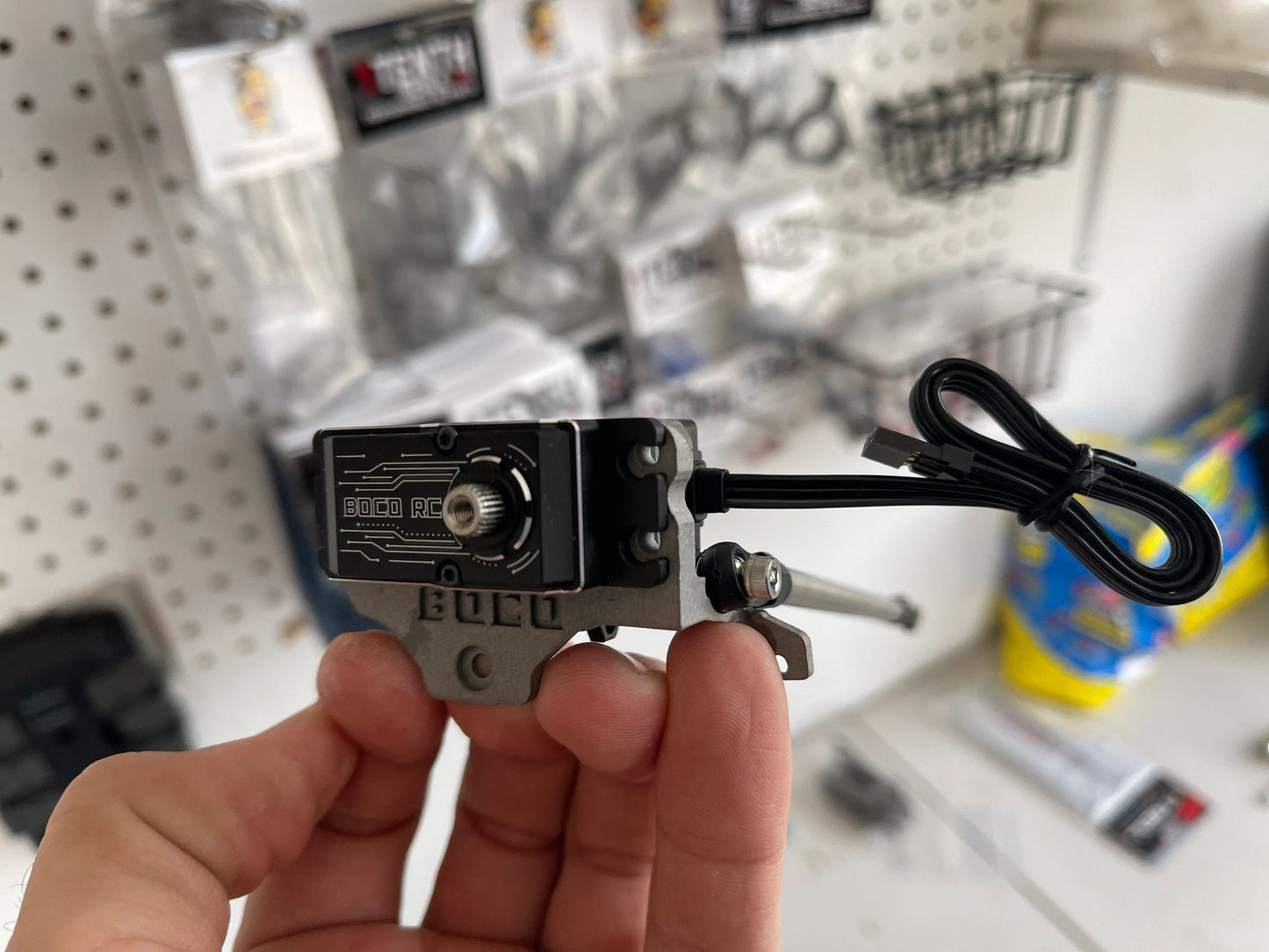

This piece allows you to mount a servo as low as possible on the Axial AR45 Straight axle.

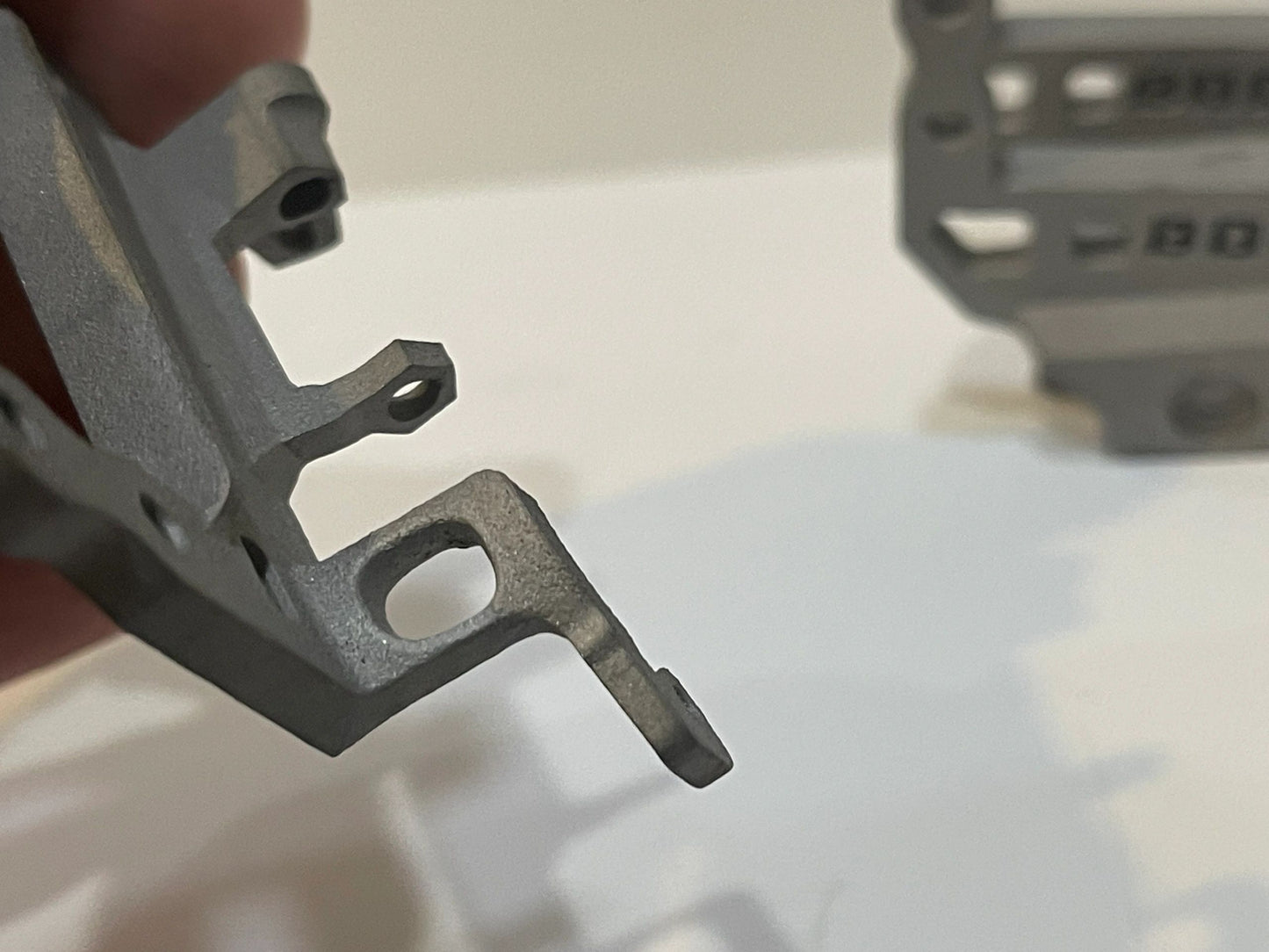

SOA has upper link mounting options for centered below servo or slightly raised to the side of the servo.
You'll need custom drag and/or tie rods to get full throw left to right. The horn sits just in front of drag link. The request from the LCG crowd was "make it as low as possible" so that's this - custom builder kinda of mount.
MATERIAL & CONSTRUCTION

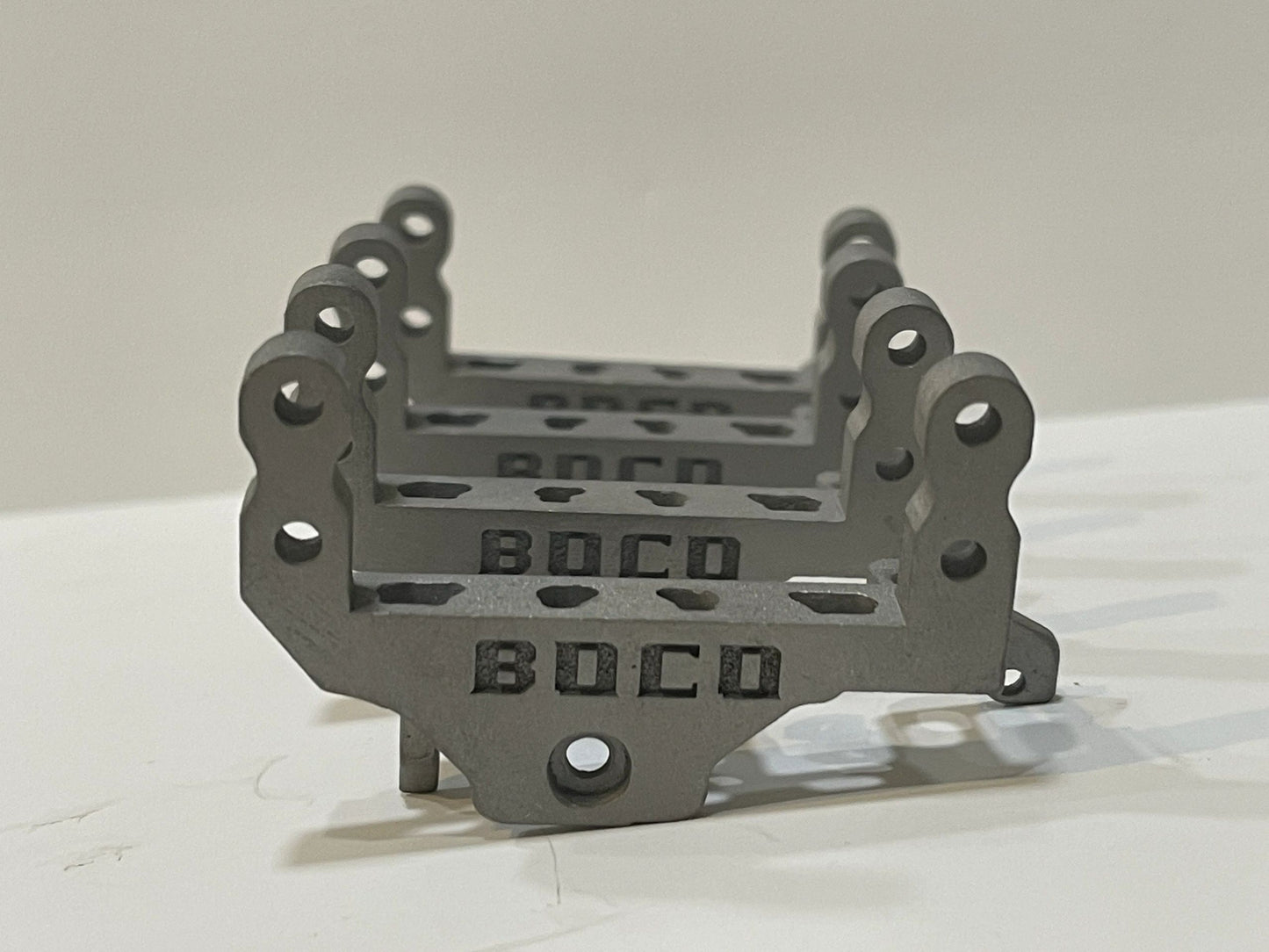

Material: 316L Stainless Steel
Manufacturing: DMLS or SLS additive
Finish: Flat semi granular

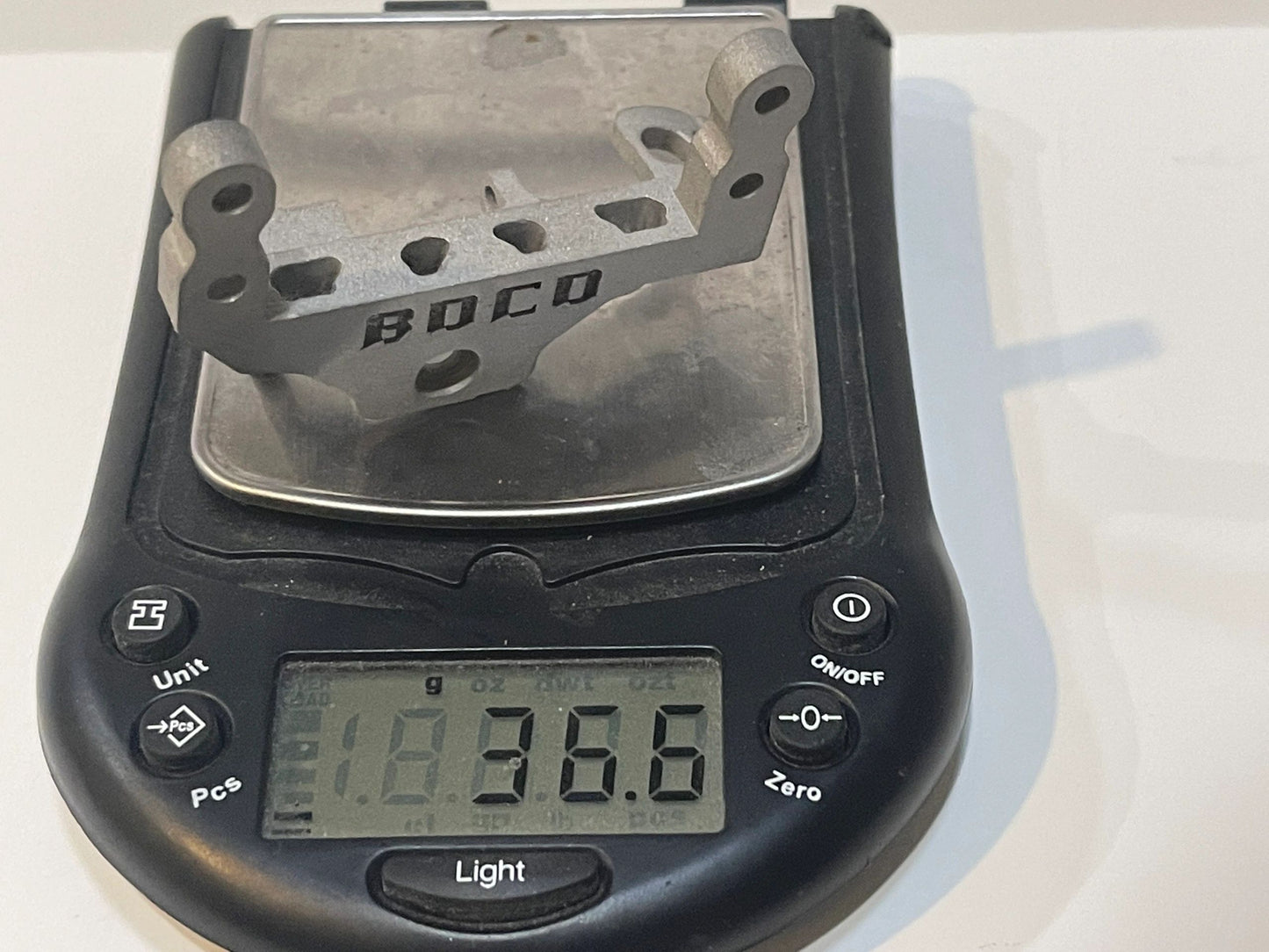

Weight: ~36g
Dimensions
L-19mm
W-66mm
H-33mm
Includes all hardware to secure on the axle and raised upper link mounts will be tapped for M3. Servo must be secured with nuts too.
All BOCO RC Servo Mounts come with a lifetime warranty against cracks or breaks.
