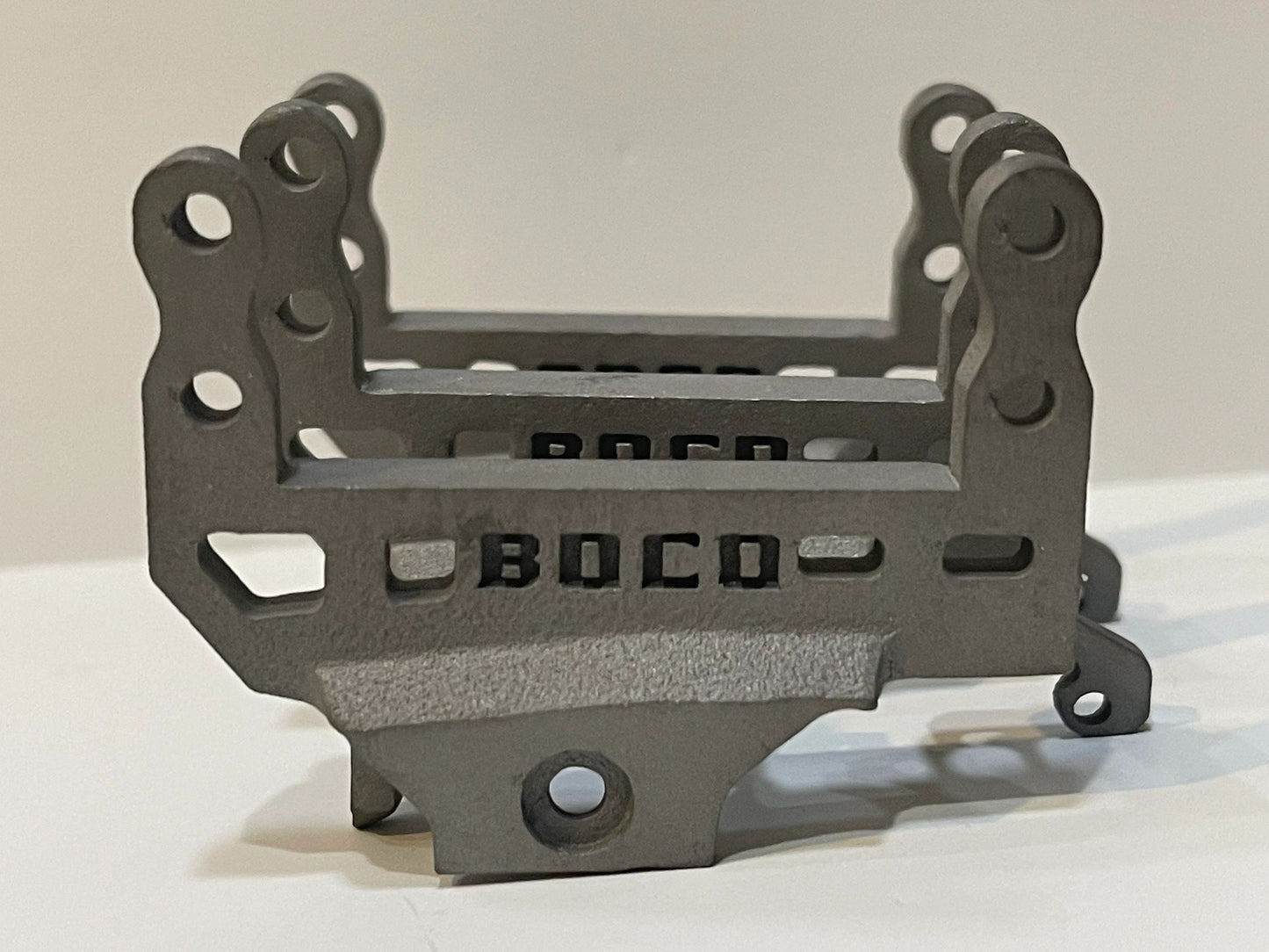

BOCO RC - Steel TallBoy SOA Mount for Axial AR45 Straight on the SCX10 III
Does NOT fit AR45P. Only fits Axial AR45S Straight Axle. Does NOT fit Treal 45S

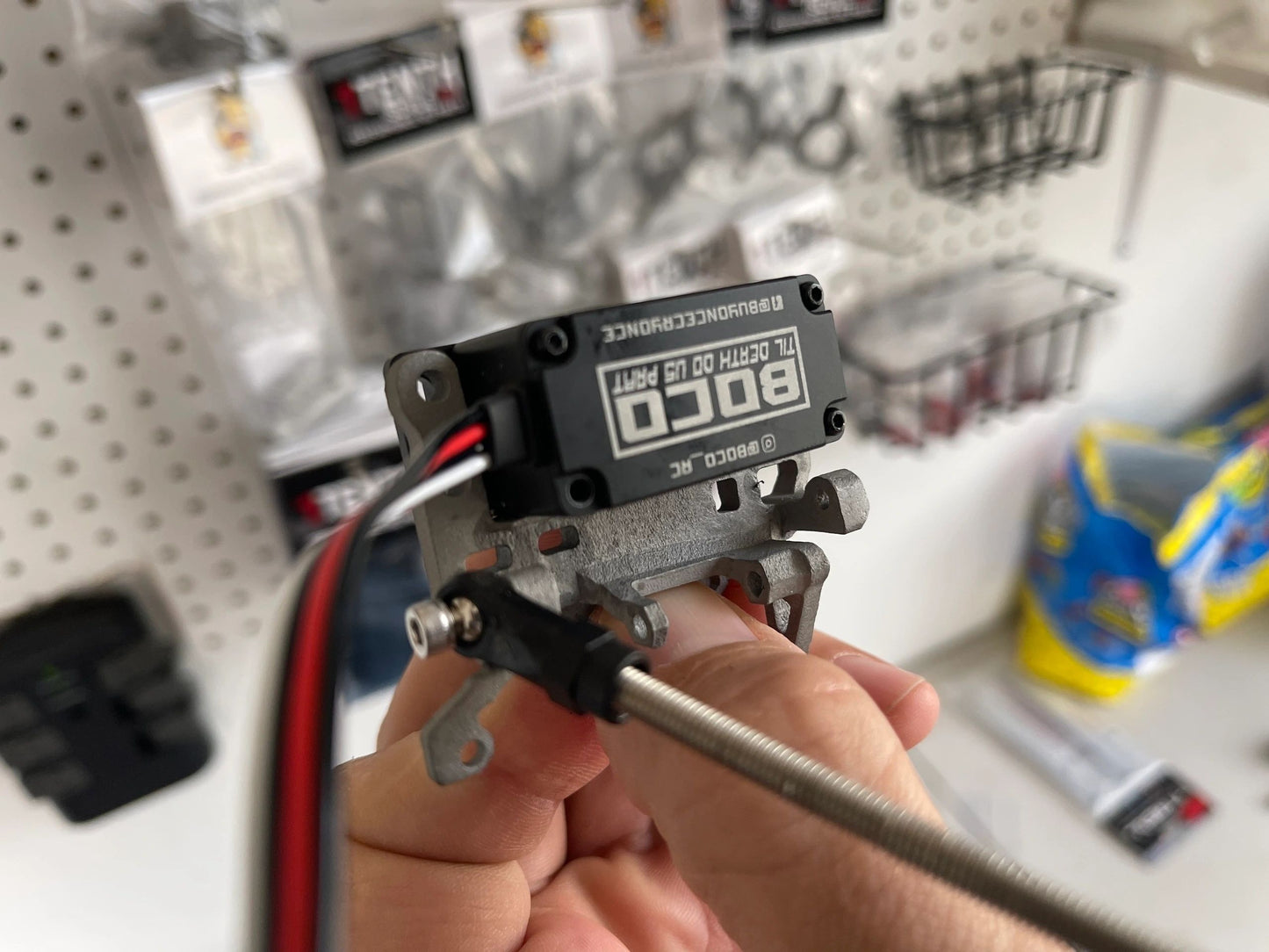

This piece allows you to mount a servo on the Axial AR45 Straight axle. You'll need custom drag link (panhard is usually long enough) but stock tie rod will work fine.

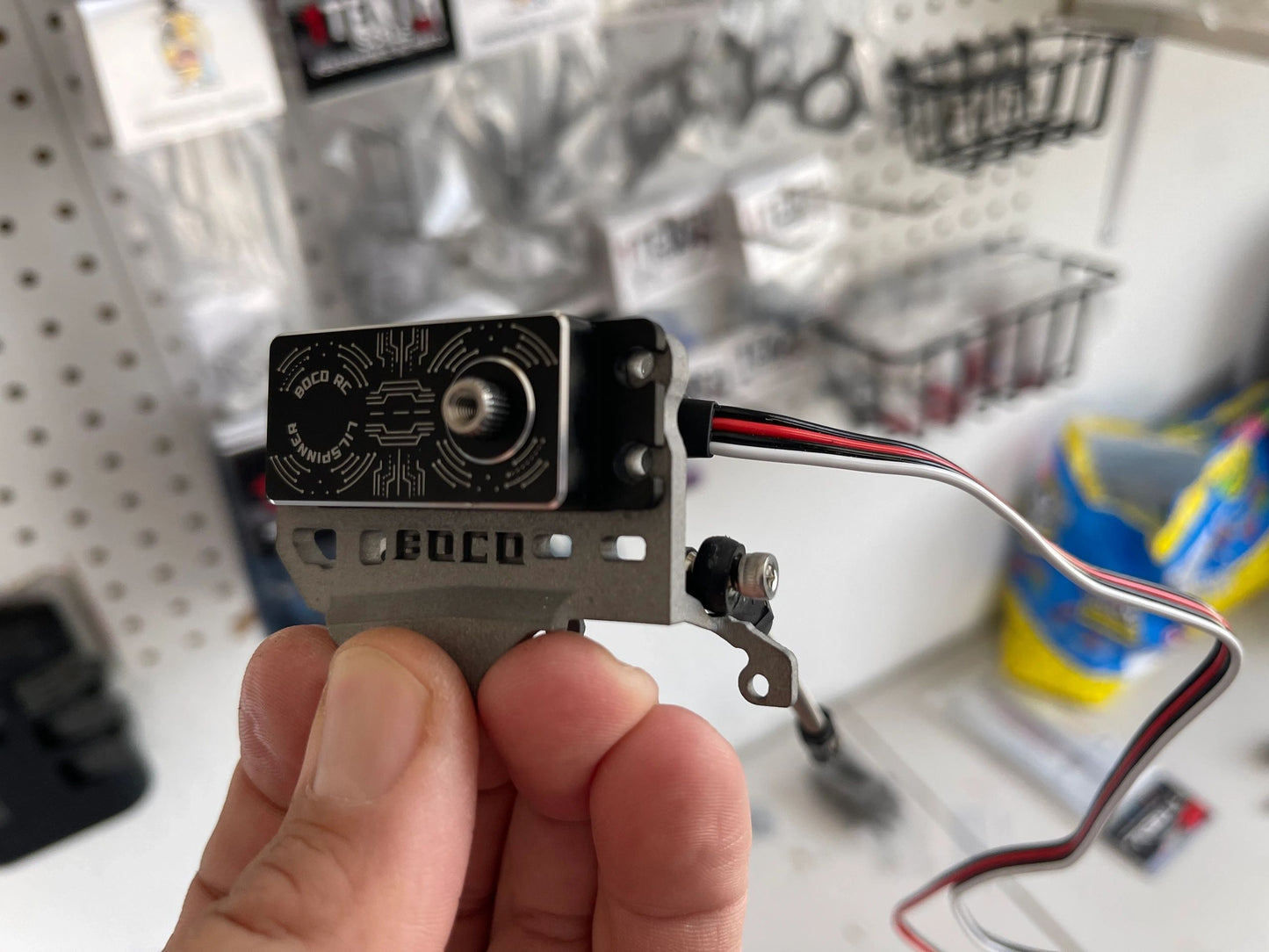

The servo sits a little higher and farther back compared to LowLife to make it an overall easier install. But not as low... Tallboy is a little heavier than lowlife too.
Two options for upper links - low and centered or high and spread apart. Low and centered is my preferred way to locate the axle but it can be tricky with some drivetrains.
MATERIAL & CONSTRUCTION
Material: A316L Stainless Steel
Manufacturing: DMLS or SLS additive
Finish: Flat semi granular

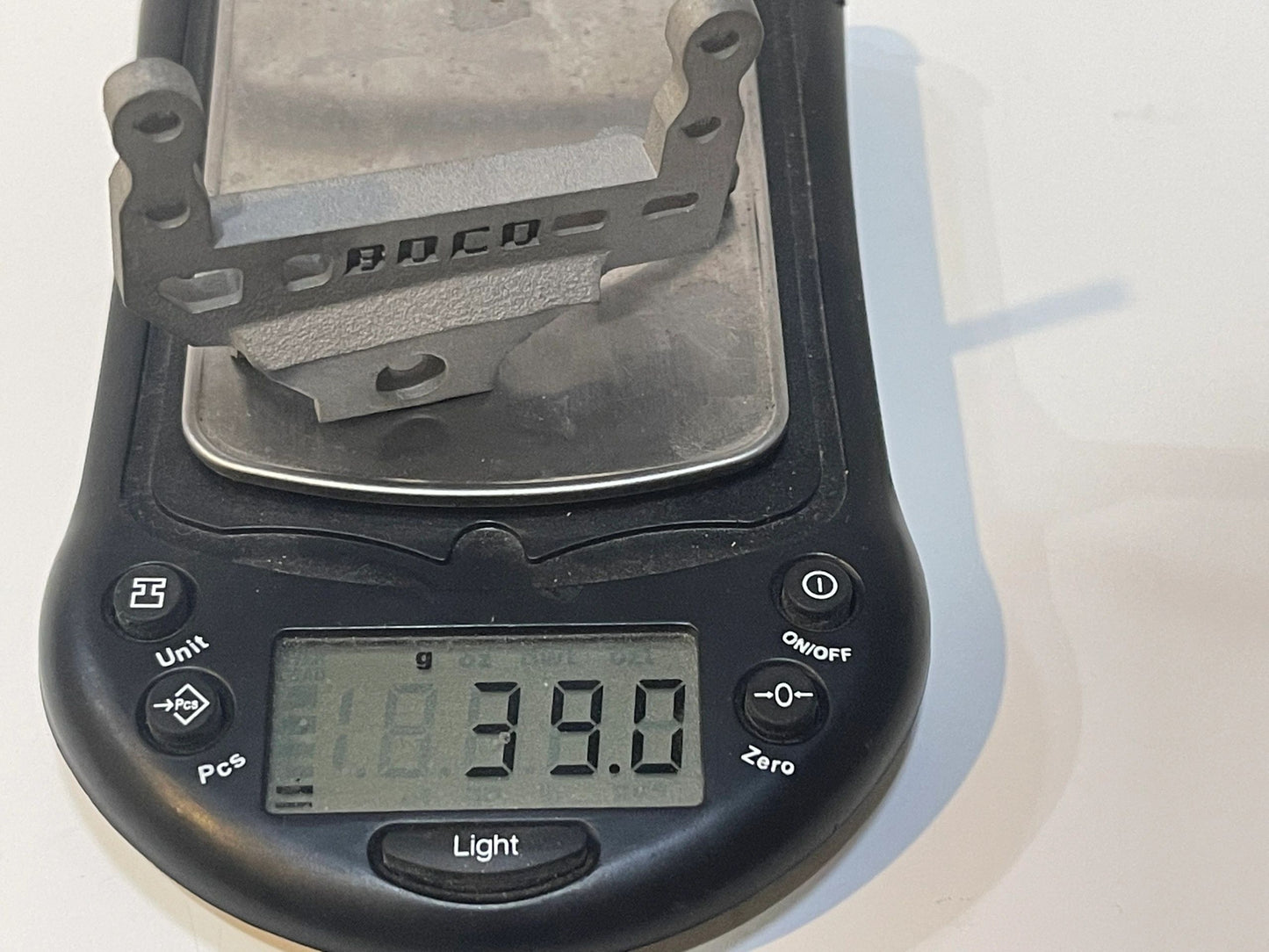

Weight: ~39g
Dimensions
L-10mm
W-86mm
H-56mm
Includes hardware required to mount to axle. You'll need some screws and nuts for the actual servo.
If you want a raw steel look you can use a wirewheel or other light abrasive to remove the top granular layer.
Not intended for a stock chassis but has been done. Easy install on most aftermarket flat rail chassis.
All BOCO RC Servo Mounts come with a lifetime warranty against cracks or breaks.
