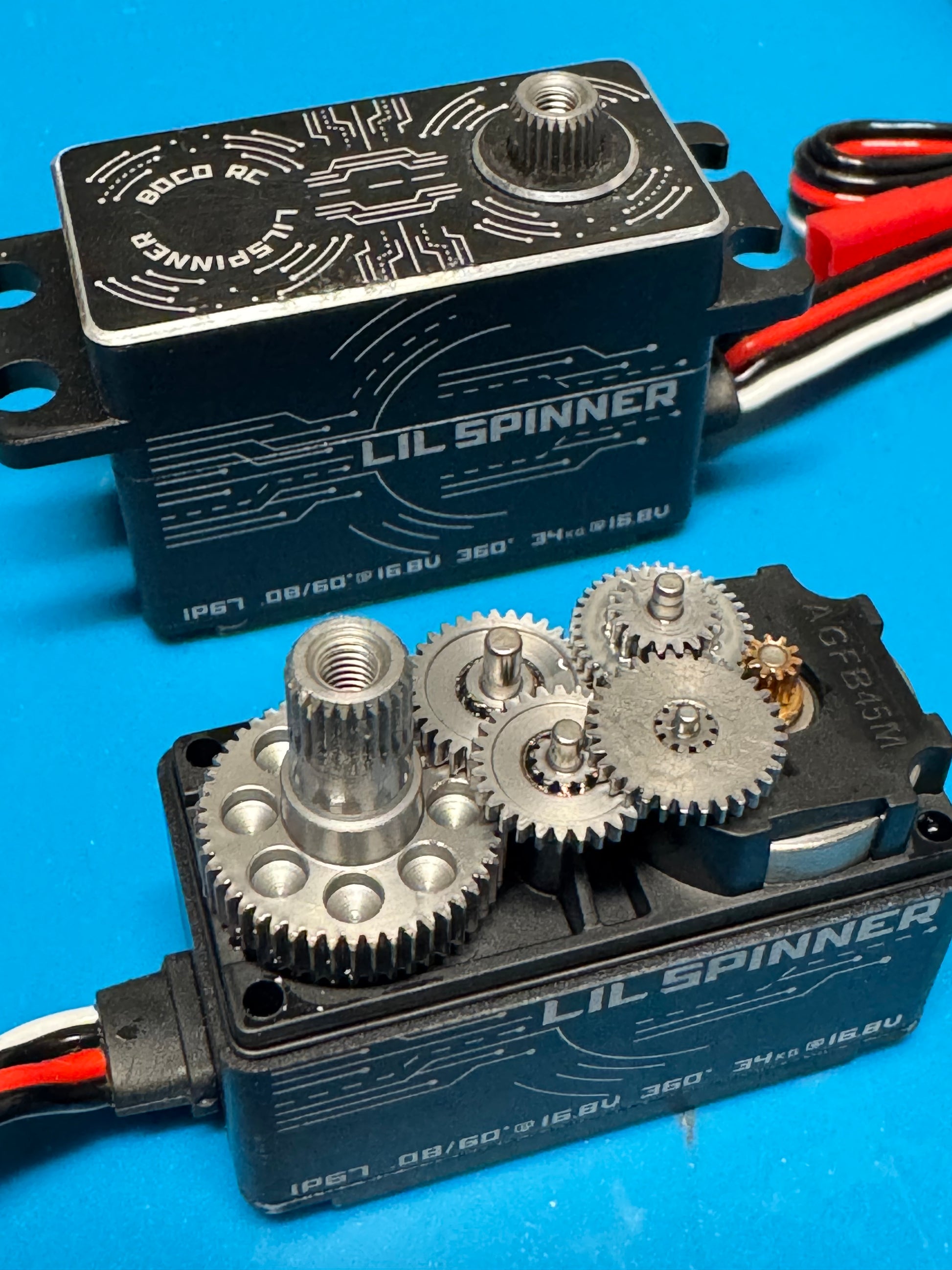

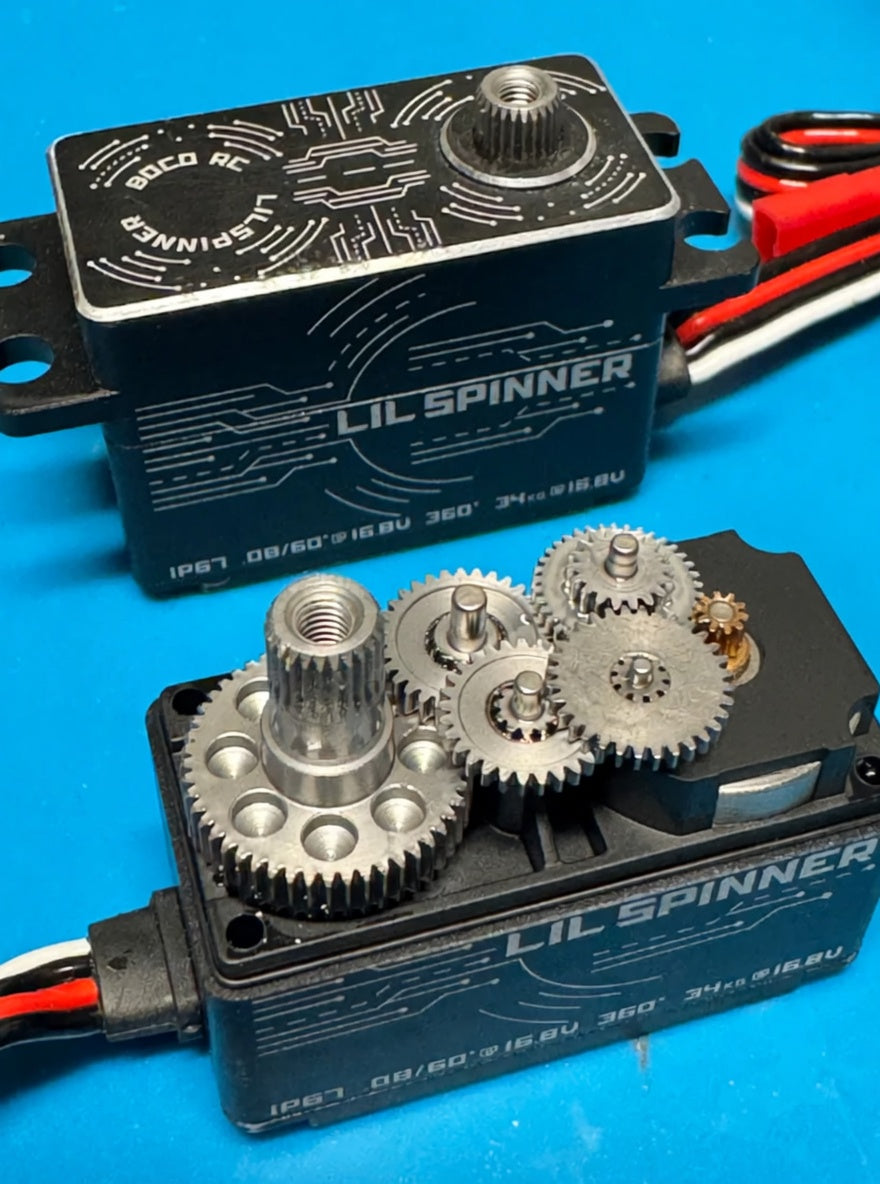

BOCO RC - Lil Spinner 34KG 4S Direct Power Low Profile Servo

Small, sexy, and quick. Low-profile, 4S, waterproof.

WP (IP67) · STL · BL · LP (Low Profile) · DP (Direct Power)

WHAT IT IS

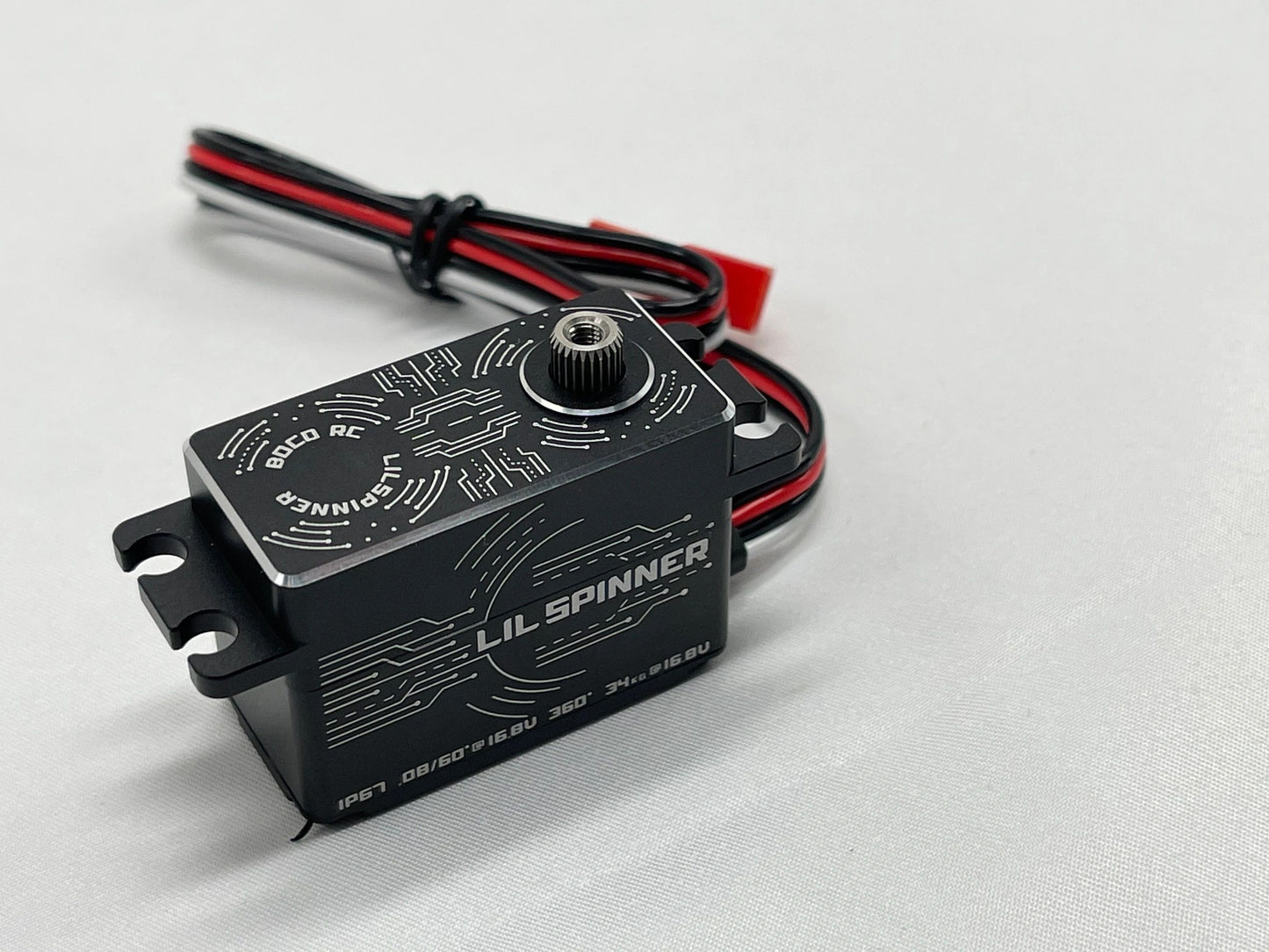

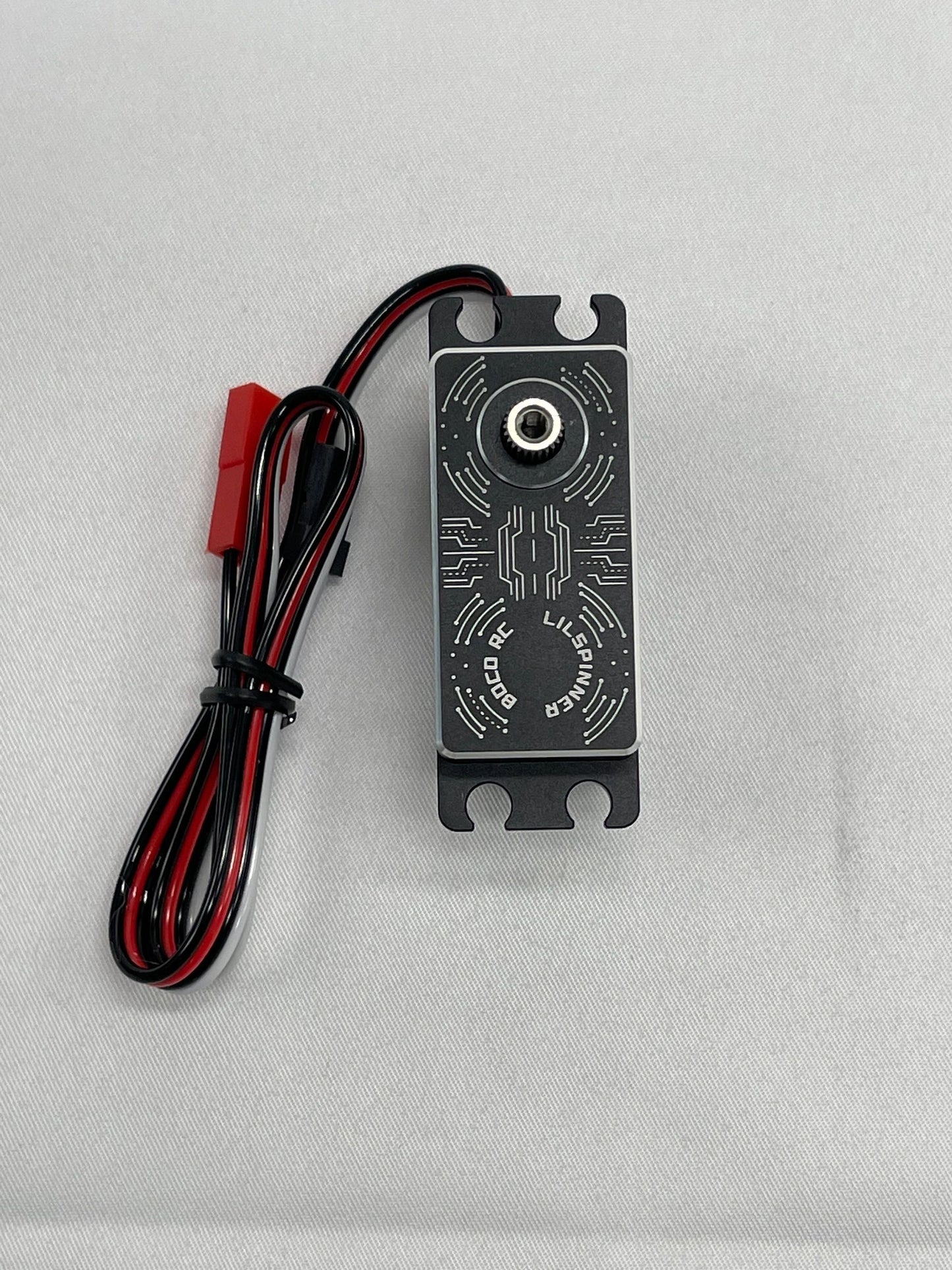

A 25T spline, IP67-waterproof, low-profile direct-power servo built
for lightweight rigs and high speed — 4S compatible with brushless
motor and stainless gears. Can be programmed as a Servo Winch before shipping.

IDEAL FOR
- Lightweight crawlers and trail rigs
- High-speed rock racers and low riders
- 4S direct-power builds where space is tight

WHY YOU WANT IT
When I designed the Lil Spinner I had lightweight rigs and high
speed in mind — it'll wiggle real good on 4S or hop a low rider
pretty quick. Stainless steel gears, full aluminum case, and a
brushless motor get the job done over and over. The low-profile
form factor and direct-power setup let you tuck it into builds
where a standard-size servo just won't fit. If you've got a 2.2"
or heavy rig, look at the Persuader or Berserker instead — but for
race and lightweight builds, the Lil Spinner is the answer.

POWER REQUIREMENTS
- Operating Voltage: 7.4V - 16.8V (direct power)
- Power Source: Direct from battery balance plug
- BEC Required: N/A — direct power
- Adapters Included: 3S and 4S balance plug direct-power adapters

SPECIFICATIONS

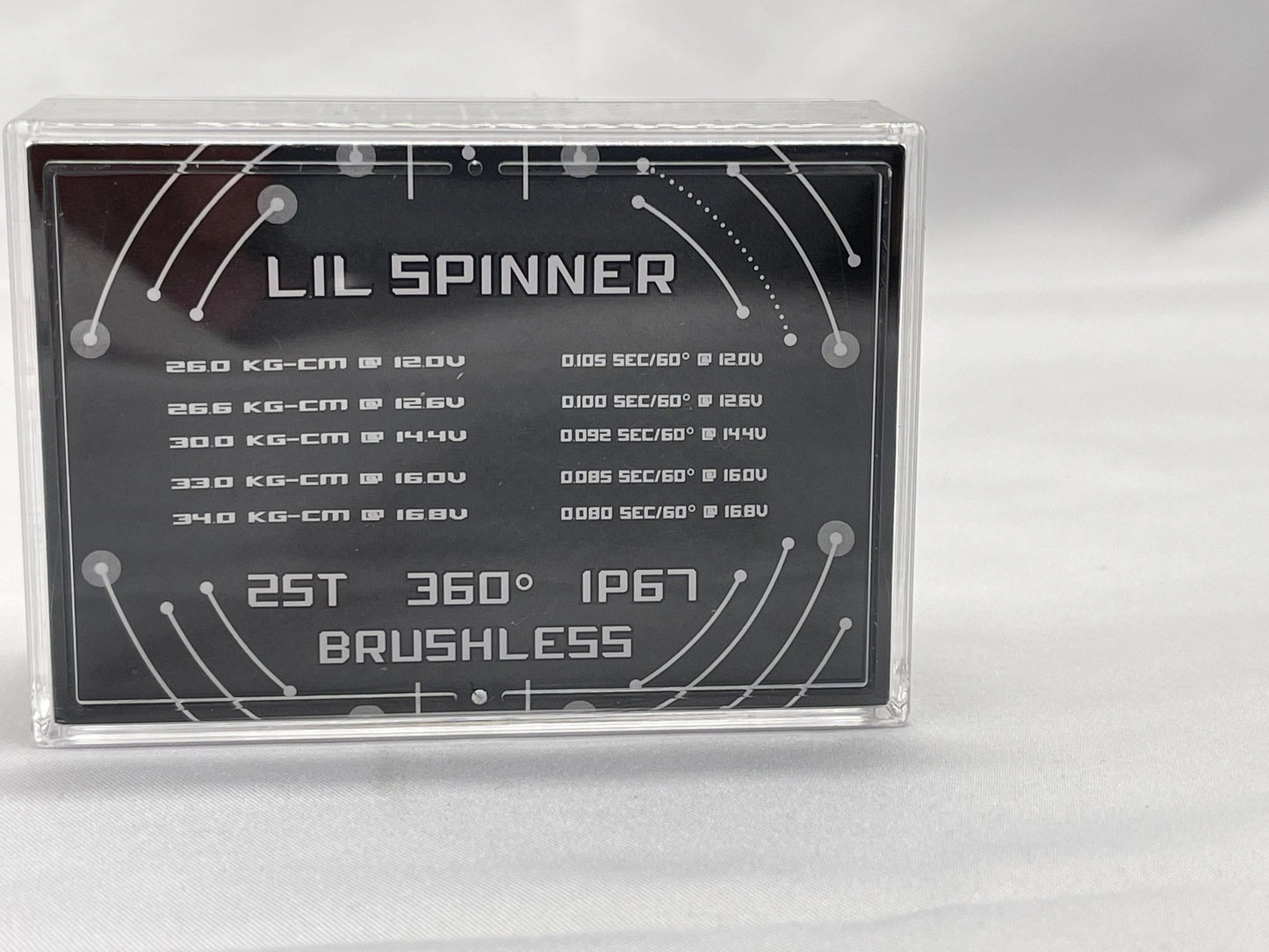

- Stall Torque: 25kg-cm (350oz-in) @ 12.0V, 29.5kg-cm (412oz-in)
  @ 14.4V, 32kg-cm (440oz-in) @ 16.0V, 34kg-cm (471oz-in) @ 16.8V
- Operating Speed: 0.105sec/60° @ 12.0V, 0.092sec/60° @ 14.4V,
  0.085sec/60° @ 16.0V, 0.080sec/60° @ 16.8V
- Motor Type: Brushless

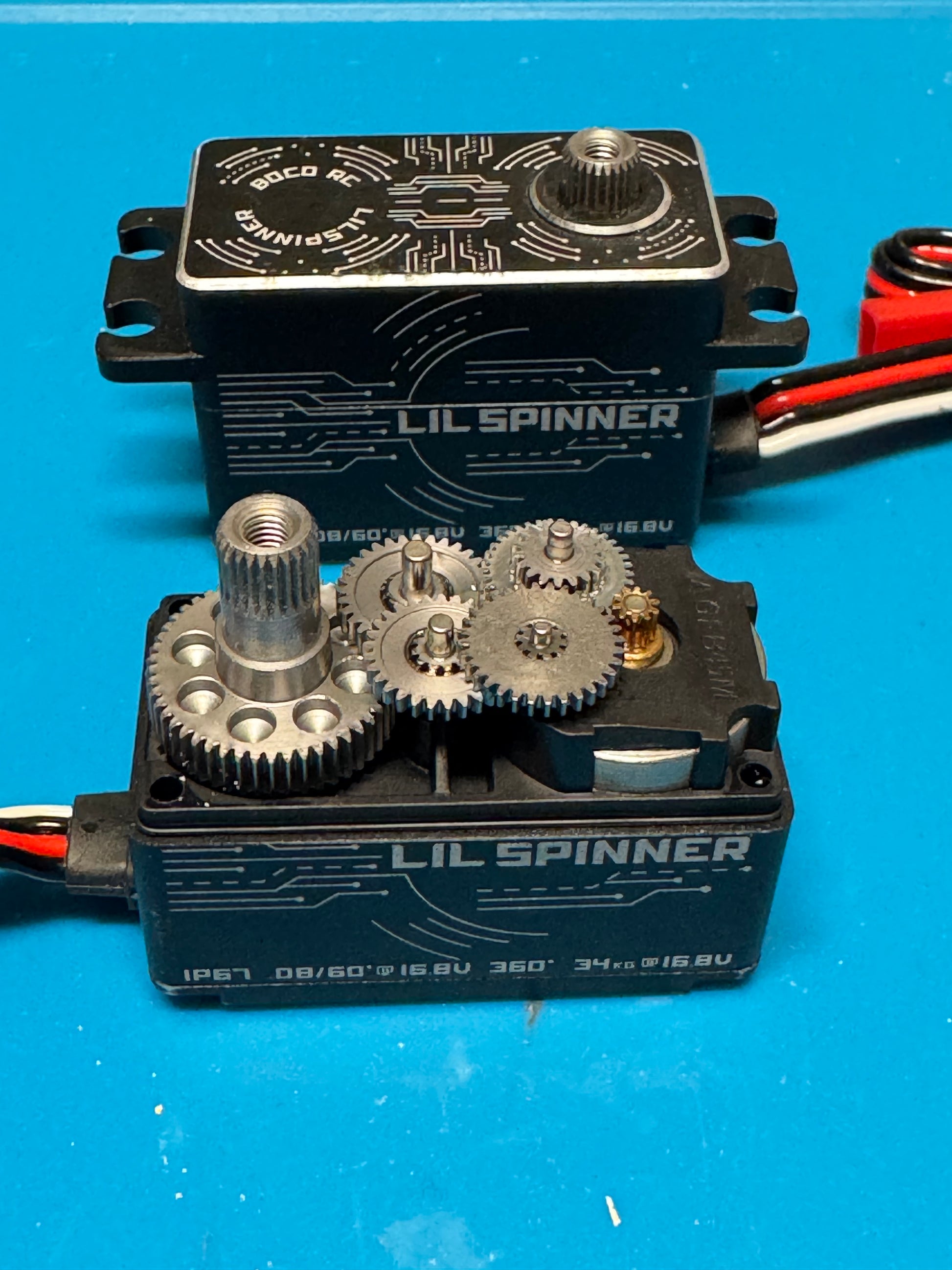

- Gear Material: Stainless steel
- Case Material: Full aluminum
- Output Spline: 25T
- Waterproof Rating: IP67
- Size: 1.60in x 0.82in x 1.2in (40.6mm x 20.8mm x 30.5mm)
- Weight: 66.5g (2.35oz)

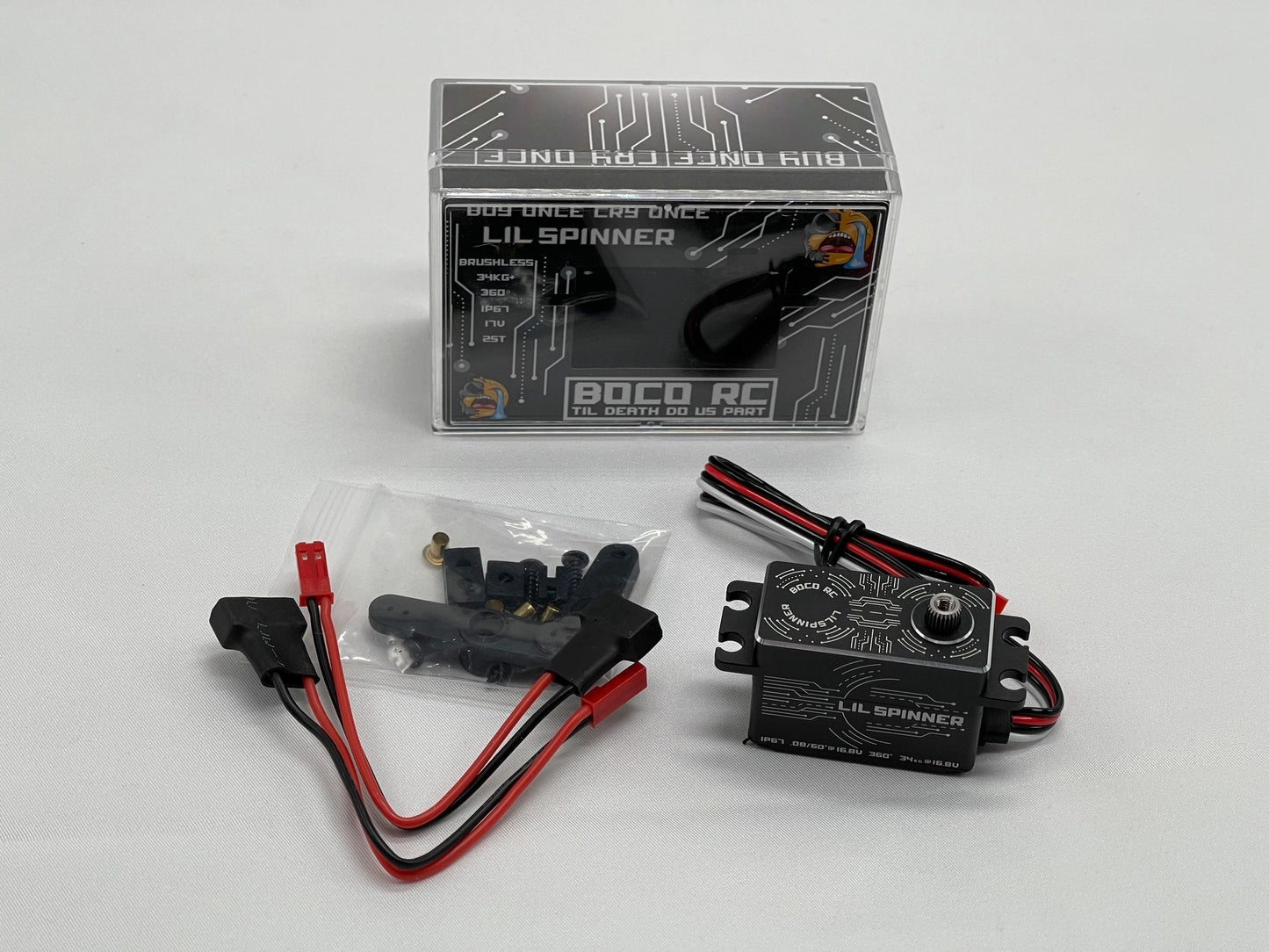

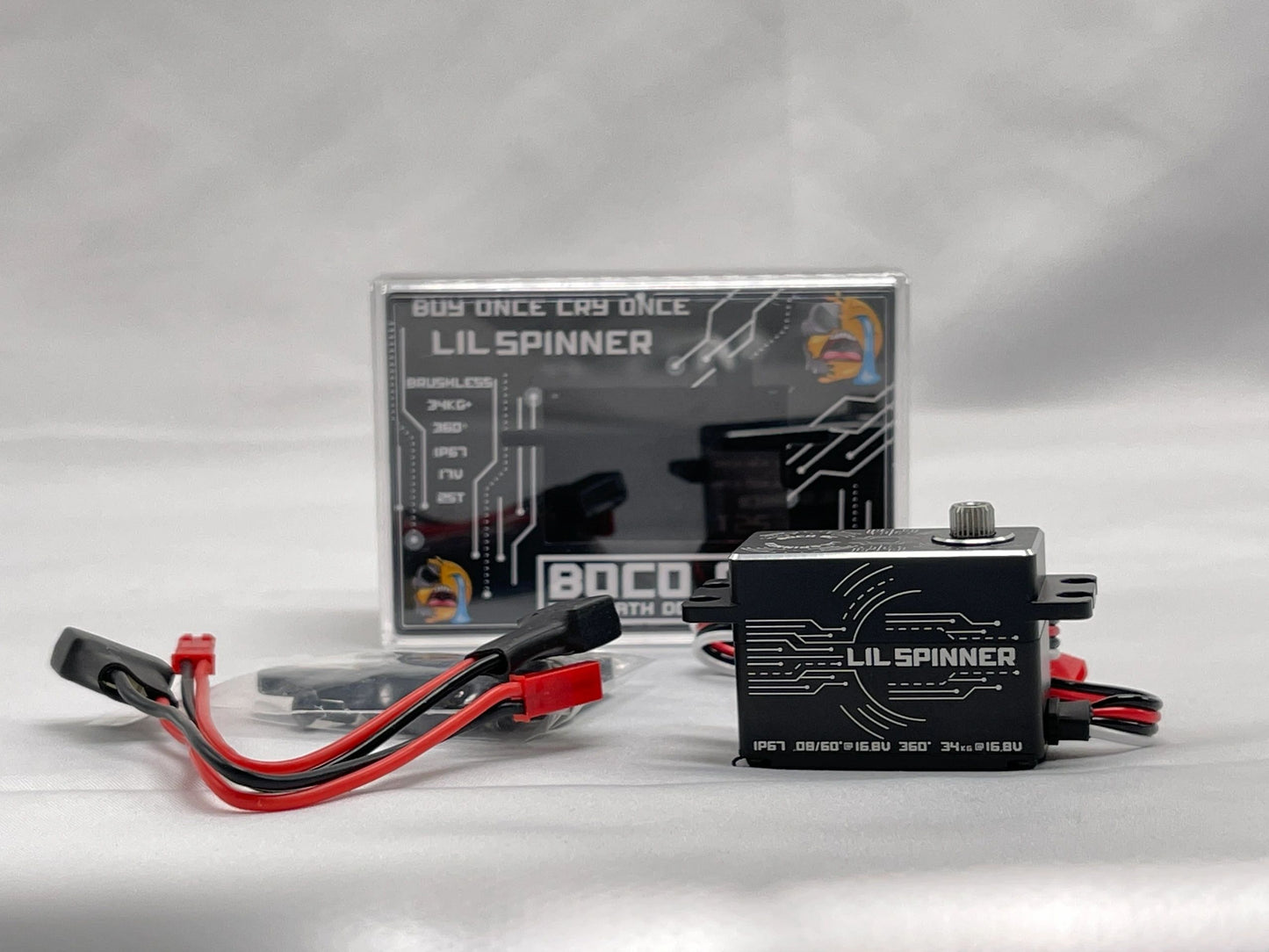

WHAT'S IN THE BOX
- BOCO Lil Spinner servo
- Plastic servo horns
- 3S & 4S balance plug direct-power adapters

INSTALLATION NOTES
Direct-power servo — must be powered from a battery balance plug,
not the receiver. Use the included 3S or 4S adapter to match your
pack. If you submarine your rig for extended periods, remove the
bottom cap and let the servo air dry just in case.

COMPATIBILITY
- Low profile size
- Suggested Servo Mounts: Browse our BOCO RC low-profile servo
  mount collection for your specific axle
- Required Servo Horn: 25T spline (plastic horns included)

NOT QUITE WHAT YOU NEED?
- Heavy bashers or big-air rigs → BOCO Berserker (75kg, max abuse)
- General-purpose crawlers and bouncers → BOCO Persuader (45kg,
  the "jack of all trades")
- Low-voltage receiver-power builds → BOCO Persuader

WARRANTY
Lifetime gear set warranty for original owner. Electronics warranty:
1 year bumper-to-bumper.
