BOCO RC - Berserker 74KG 25T Steel Gear Servo
BOCO RC - Berserker 74KG 25T Steel Gear Servo
Couldn't load pickup availability
When you crave unstoppable power and unwavering reliability - unleash the Berserker. Engineered to endure and conquer any challenge. With right at 1000ozin of torque this servo can handle big wheel and tire combos or wiggle a heavy rig nose down.
Thick 416 steel gears, high chrome shafts, full aluminum case, and lots of ball bearings come together to make a stout servo.
A powerful BEC is necessary to fully utilize this servo. Compatible options include the Mamba X, Monster X, and certain Hobbywing - however, it is recommended to check your ESC's specifications beforehand. This servo draws around 7A fully loaded, and some RTR ESCs or the 1080 model may struggle to handle it, resulting in brownouts and decreased performance.
While a glitch buster or capacitor may provide some assistance, a strong BEC is the most effective solution.
25T Digital Brushless Motor
Full Aluminum CNC Case
Stainless Steel Gears
Quad Ball Bearing
IP67 Waterproof

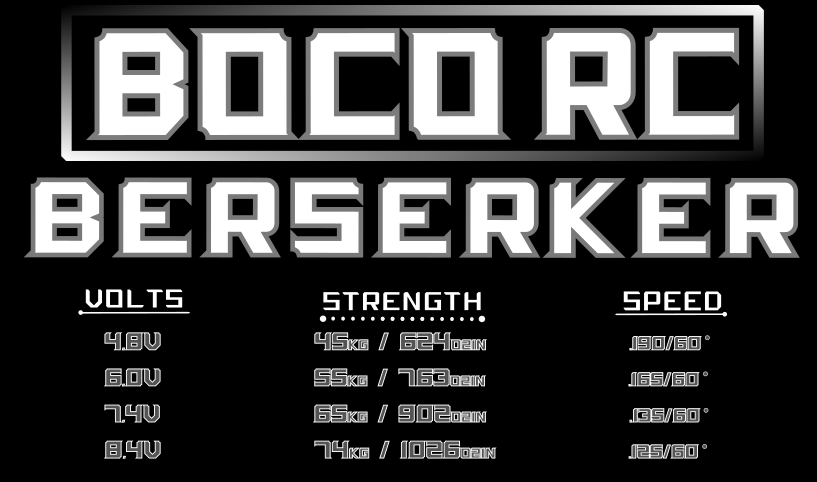

Stall Torque
45kg-cm(625oz-in)@4.8V
55kg-cm(764oz-in)@6.0V
65kg-cm(903oz-in)@7.4V
74kg-cm(1028oz-in)@8.4V
Operating Speed
0.190sec/60°@4.8V
0.165sec/60°@6.0V
0.135sec/60°@7.4V
0.125sec/60°@8.4V
Loading Current
5000mA@4.8V
5800mA@6.0V
6800mA@7.4V
7400mA@8.4V
Servo comes with our Buy Once Cry Once lifetime gear set warranty for original owner. One year electronics coverage.
If you ever break or bend a gear just let us know and we'll get you a set!
An external BEC or "glitch buster" capacitor can improve the performance of RTR or other ESCs with weak BEC. Otherwise, this servo may cause brownouts on systems with a weak BEC. In case of extended submersion, remember to remove the bottom plate and let the servo air dry.
If you submarine your rig for extended periods please remember to remove the bottom plate and let the servo air dry just in case.
