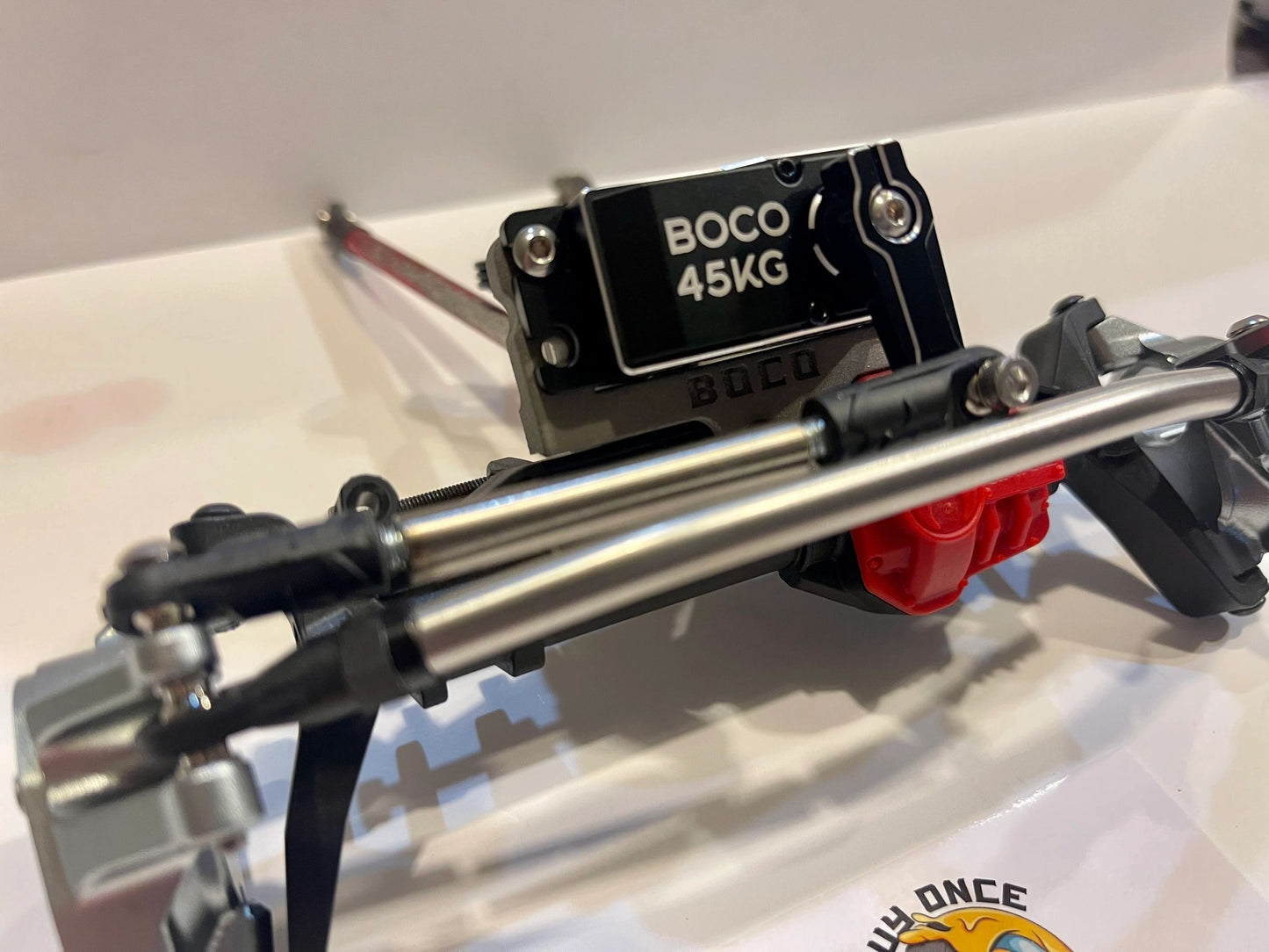

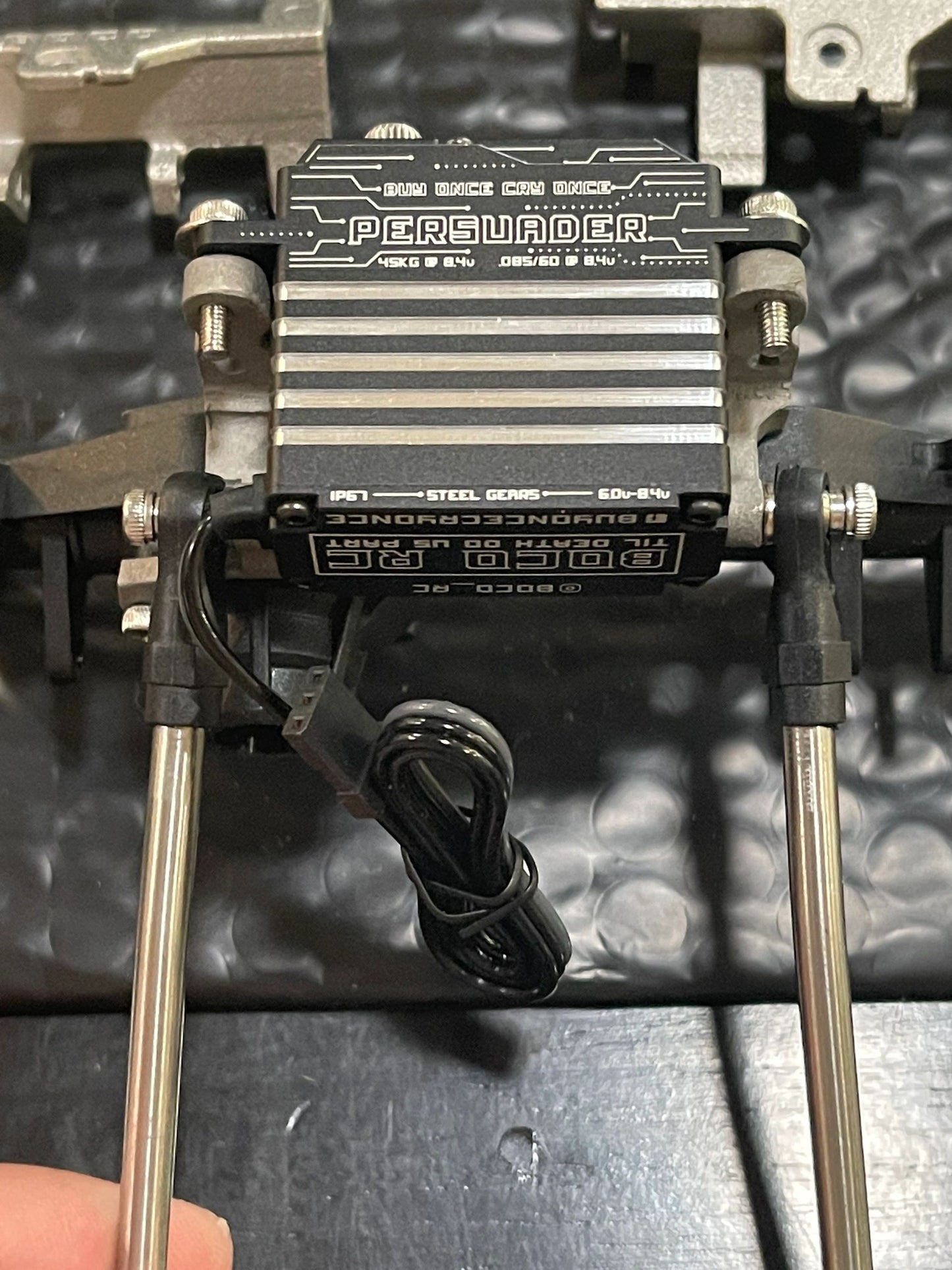

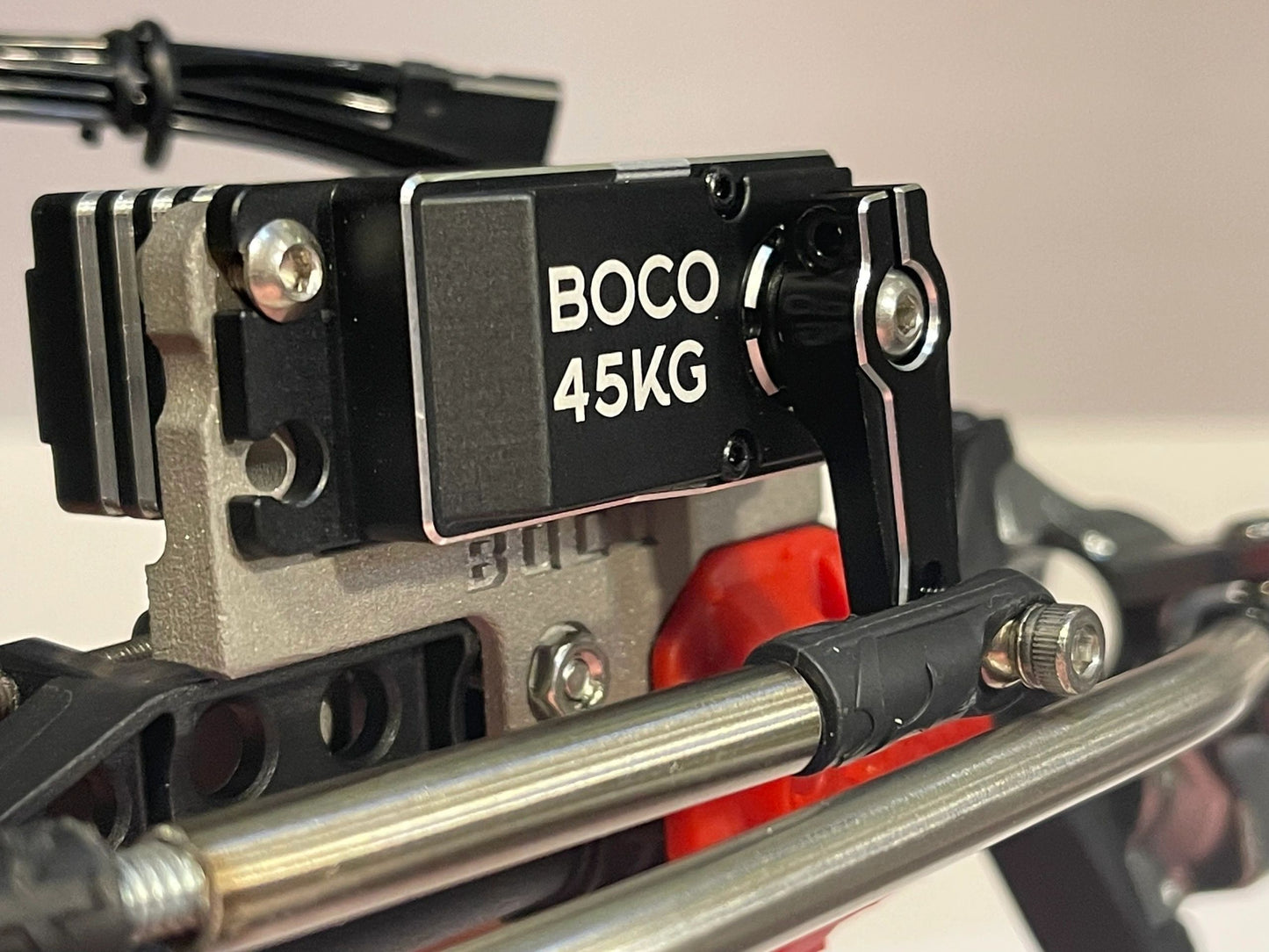

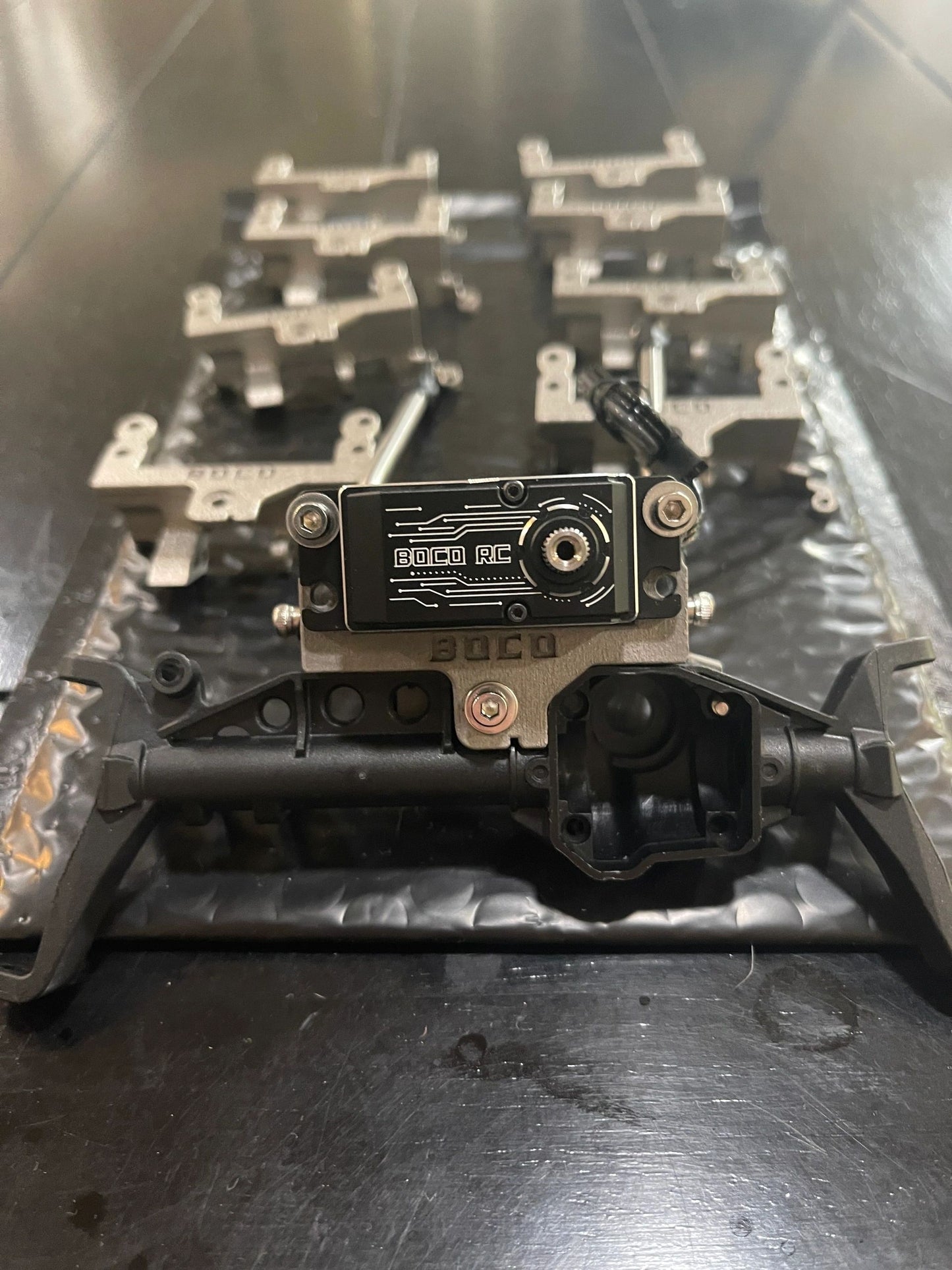

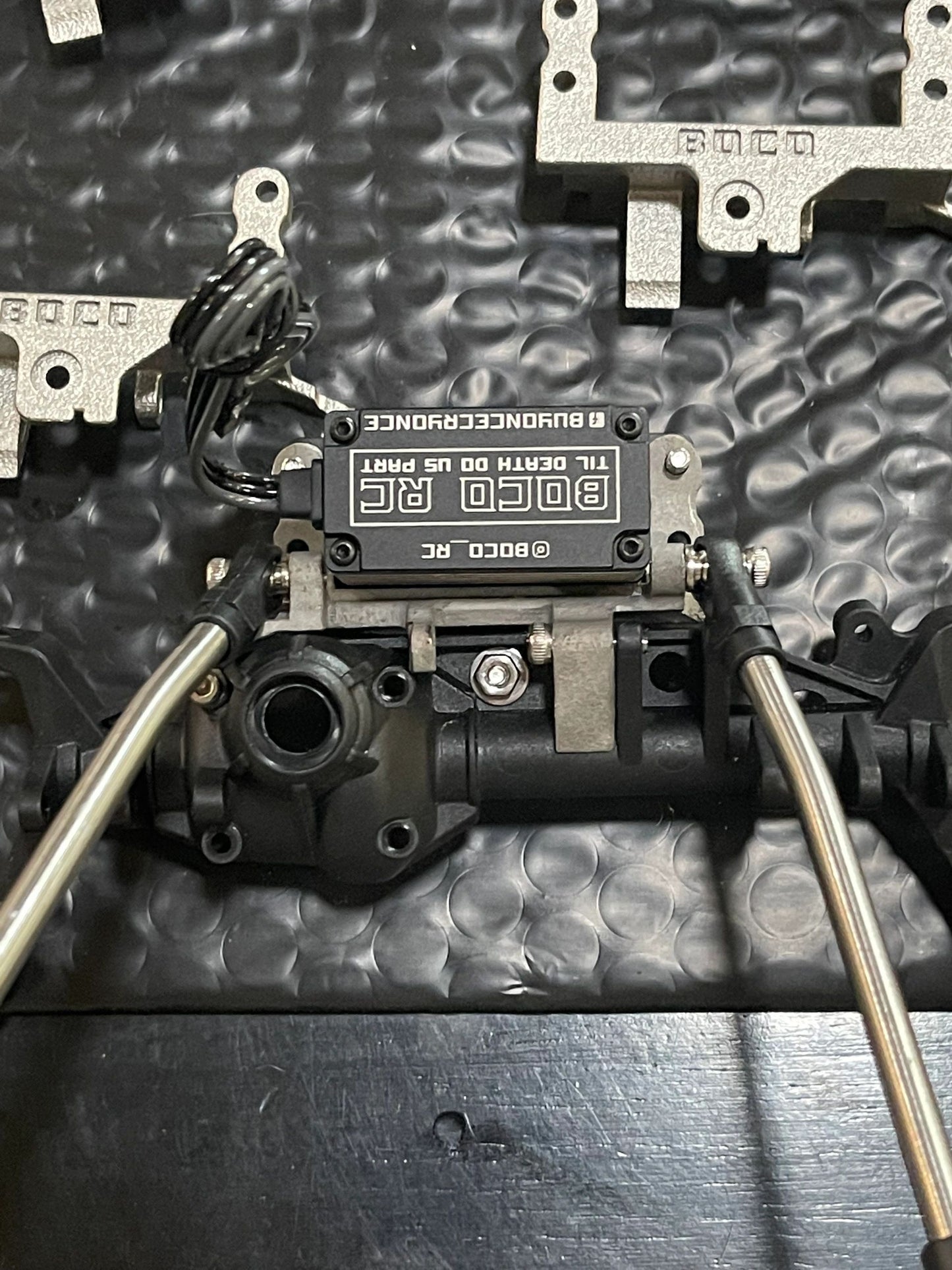

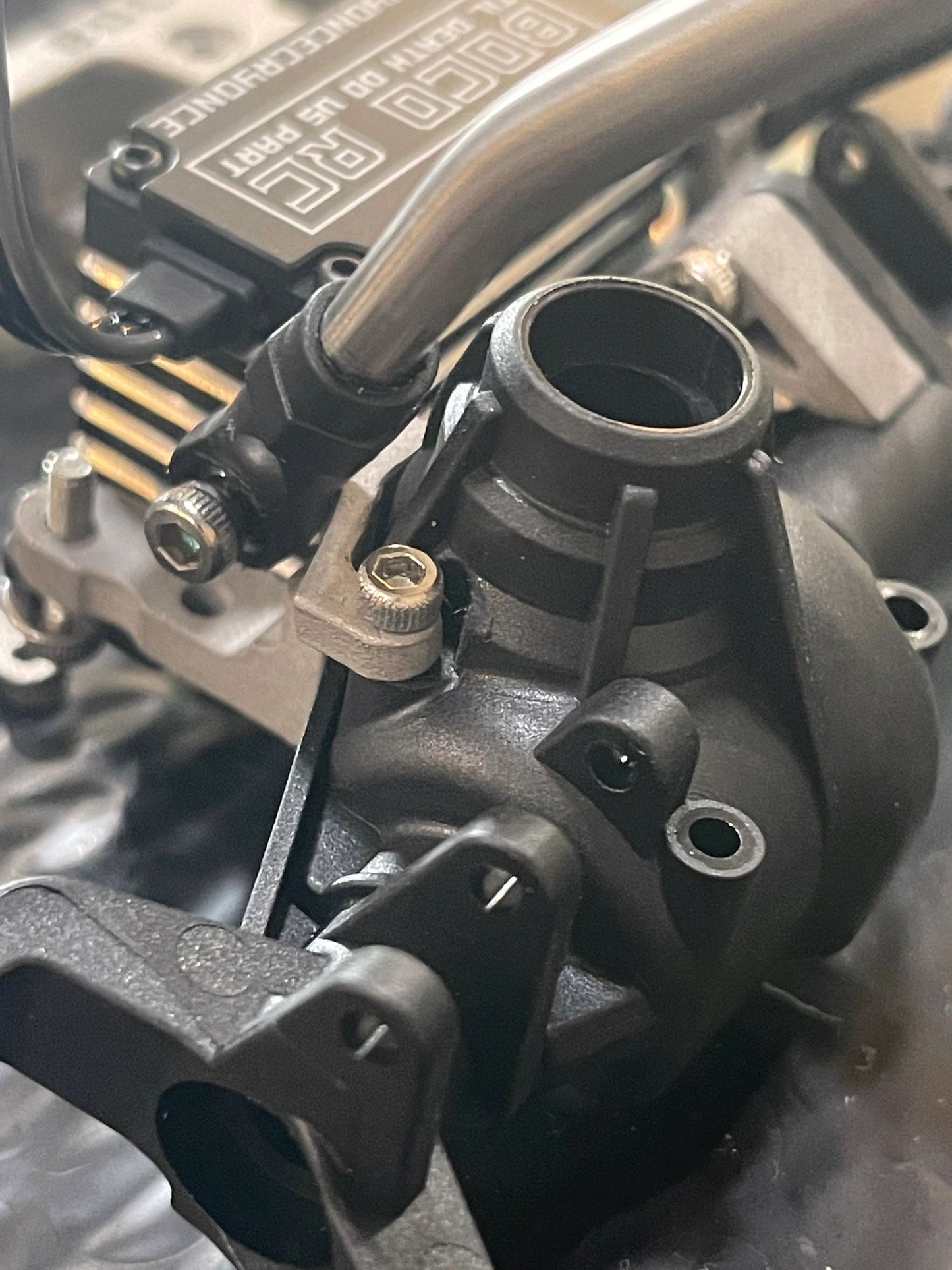

WHAT IT IS A 316L stainless steel SOA (Servo On Axle) and 4-link adapter for the Axial AR45 Portal axle, providing a rigid mounting platform for both the servo and upper links using stock-style hardware.
WHY YOU WANT IT When you're 4-linking your AR45P you want maximum rigidity without guesswork. This form-fit design uses the diff cover screw, through-truss screw, and the existing link mount to create one of the most rigid SOA setups available. Two upper link options (centered or raised/side) let you tune around your motor, trans, and skid clearance.
COMPATIBILITY - Axle: Axial AR45 Portal - Chassis/Rig: SCX10 III platforms using AR45P - Servo Size: Standard or low profile - Hardware: Mostly reuses stock; raised upper link mounts included - Does NOT fit: Vitavon AR45P, Treal AR45P (axle housing geometry differs)

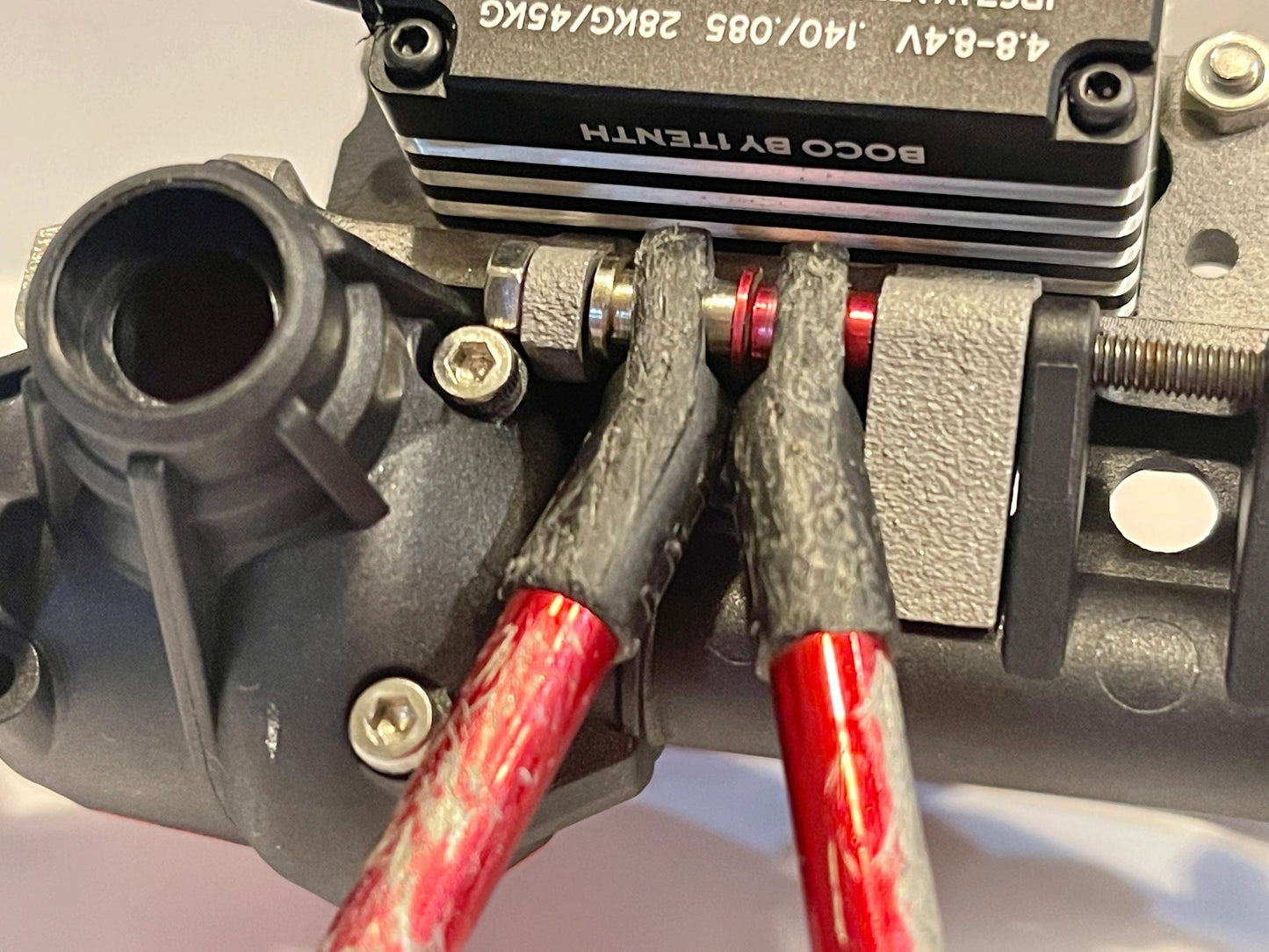

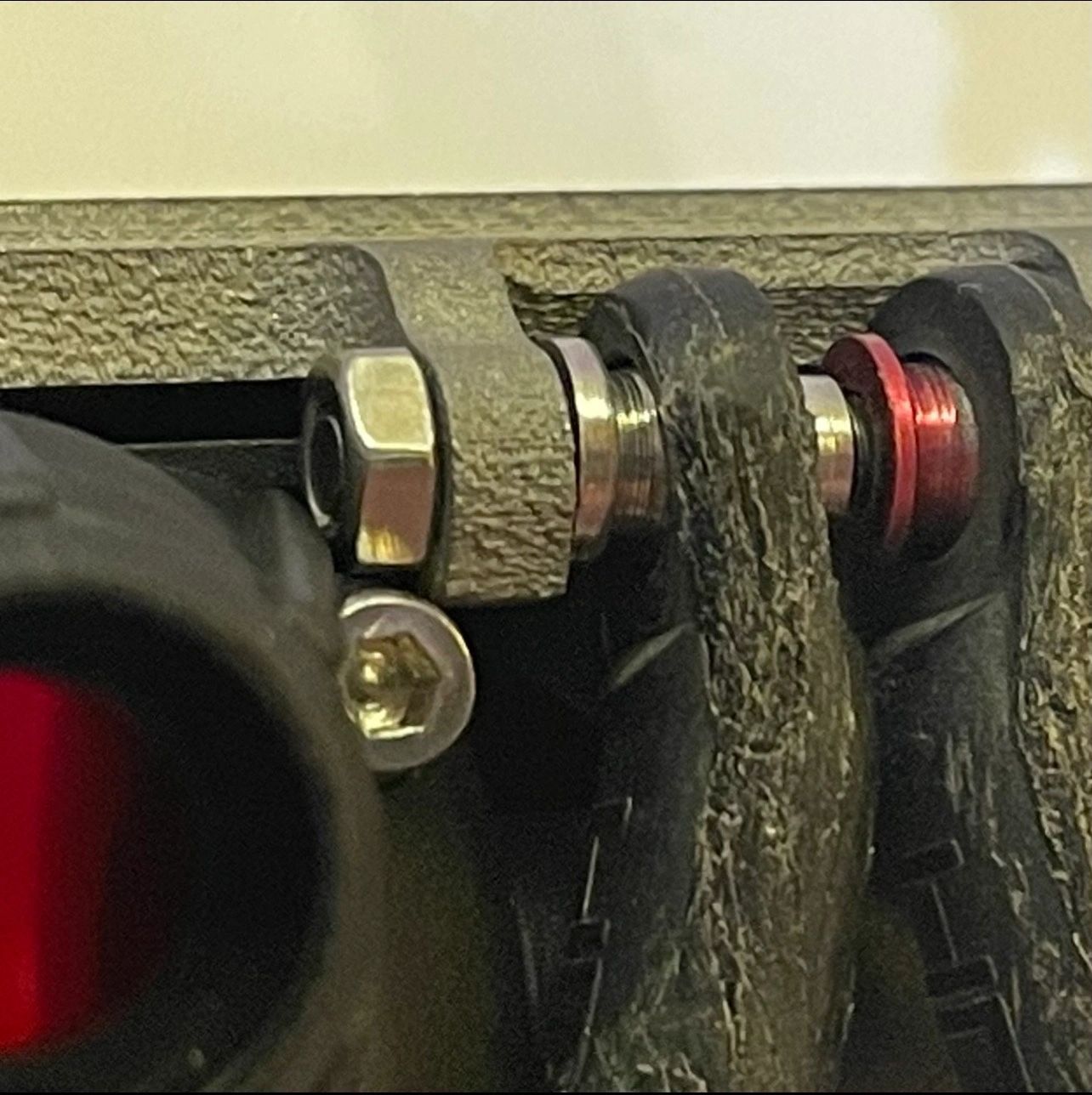

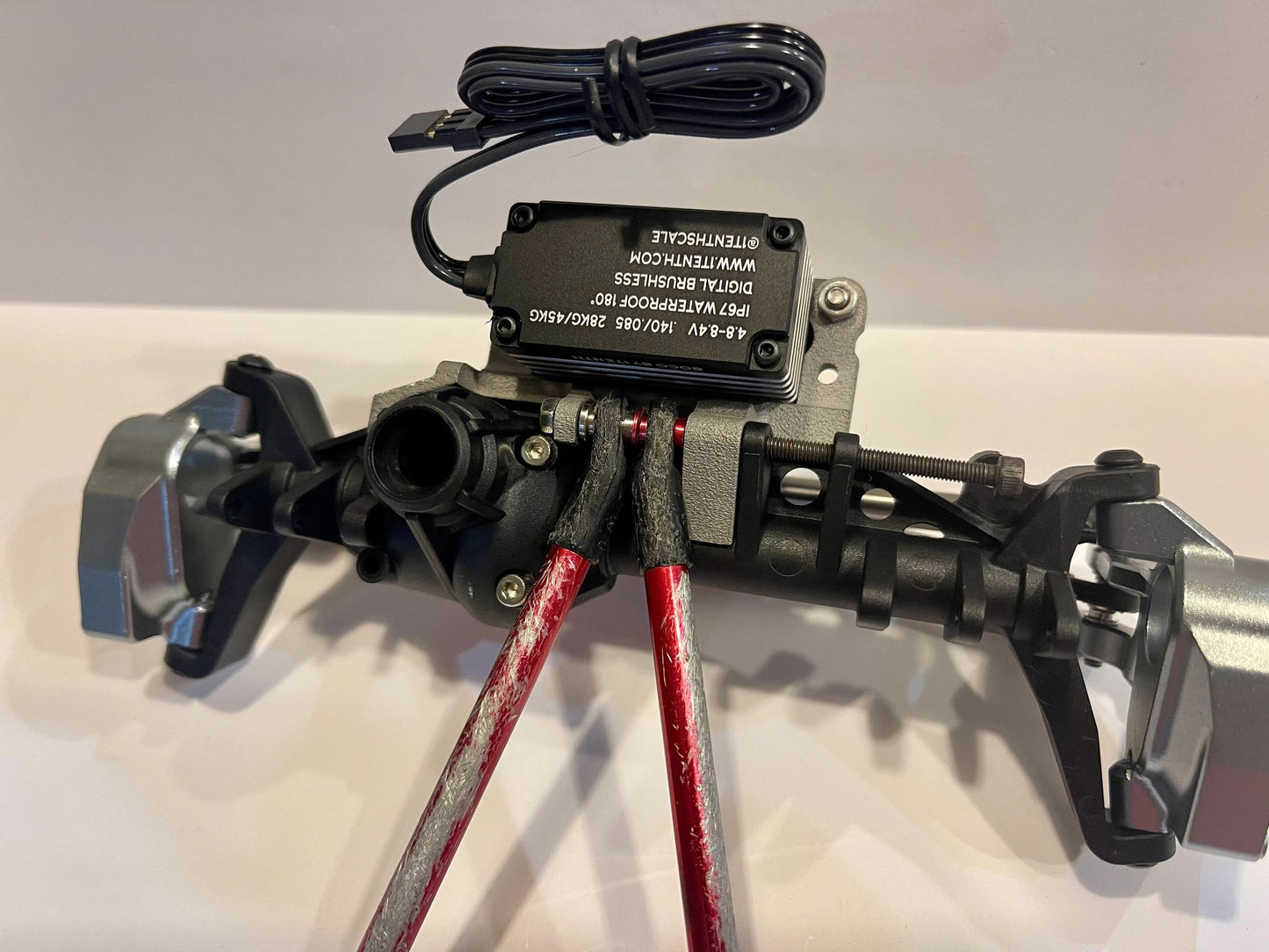

INSTALLATION NOTES Tight fit at the rear of the pumpkin for the centered link option — sanding 0.5–1mm off the pumpkin rib may be needed to clear link nuts. For centered links, angled link ends are strongly recommended. Raised link option may require crafting around upper trans/motor/skid clearance.
MATERIAL & CONSTRUCTION
Material: 316L stainless steel
Manufacturing: DMLS or SLS additive
Finish: Flat semi granular
Weight: ~40g
Dimensions
L-20mm
W-67mm
H-42mm
WHAT'S IN THE BOX - SOA & 4-link adapter - Mounting hardware
WARRANTY Buy Once Cry Once Lifetime warranty against cracks or breaks.
